JAC 18t Truck-Mounted Crane (8 t Lifting)
On-board lifting and cargo transport for construction sites, rescue work and equipment handling
JAC 18t Truck-Mounted Crane (8 t Lifting)

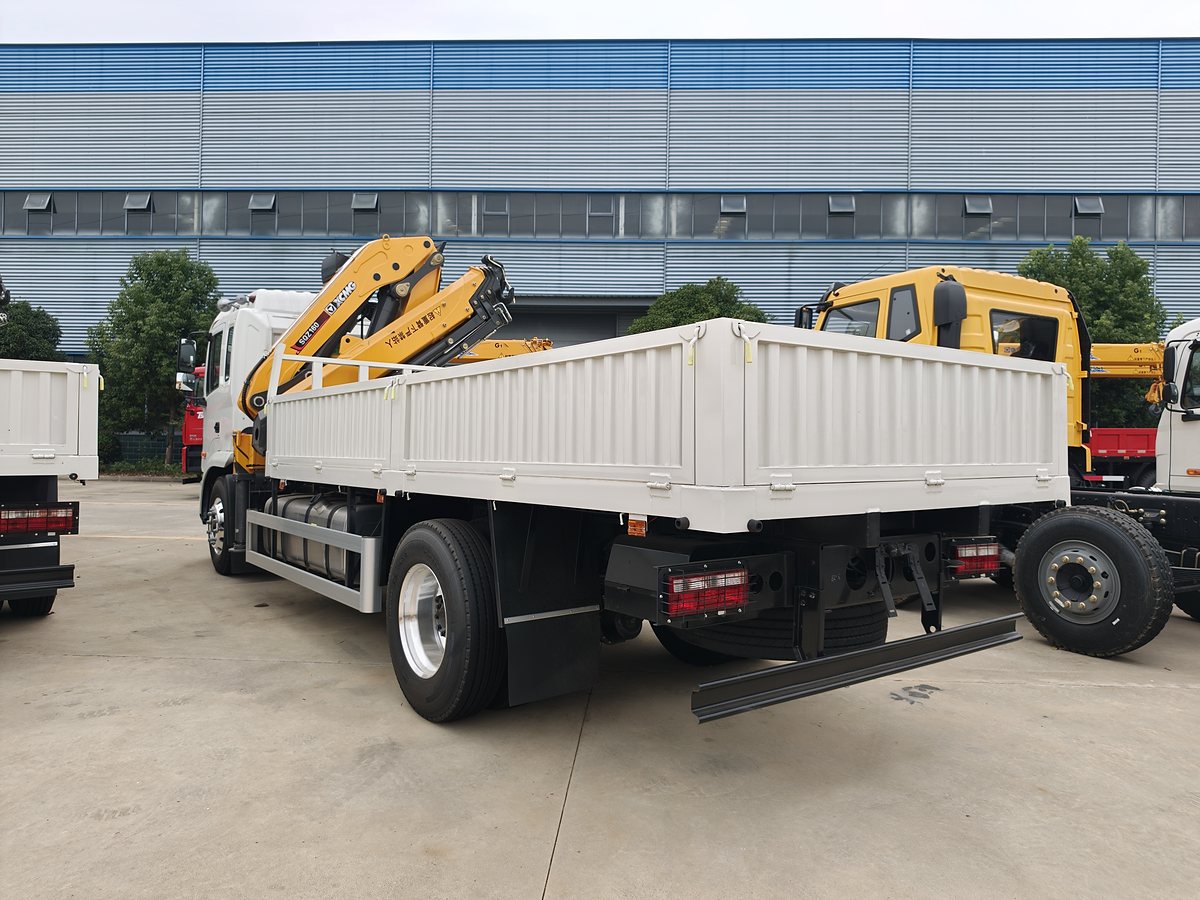

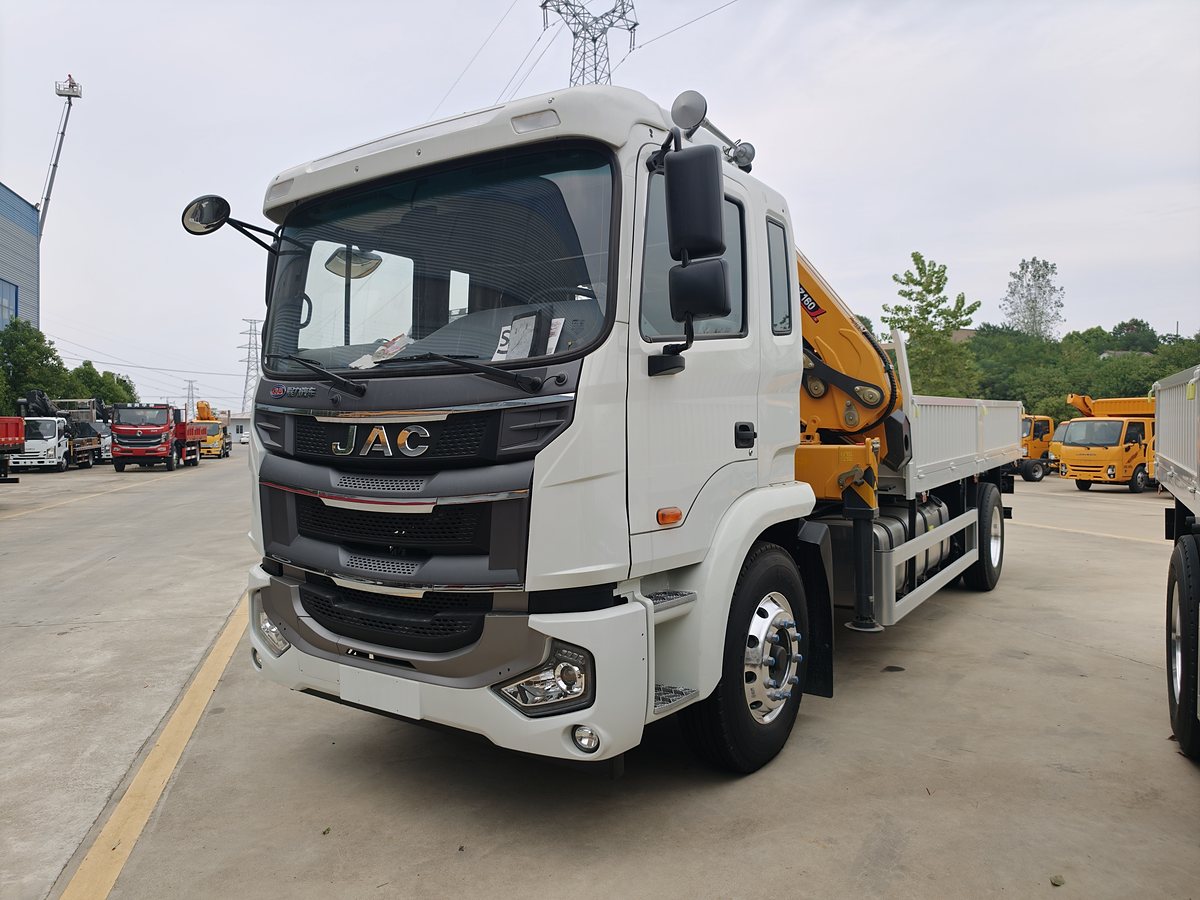

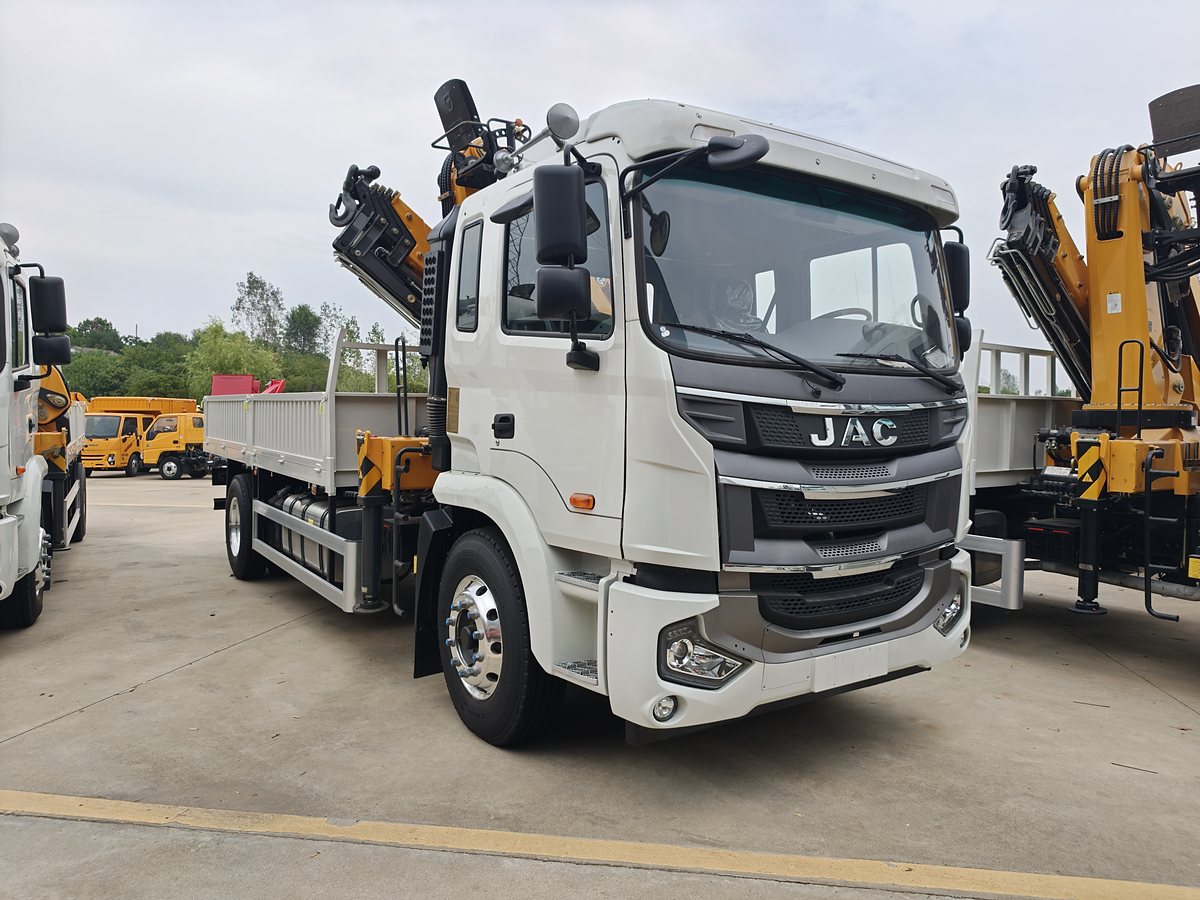

The HFC5181JSQP3K2A50S is an 18-tonne truck-mounted crane on a JAC HFC5181XXYP3K2A50S box van truck chassis with 2 axles and 6 tyres, at an 18,000 kg gross vehicle weight and 9,000 × 2,550 × 3,800 mm overall dimensions. A range of straight-boom cranes (SQS157, SPS16000, QYS-6.3, URV634, ST170, SQS200, SPS20000, URV804, ST220) and knuckle-boom cranes (SPK15500, SPK23500) can be specified: the 6,300 kg lifting capacity versions give a 10,300 kg kerb weight and the 8,000 kg versions 11,200 kg, with kerb weight varying by no more than 3% between options. The cargo body measures 5,700 – 6,150 × 2,460 × 600 mm. Side and rear under-run guards are bolted, the rear guard sitting at 435 mm ground clearance in 120 × 70 mm section. High- or mid-mounted crane operator seats, knuckle-boom cranes and a no-rear-outrigger build are available, and the vehicle is fitted with a speed limiter set to 89 km/h.
Specifications
Vehicle Announcement Data
| Model | HFC5181JSQP3K2A50S |
|---|---|
| Product Name | Truck-mounted crane |
| Product Brand | JAC |
| Announcement Batch | Batch No. 368 |
| Gross Vehicle Weight | 18,000 kg |
| Kerb Weight | 10,300 / 11,200 kg |
| Rated Payload | 6,605 / 6,670 / 7,505 / 7,570 kg (depending on the crane fitted) |
| Overall Dimensions | 9,000×2,550×3,800 mm |

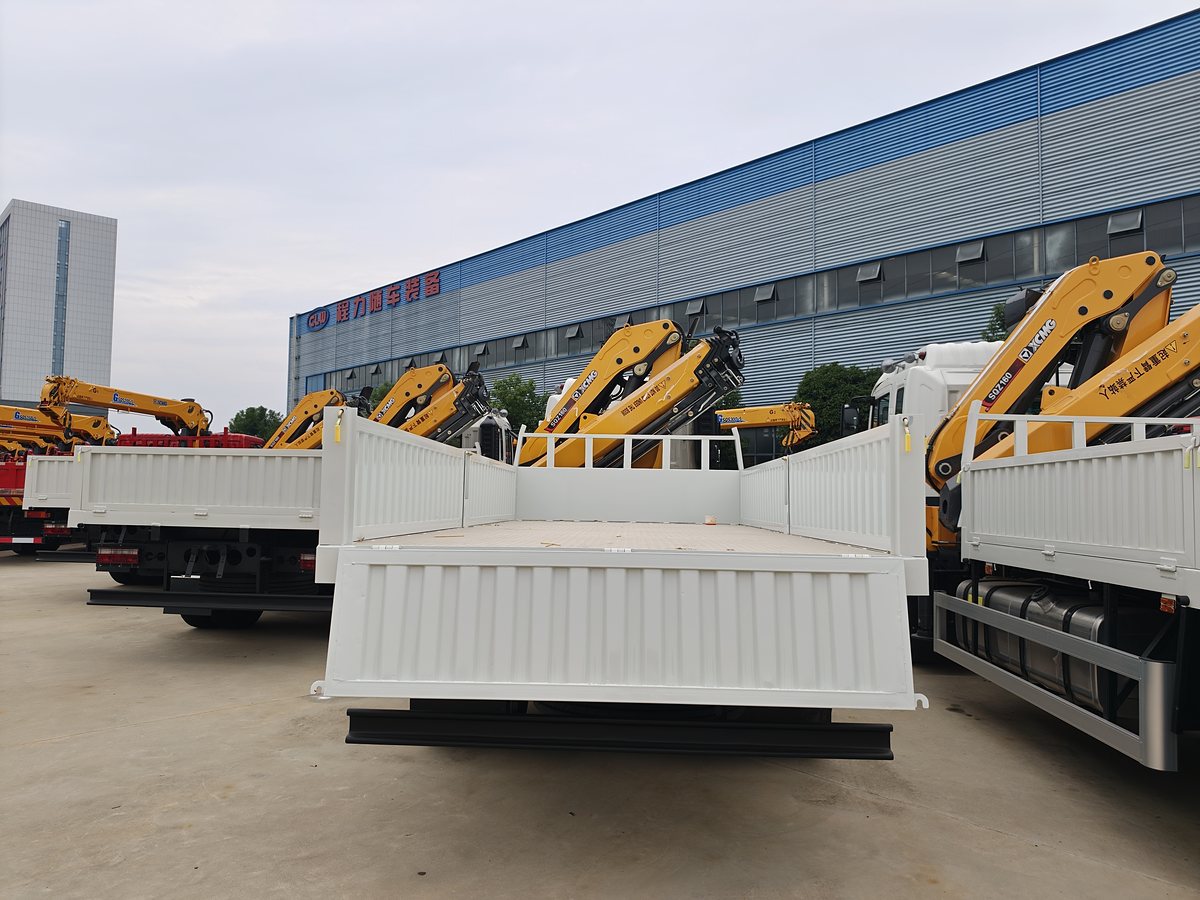

| Cargo Body Dimensions | 5,700 / 5,850 / 6,000 / 6,100 / 6,150×2,460×600 mm |
| Cab Seating Capacity | 3 / 2 persons |
| Approach / Departure Angle | 18° / 10° |
| Front / Rear Overhang | 1,400 / 2,600 mm |
| Axle Load | 6,500 / 11,500 kg |
| Max. Speed | 89 km/h |
Crane & Superstructure
| Main Special Equipment | Truck-mounted crane (straight-boom or knuckle-boom) |
|---|---|
| Straight-Boom Cranes (6,300 kg Lifting) | SQS157 / SPS16000 / QYS-6.3 / URV634 / ST170 (crane weight 3,500 kg, kerb weight 10,300 kg) |
| Straight-Boom Cranes (8,000 kg Lifting) | SQS200 / SPS20000 / URV804 / ST220 (crane weight 4,000 kg, kerb weight 11,200 kg) |
| Knuckle-Boom Cranes (6,300 kg Lifting) | SPK15500 (crane weight 3,500 kg, kerb weight 10,300 kg) |
| Knuckle-Boom Cranes (8,000 kg Lifting) | SPK23500 (crane weight 4,000 kg, kerb weight 11,200 kg) |
| Crane Configuration Notes | Kerb weight varies by no more than 3% between crane options |

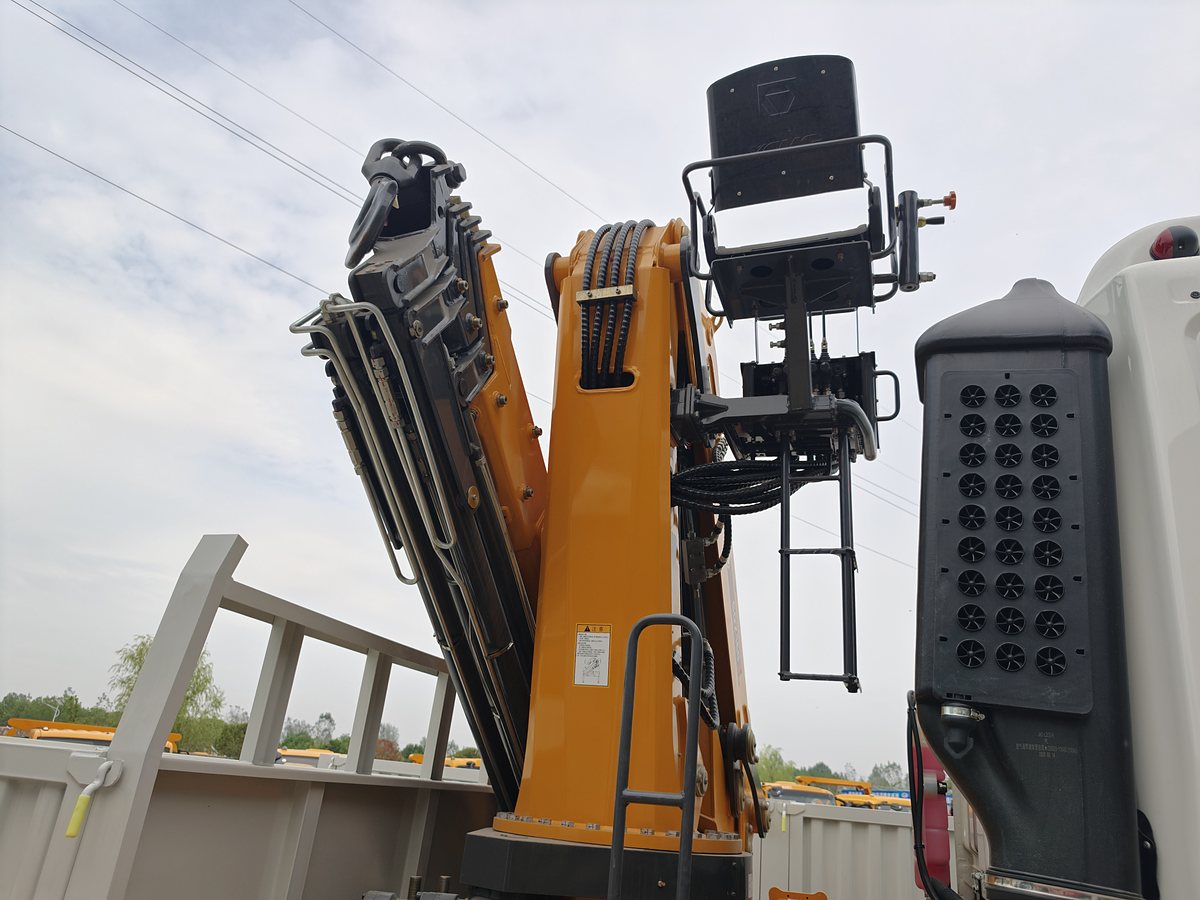

| Operator Seat | Optional high-mounted or mid-mounted crane operator seat |
| Rear Outrigger | Optional no-rear-outrigger build |

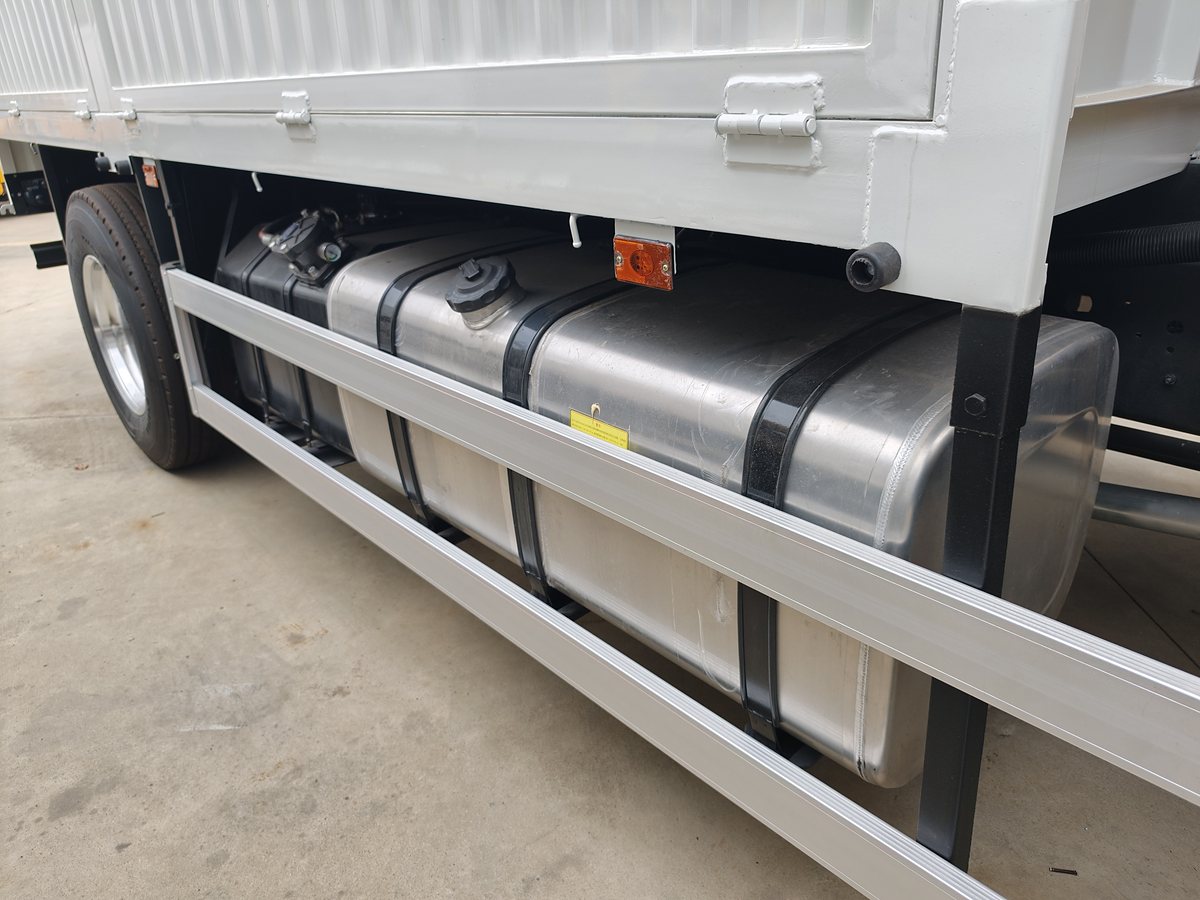

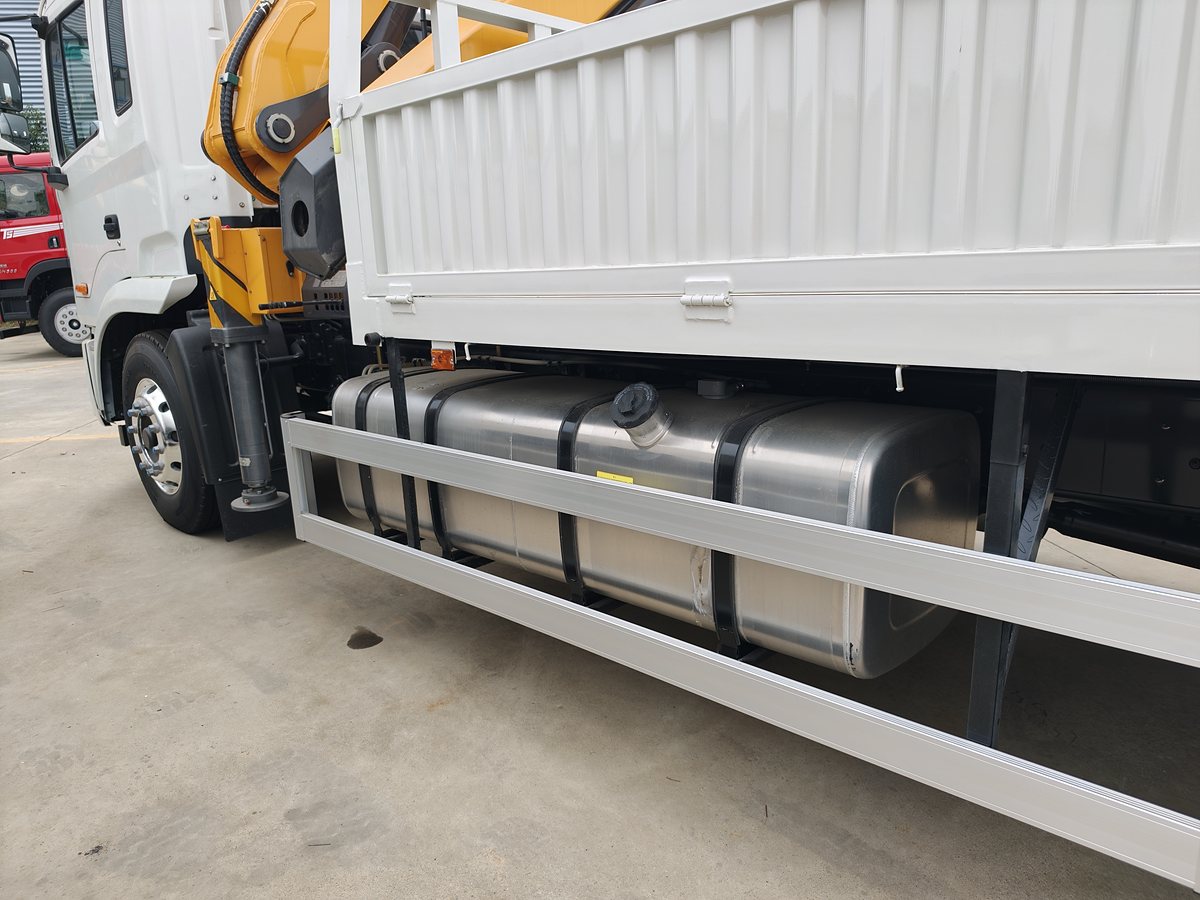

| Guards | Side and rear under-run guards bolted; side guard of Q235A steel, rear lower guard of QSTE650 steel; rear guard 435 mm ground clearance, 120 × 70 mm in section |
| Driving Devices | Satellite-positioning tachograph fitted; optional ETC on-board unit; speed limiter fitted (limited to 89 km/h) |
| ABS System | VIE ABS-II (Zhejiang Wan'an Technology Co., Ltd.) ; CM4XL-4S/4M (Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.) |
Chassis Configuration
| Chassis Model | HFC5181XXYP3K2A50S |
|---|---|
| Chassis Designation | Box van truck chassis |
| Chassis Brand | JAC |
| Chassis Manufacturer | Anhui Jianghuai Automobile Group Co., Ltd. |
| Axles / Tyres | 2 axles / 6 tyres |
| Wheelbase (chassis options) | 4,500 / 5,000 / 5,300 mm |
| Tyre Size | 10.00R20 18PR |
| Leaf Spring Count | 9/9+7, 3/9+7, 3/4+3, 3/9+3, 9/9+3, 9/4+3, 2/4+3, 2/9+3, 2/9+7 |
| Front / Rear Track | 1,860 / 1,890 / 1,920 / 1,930 mm; 1,800 / 1,830 / 1,860 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
Engine
| Optional Engines (4 models) | YCS04200-68, D45TCIF1, YCS06245-60A, B4.0NS6B195 |
|---|---|
| Displacement Range | 4,000 – 6,234 ml |
| Max. Power Range | 143 – 180 kW |
| Fuel Consumption | 23.9 L/100km (YCS04200-68) |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
