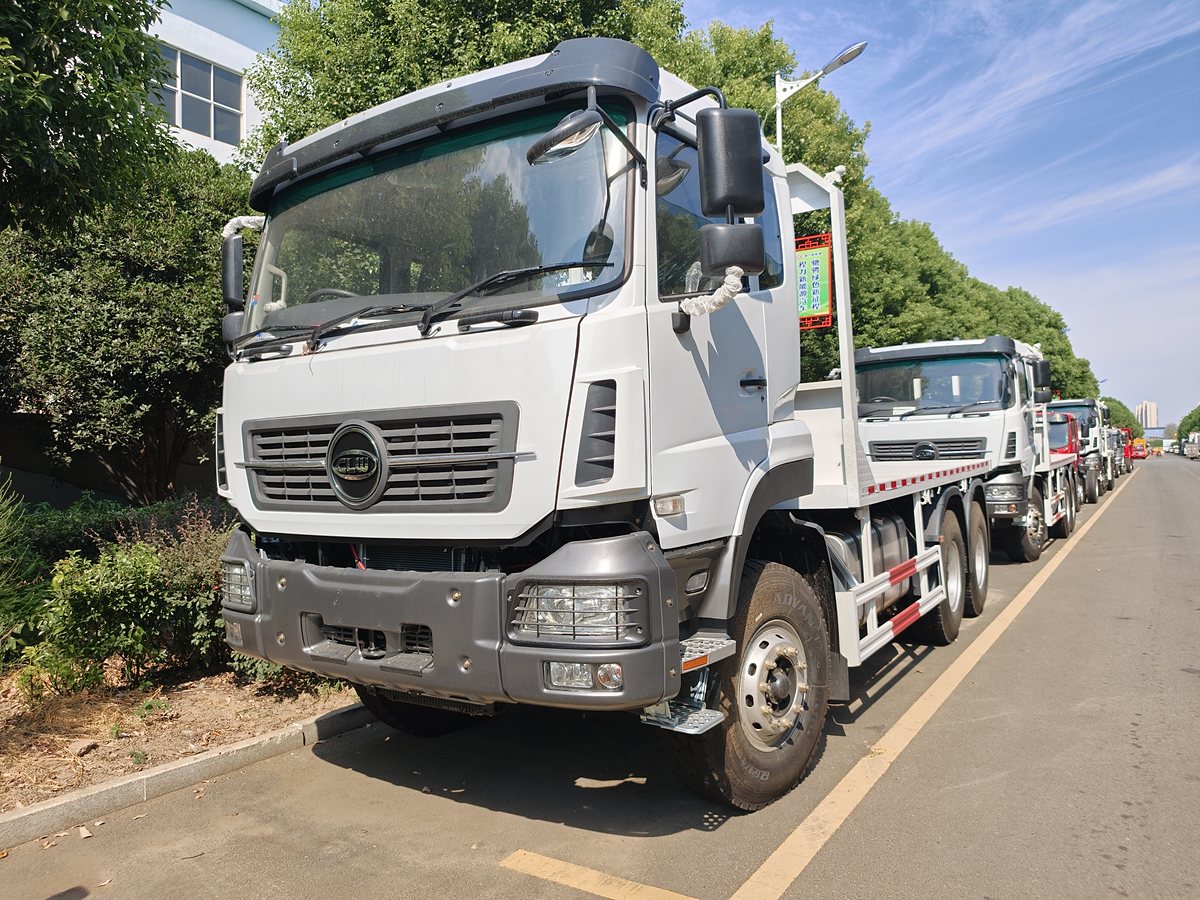

CHENGLI 24.7t Flatbed Transport Truck with Ramps
Flat-deck transport of large indivisible loads, with loading ramps for self-loading
CHENGLI 24.7t Flatbed Transport Truck with Ramps

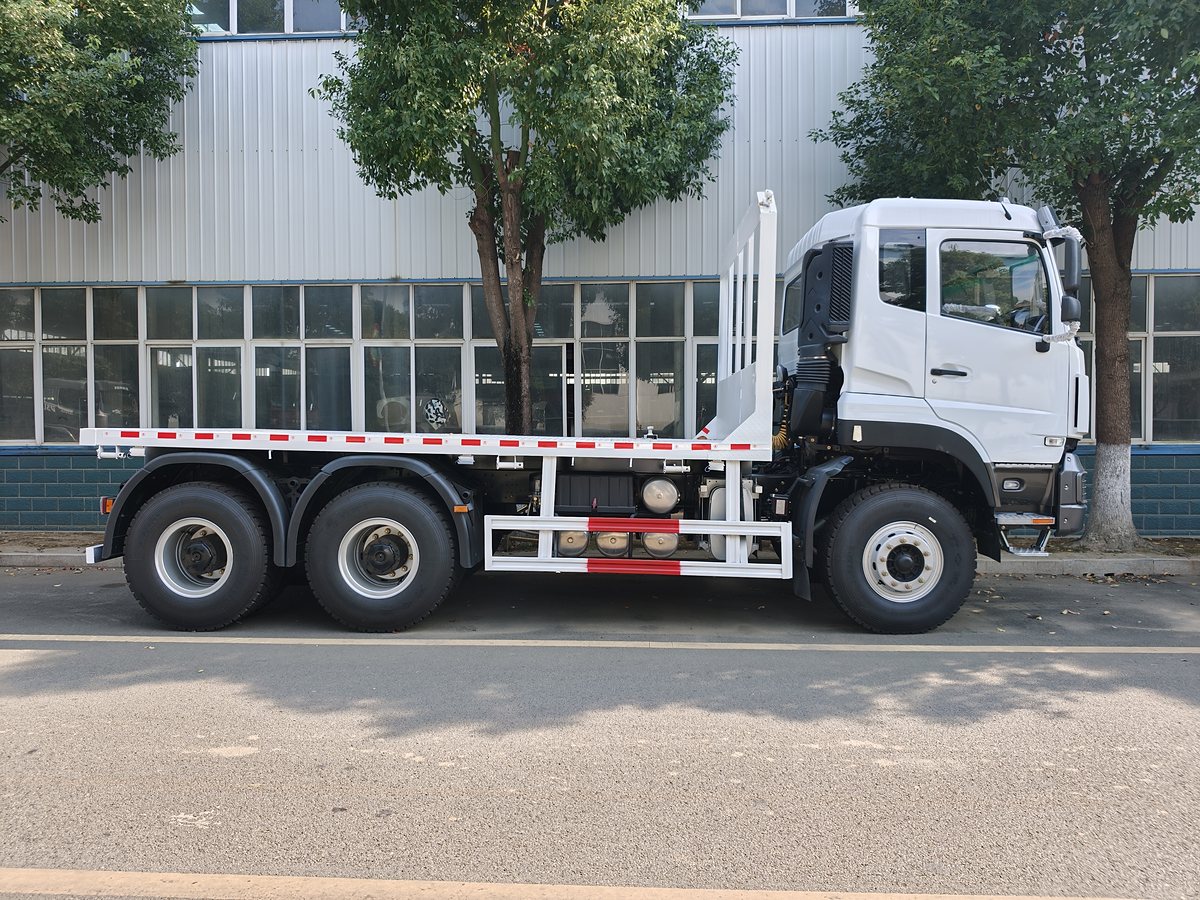

The CL5250TPBA6 flatbed transport truck uses a CHENGLI-built 3-axle chassis with a 24,700 kg GVW and a flat deck equipped with loading ramps so that excavators, generators and other heavy equipment can drive on and off under their own power. Rated payload is 12,225 – 13,120 kg depending on the deck length selected; body lengths from 10,000 to 12,000 mm are offered. Deck thickness, ramp type (manual or hydraulic), winch, lashing points and RHD are configurable for the destination market.
Specifications
Vehicle Announcement Data
| Model | CL5250TPBA6 |
|---|---|
| Announcement Batch | Batch No. 386 |
| Product Brand | CHENGLI |
| Product Name | Flatbed transport truck |
| Gross Vehicle Weight | 24,700 kg |
| Kerb Weight | 11,450 / 12,280 kg |
| Rated Payload | 13,055 / 13,120 / 12,225 / 12,290 kg |
| Cab Seating Capacity | 2 / 3 persons |
| Overall Dimensions (L × W × H) | 10,000 / 10,030 / 10,050 / 10,200 / 10,300 / 12,000 × 2,500 / 2,550 × 3,060 / 3,320 / 3,950 mm |
| Approach / Departure Angle | 22° / 8°、22° / 9°、22° / 10°、22° / 11° |
| Front / Rear Overhang | 1,450 / 3,000～3,430；1,400 / 3,000～3,480（mm） |
| Axle Load | 6,700 / 18,000 (tandem axle group) kg |
| Max. Speed | 90 km/h |
| Vehicle Length Correlation | 10,030=1,450+(3,800+1,350)+3,430, 10,300=1,450+(4,350+1,350)+3,150, 10,300=1,450+(4,350+1,300)+3,200, 10,300=1,450+(4,550+1,350)+2,950, 12,000=1,450+(5,800+1,350)+3,400, 10,200=1,400+(4,350+1,350)+3,100, 10,200=1,450+(4,350+1,350)+3,050, 10,050=1,400+(4,350+1,300)+3,000, 10,050=1,450+(4,350+1,300)+2,950, 10,000=1,400+(4,200+1,350)+3,050, 10,000=1,450+(4,200+1,350)+3,000 (length=front overhang+wheelbase+rear overhang，mm) |
Superstructure & Special Equipment
| Superstructure Type | Flatbed deck with loading ramps |
|---|---|
| Loading Ramps | 170 mm horizontal length when stowed |
| Rear Options | Optionalwithoutloading rampsequipment superstructure, Optionalrampappearance |
| Side Guard | Q235 steel, welded |

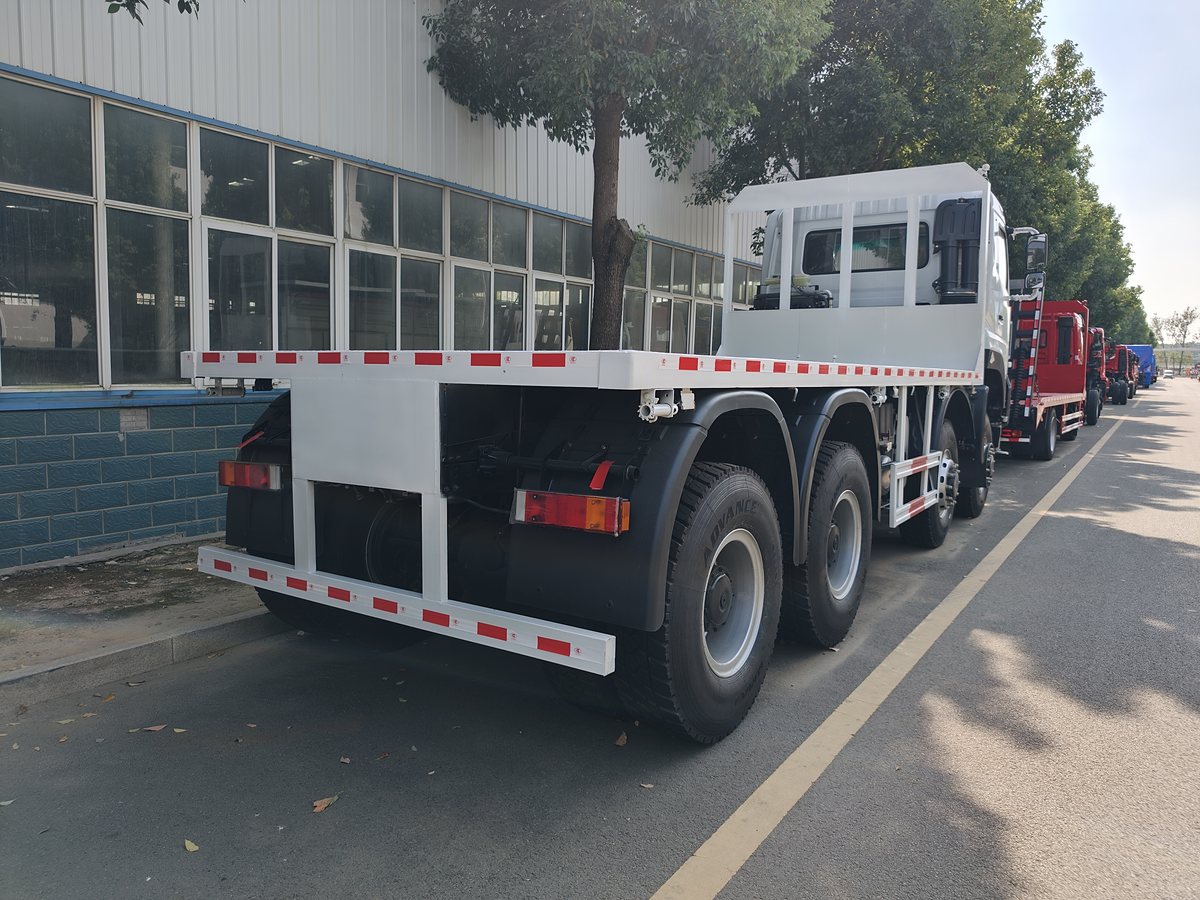

| Rear Under-Run Guard | Q235 steel, welded，dimensions 130 × 50 mm，height above ground 480 mm |
| On-Board Equipment | Fitted withGNSS tachograph, direct-supply ETC on-board unit |
Chassis Configuration
| Chassis Model | CL1250LDJ6 |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | CHENGLI |
| Chassis Manufacturer | Chengli Automobile Group Co., Ltd. |
| Axles / Tyres | 3 axles / 10 tyres |
| Wheelbase (optional) | 3,800+1,300 / 3,800+1,350 / 4,200+1,350 / 4,350+1,300 / 4,350+1,350 / 4,550+1,350 / 5,350+1,350 / 5,800+1,350 mm |
| Tyre Size | 10.00-20 18PR、11.00-20 16PR、11.00R20 16PR、11.00R20 18PR、12R22.5 14 / 14PR / 16 / 16PR / 18 / 18PR |
| Leaf Spring Count | 8/10、9/10 |
| Front / Rear Track | 1,950 / 2,040 mm；1,860/1,860、1,880/1,880 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
| ABS System | CM4XL-4S/4M (Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.) |
| Cab & Options | with chassisoptionalhigh-roofcab, headlamp and mask, roof deflector, sun visor, bumper, tail lamp；optionalfuel tank, battery, AdBlue tank, air reservoirleft / rightmounting position |
Engine
| Optional Engines (3 models) | Weichai WP7.300E61, Yuchai YCS06270-60, Yunnei D67TCIF16 |
|---|---|
| Displacement Range | 6,234 ～ 7,470 ml |
| Max. Power Range | 199 ～ 220 kW |
| Net Power / Fuel Consumption | WP7.300E61: net power 215 kW, fuel consumption 31.5 L/100km；YCS06270-60: 195 kW, 30.97 L/100km；D67TCIF16: 210 kW, 31.98 L/100km |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
