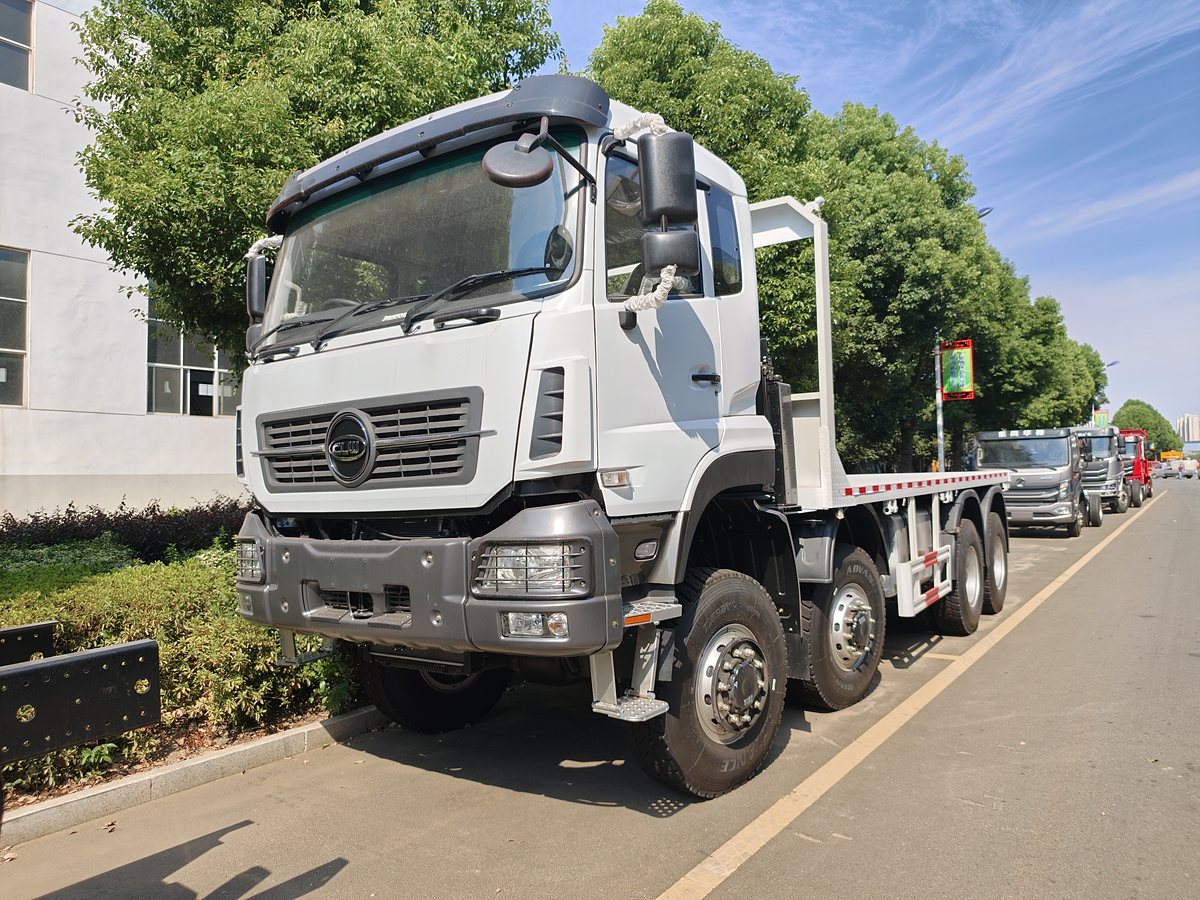

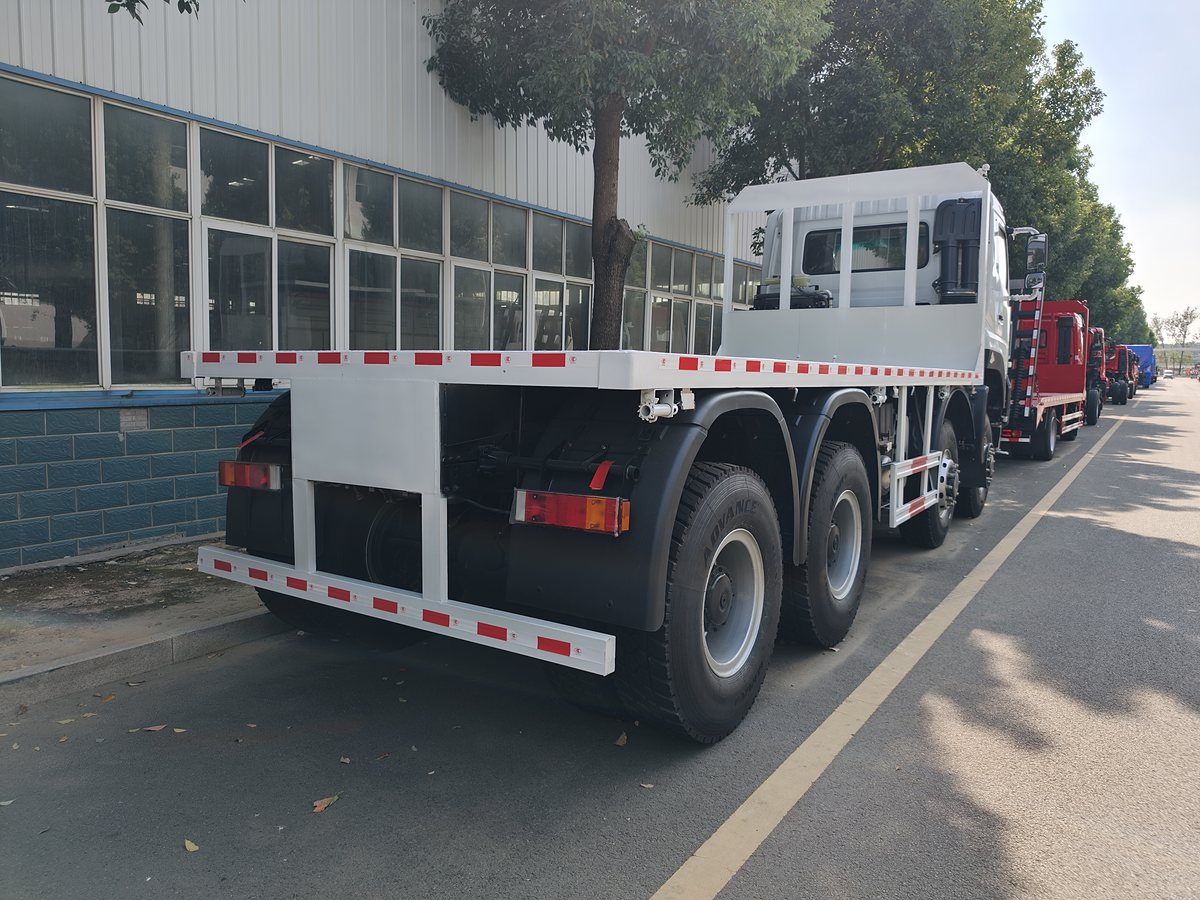

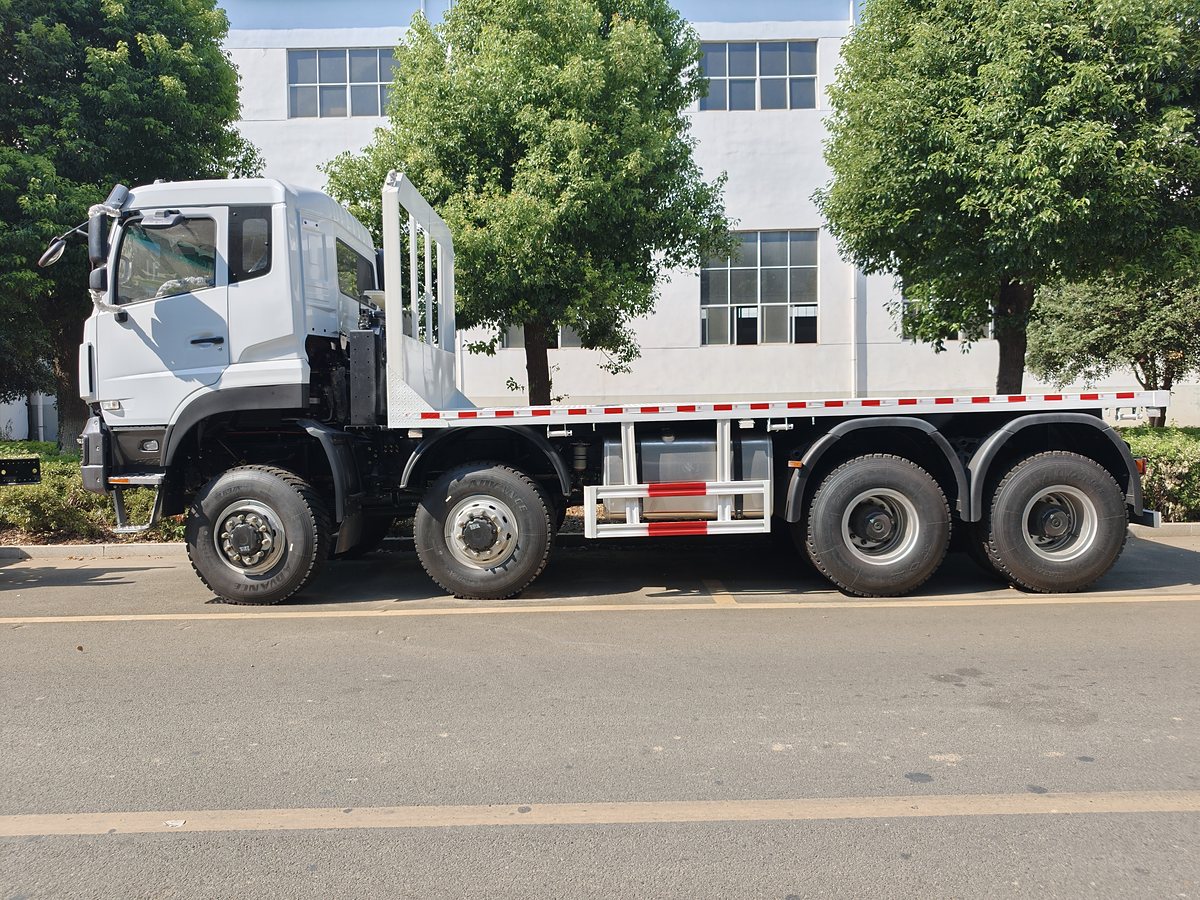

CHENGLI 31t Flatbed Transport Truck with Ramps
Flat-deck transport of large indivisible loads, with loading ramps for self-loading
CHENGLI 31t Flatbed Transport Truck with Ramps
The CL5310TPBA6 is the 4-axle, 31-tonne version of our flatbed carrier, built for heavier plant and machinery. GVW is 31,000 kg with a rated payload of 16,455 – 17,370 kg, and deck lengths of 10,200 / 11,000 / 12,000 mm are available. The flat deck is fitted with loading ramps that fold to a 170 mm horizontal length in the stowed position. Heavy-duty deck plate, hydraulic ramps, winch and local-market lighting packages can be specified on order.
Specifications
Vehicle Announcement Data
| Model | CL5310TPBA6 |
|---|---|
| Announcement Batch | Batch No. 408 |
| Product Brand | CHENGLI |
| Product Name | Flatbed transport truck |
| Gross Vehicle Weight | 31,000 kg |
| Kerb Weight | 13,500 / 14,350 kg |
| Rated Payload | 17,305 / 16,455 / 17,370 / 16,520 kg |
| Cab Seating Capacity | 2 / 3 persons |
| Overall Dimensions (L × W × H) | 10,200 / 11,000 / 12,000 × 2,500 / 2,550 × 3,320 / 3,330 / 3,950 mm |
| Approach / Departure Angle | 20° / 9°, 20° / 10°, 20° / 11°, 20° / 12° |
| Front / Rear Overhang | 1,450 / 2,750, 1,450 / 2,350, 1,450 / 2,950, 1,450 / 2,550 (mm) |
| Axle Load | 6,500 / 6,500 / 18,000 (tandem axle group) kg |
| Max. Speed | 90 km/h |
| Vehicle Length Correlation | 10,200=1,450+(1,850+2,800+1,350)+2,750, 10,200=1,450+(1,850+3,200+1,350)+2,350, 11,000=1,450+(1,850+3,400+1,350)+2,950, 11,000=1,450+(1,850+3,600+1,350)+2,750, 11,000=1,450+(1,850+3,800+1,350)+2,550, 12,000=1,450+(1,850+4,600+1,350)+2,750 (length = front overhang + wheelbase + rear overhang, mm) |
Superstructure & Special Equipment
| Superstructure Type | Flatbed deck with loading ramps |
|---|---|
| Loading Ramps | 170 mm horizontal length when stowed |
| Optional | Deck and ramp appearance and selected brand |
| Side & Rear Under-Run Guards | Material Q235, connected by bolting and welding |

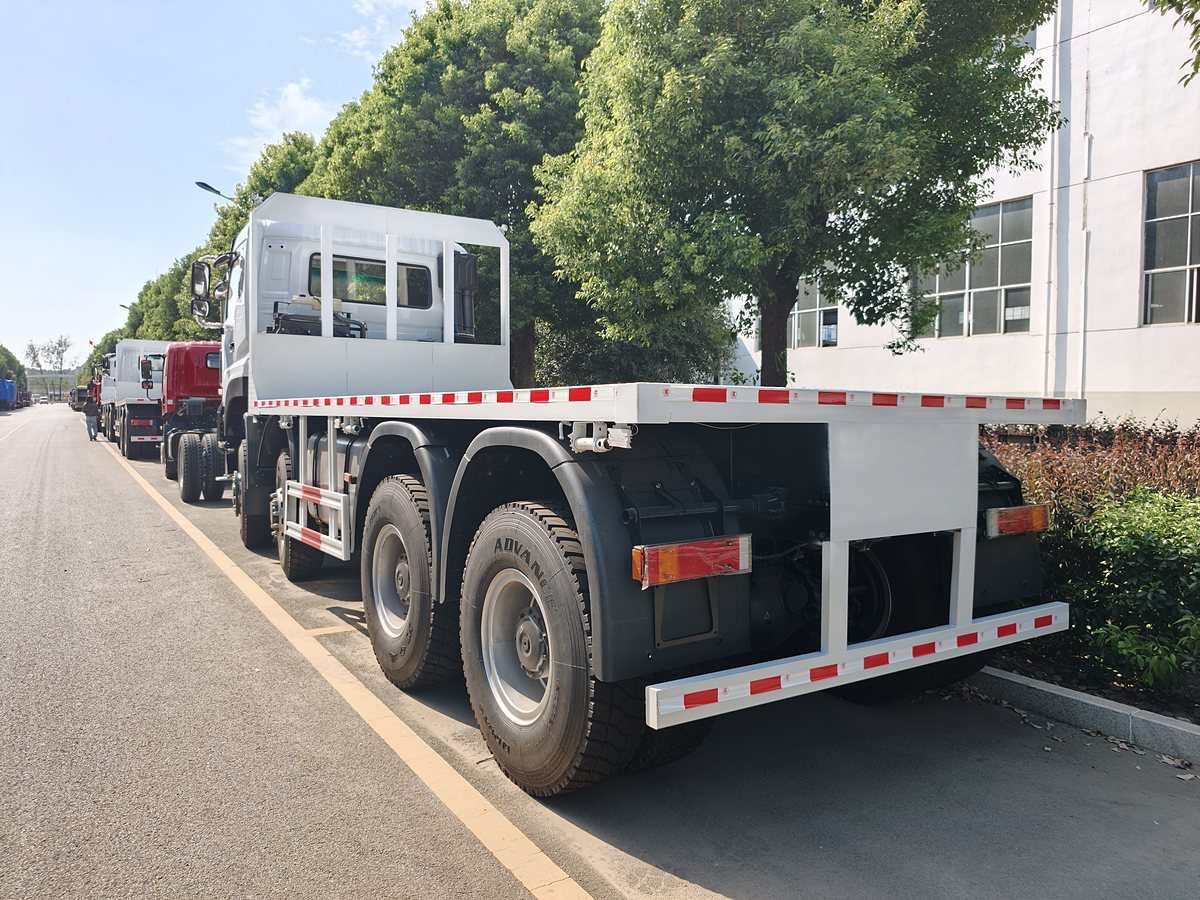

| Rear Under-Run Guard | Dimensions 120 × 60 mm, height above ground 480 mm |
| On-Board Equipment | Fitted withGNSS tachograph |
Chassis Configuration
| Chassis Model | CL1310LDJ6 |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | CHENGLI |
| Chassis Manufacturer | Chengli Automobile Group Co., Ltd. |
| Axles / Tyres | 4 axles / 12 tyres |
| Wheelbase (optional) | 1,850+2,600+1,350 / 1,850+2,800+1,350 / 1,850+2,900+1,350 / 1,850+3,000+1,350 / 1,850+3,200+1,350 / 1,850+3,400+1,350 / 1,850+3,600+1,350 / 1,850+3,800+1,350 / 1,850+4,600+1,350 / 1,850+5,200+1,350 / 1,850+5,800+1,350 / 1,995+4,500+1,350 / 2,150+4,350+1,350 / 2,150+4,500+1,350 / 2,250+4,350+1,350 / 1,700+5,200+1,350 / 1,700+5,800+1,350 mm |
| Tyre Size | 11.00-20 18PR, 11.00R20 18PR, 12.00-20 16PR, 12.00R20 16PR, 12R22.5 14 / 14PR / 16 / 16PR / 18 / 18PR, 295/80R22.5 18PR, 295/60R22.5 18PR, 315/60R22.5 18PR |
| Leaf Spring Count | 9/9/10, 8/8/10, 3/3/4, 9/9/13 |
| Front / Rear Track | 2,040/2,040, 1,950/1,950 mm; 1,860/1,860, 1,880/1,880 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
| ABS System | CM 4XL-4S/4K (4S/4M) (Guangzhou Kemi Automotive Electronic Control Technology Co., Ltd.), CM4XL-4S/4M (Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.) |
| Cab & Options | High-roof cab, headlamps and front mask, roof deflector, sun visor and tail lamps optional with the chassis; optional left/right mounting positions for the fuel tank, battery, AdBlue tank and air reservoir |
Engine
| Optional Engines (7 models) | Weichai WP7.300E61, WP8.350E61, WP10H400E62, WP7H300E62, WP8.350E62; Yuchai YCK08350-60; Dongfeng Cummins L9NS6B400 |
|---|---|
| Displacement Range | 6,800 – 9,500 ml |
| Max. Power Range | 220 – 294 kW |
| Net Power / Fuel Consumption | WP7.300E61: net power 215 kW, 37.31; YCK08350-60: 253 kW, 31.36; WP10H400E62: 289 kW, 37.02 (L/100km, by engine model) |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
