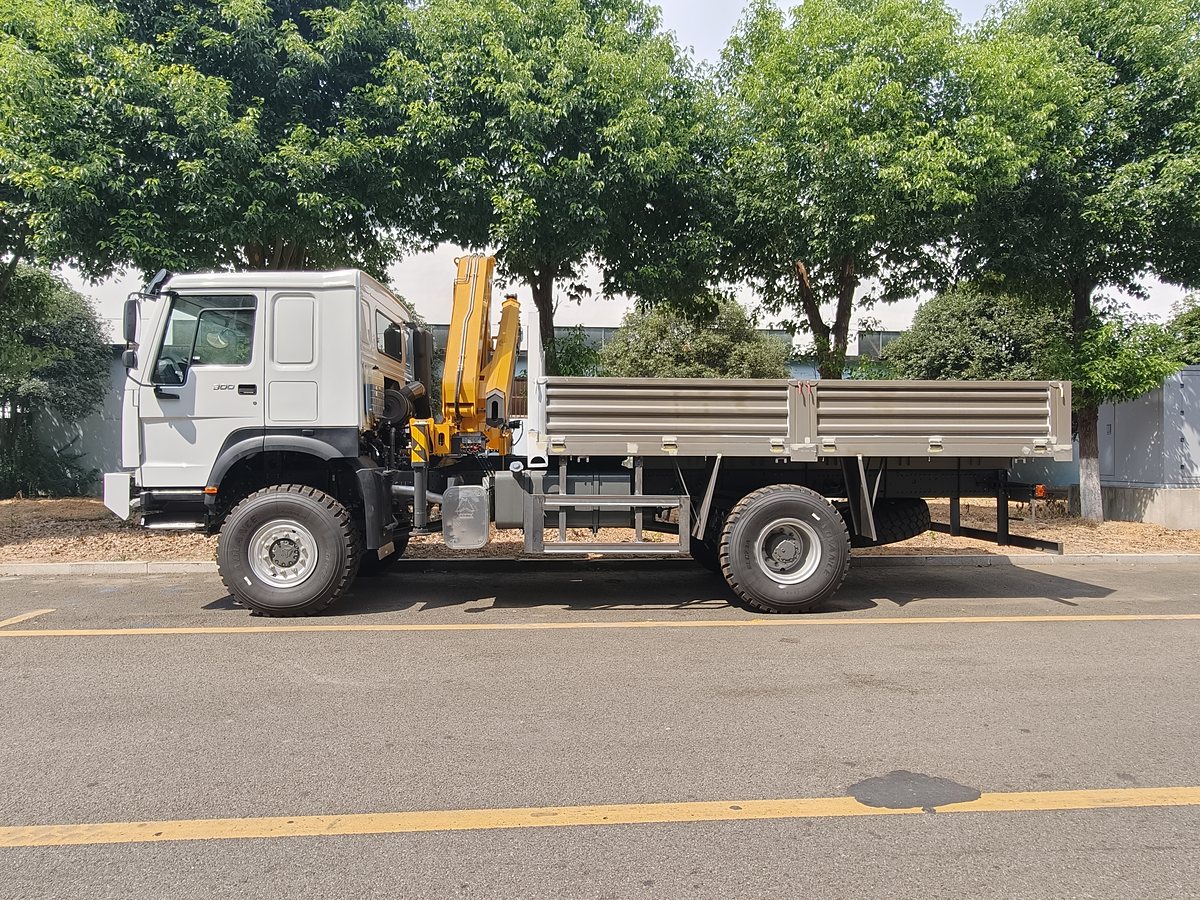

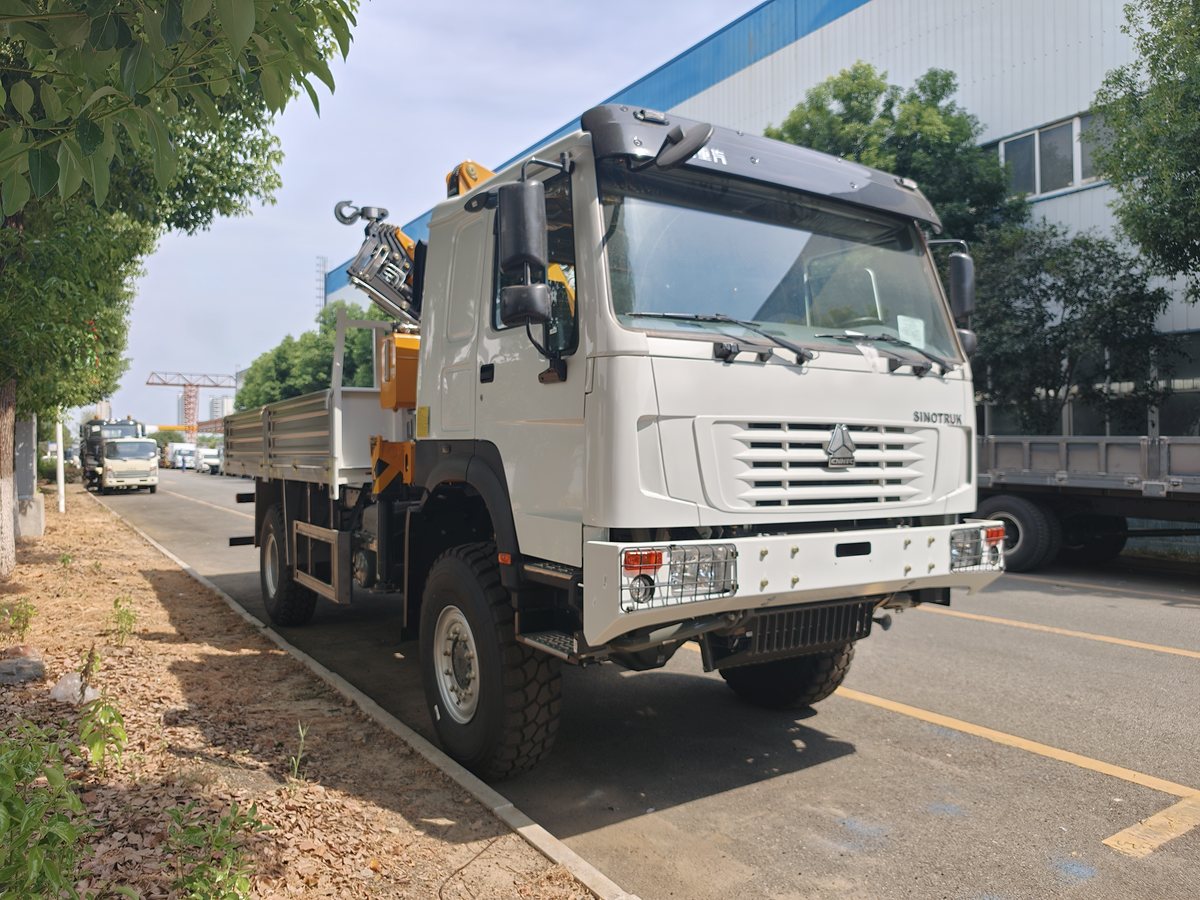

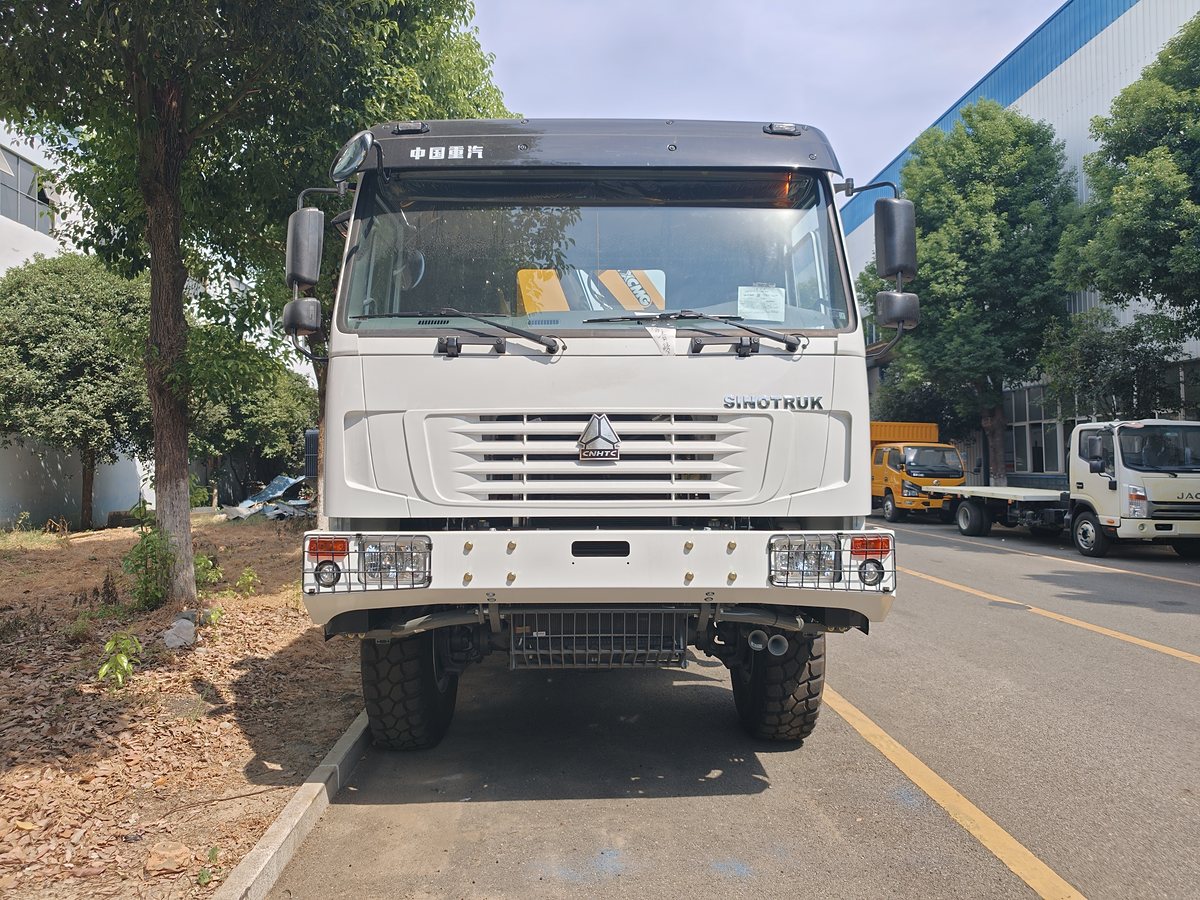

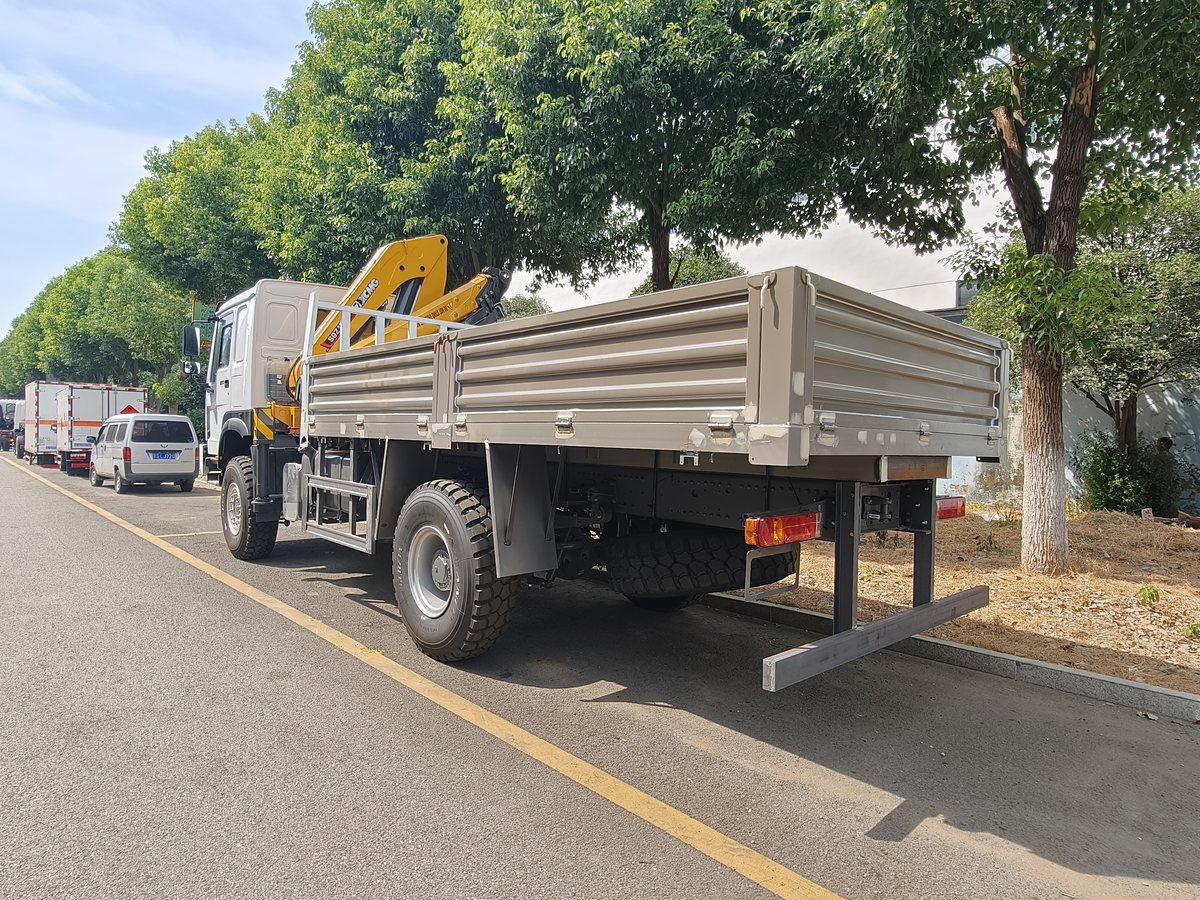

HOWO 18t Truck-Mounted Crane (8 t Lifting)
On-board lifting and cargo transport for construction rescue, material handling and equipment transfer
HOWO 18t Truck-Mounted Crane (8 t Lifting)
The CLW5189JSQ6SZ is an 18-tonne crane truck on a HOWO chassis fitted with a standard SQ8.0SA5 crane (8,000 kg maximum lifting capacity) and a cargo body up to 6,200 mm long. It suits building material yards, machinery movers and utility contractors who need lifting capability without dispatching a separate mobile crane. Rated payload is 5,715 – 6,370 kg by configuration. Optional knuckle-boom cranes, longer bodies, toolboxes and right-hand drive are available for export orders.
Specifications
Vehicle Announcement Data
| Model | CLW5189JSQ6SZ |
|---|---|
| Product Name | Truck-mounted crane |
| Product Brand | CHENGLIWEI |
| Announcement Batch | Batch No. 382 |
| Gross Vehicle Weight | 18,000 kg |
| Kerb Weight | 11,500 / 12,090 kg |
| Rated Payload | 5,715 / 5,780 / 6,305 / 6,370 kg |
| Overall Dimensions | 9,000×2,500 / 2,550×3,750 / 3,850 mm |

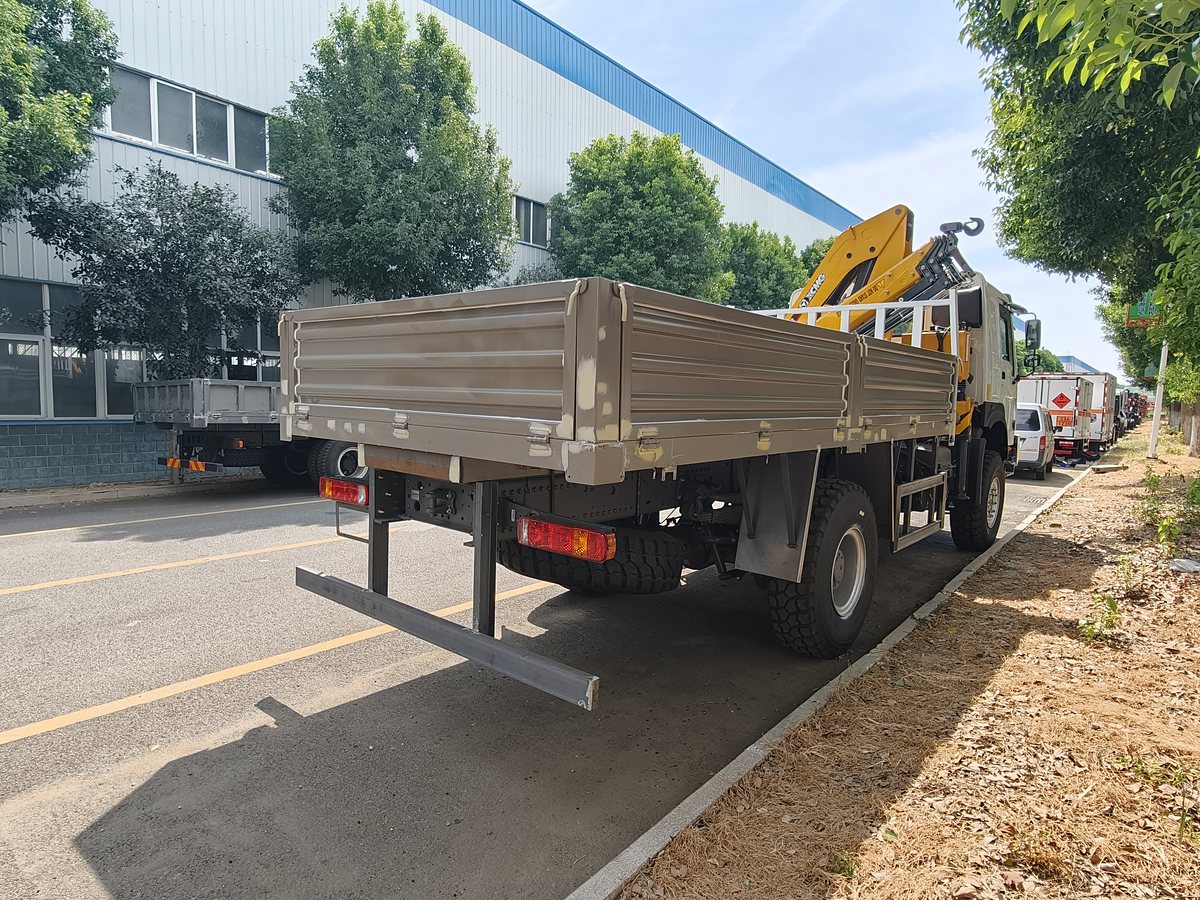

| Cargo Body Dimensions | 5,000 – 6,200×2,400 / 2,450×550 / 600 mm |
| Axle Load | 6,500 / 11,500 kg |
| Max. Speed | 89 km/h |
| Cab Seating Capacity | 2 / 3 persons |
| Approach / Departure Angle | 17° / 12° |
| Front / Rear Overhang | 1,550 / 2,350 mm |
Chassis Configuration
| Chassis Model | ZZ1187K511JF1 |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | HOWO |
| Chassis Manufacturer | Sinotruk Jining Commercial Vehicle Co., Ltd. |
| Wheelbase | 5,100 mm (3,800 – 6,000 mm available from the announcement) |
| Axles / Tyres | 2 axles / 6 tyres |
| Tyre Size | 10.00R20 18PR, 11R22.5 18PR, 12R22.5 18PR, 295/80R22.5 18PR and more |
| Leaf Spring Count | 3/4, 3/5, 3/9+6, 4/5, 9/9+6 and more |
| Front Track | 1,956 / 1,996 / 2,022 / 2,058 mm |
| Rear Track | 1,800 / 1,830 / 1,860 mm |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 China VI |
| Braking System | ABS model 446 004 6300, WABCO Automotive Control Systems (China) Co., Ltd. |
Crane & Superstructure
| Special Equipment | Cargo box and crane (for lifting and carrying goods) |
|---|---|
| Standard Crane | SQ8.0SA5 (crane weight 3,850 kg, max. lifting capacity 8,000 kg) |
| Max. Lifting Capacity | 8,000 kg (7,000 kg when ZLT1750 is specified) |
| Optional Crane | HST8, S200, SQS200, SQS200-6, URV804, URG804 / URG805 / URG806, ZLT2000, JSQ200, CLSQ200-4 and more |
| Optional Knuckle-Boom Crane | SQZ160 (max. lifting capacity 8,000 kg, crane weight 3,850 kg) |
| Guards | Side and rear guards in Q235, welded; rear guard section 80 × 120 mm, ground clearance 440 mm |
| Modified Wheelbase | Built on the 5,100 mm wheelbase |
| Optional Configuration | Direct-supply ETC, GNSS tachograph, body panel structure, cargo body style, crane style, mid- or high-mounted crane seat (seat optional), rear outrigger shape, radiator shape, rear tool box, etc. |
Engine
| Optional Engines | MC07.25-61, MC07.27-61, MC07.29-61, MC05H.24-61, MC05H.26-61, MC05H.28-61, WP4.6NQ240E62, WP5NQ245E62, WP5H280E62, WP5H300E62, WP7S270E62, WP7S300E62 (12 models in all) |
|---|---|
| Displacement | 4,580 – 6,870 ml |
| Power Range | 176 – 221 kW |
| Fuel Consumption | Announcement fuel consumption (for WP4.6NQ220E61) 26.73 L/100km |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
