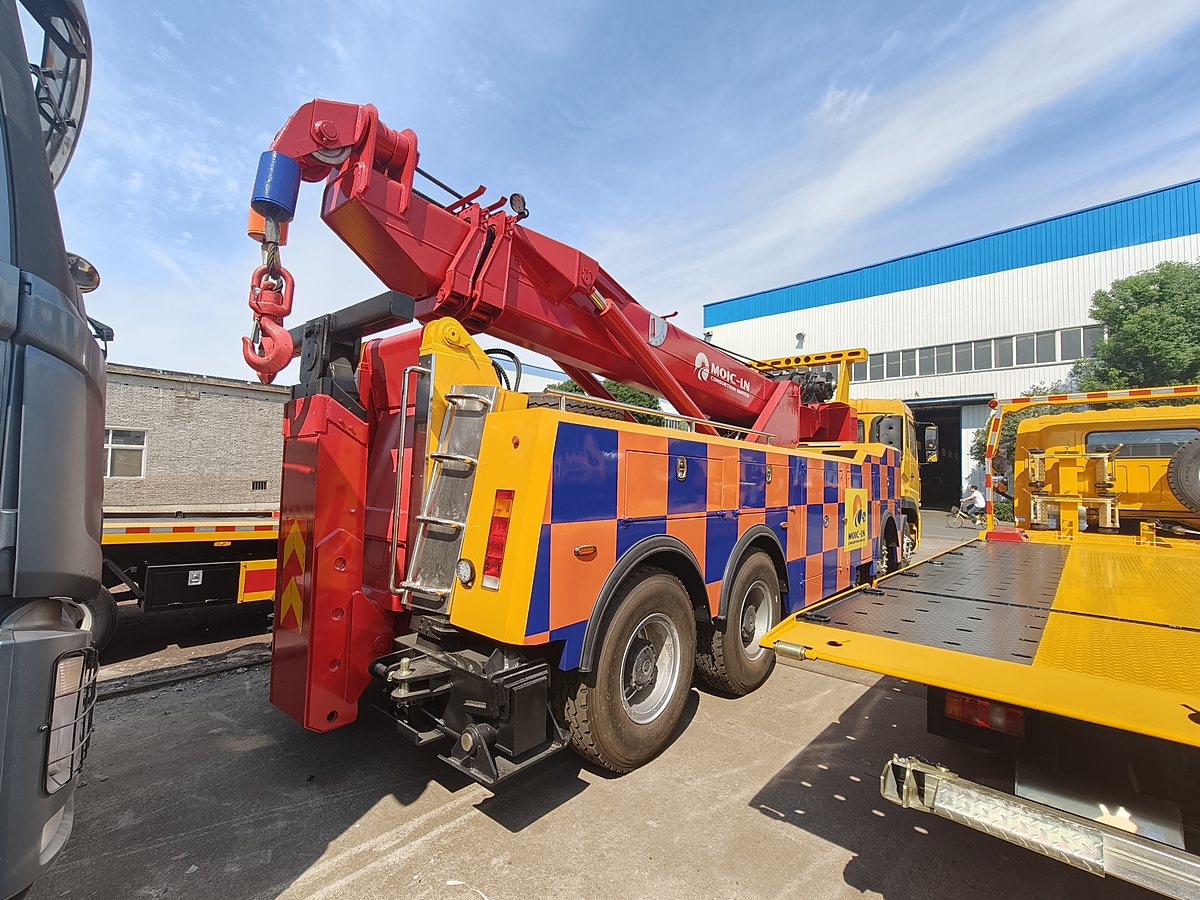

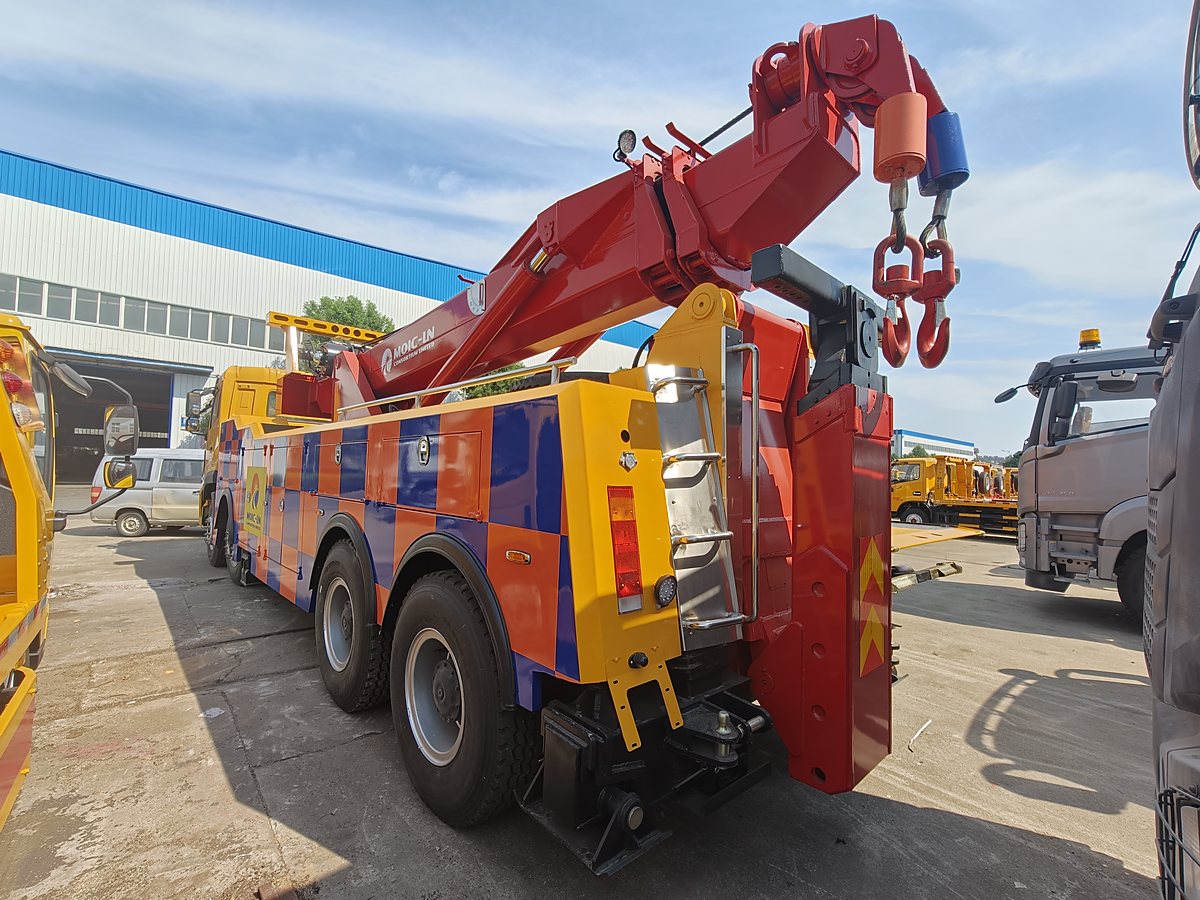

HOWO 31t Wrecker / Recovery Truck
Road clearance and accident recovery — under-lift towing of heavy disabled vehicles
HOWO 31t Wrecker / Recovery Truck
The CLW5310TQZZ6 heavy wrecker is built on a HOWO 4-axle, 12-tyre chassis with a 31,000 kg GVW and a maximum under-lift capacity of 5,570 kg. It targets highway authorities and heavy-fleet operators who need to recover loaded trucks and buses. Overall length ranges from 11,220 to 11,800 mm depending on the deck and boom configuration. Hydraulic winch capacity, boom sections, outrigger spread and warning equipment can be tailored to local recovery practice.
Specifications
Vehicle Announcement Data
| Model | CLW5310TQZZ6 |
|---|---|
| Announcement Batch | Batch No. 391 |
| Product Brand | CHENGLIWEI |
| Product Name | Wrecker (recovery truck) |
| Gross Vehicle Weight | 31,000 kg |
| Kerb Weight | 27,820 / 25,300 kg |
| Cab Seating Capacity | 2 / 3 persons |
| Overall Dimensions (L × W × H) | 11,575 / 11,600 / 11,775 / 11,800 / 11,220 / 11,320 × 2,550 × 3,200 / 3,600 / 3,550 / 3,500 / 3,480 mm |
| Length / Wheelbase / Front Overhang / Rear Overhang Correlation | 11,575 / 1,950+4,625+1,350 / 1,500 / 2,150; 11,600 / 1,950+4,600+1,400 / 1,500 / 2,150; 11,775 / 2,150+4,625+1,350 / 1,500 / 2,150; 11,800 / 2,150+4,600+1,400 / 1,500 / 2,150; 11,220 / 1,950+4,625+1,350 / 1,500 / 1,795; 11,320 / 1,950+4,625+1,350 / 1,500 / 1,895 (mm) |
| Approach / Departure Angle | 17° / 24°, 17° / 15°, 17° / 14° |
| Axle Load | 6,500 / 7,000 / 8,750 / 8,750, 7,000 / 6,500 / 8,750 / 8,750 kg |
| Max. Speed | 89 / 80 / 101 km/h |
Recovery Equipment
| Main Special Equipment | Under-lift |
|---|---|
| Application | Road recovery vehicles |
| Under-Lift Capacity (kerb weight 27,820 kg) | 3,050 / 2,985 kg (for a cab seating 2 / 3 persons) |
| Under-Lift Capacity (kerb weight 25,300 kg) | 5,570 / 5,505 kg (for a cab seating 2 / 3 persons) |
| Body Side | Skirt structure |
| Rear Guard | Replaced by the special equipment; the special equipment has 490 mm ground clearance |
Chassis Configuration
| Chassis Model | ZZ1317V4667F1 |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | HOWO |
| Chassis Manufacturer | Sinotruk Chengdu Wangpai Commercial Vehicle Co., Ltd. |
| Axles / Tyres | 4 axles / 12 tyres |
| Wheelbase (chassis options) | 1,950+4,625+1,350 / 1,950+4,600+1,400 / 2,150+4,625+1,350 / 2,150+4,600+1,400 / 1,950+3,825+1,350 mm |
| Tyre Size | 11.00R20 18PR, 12.00R20 18PR, 12R22.5 18PR, 295/80R22.5 18PR, 315/80R22.5 18PR |
| Leaf Spring Count | 11/11/12, 4/4/12, 11/11/-, 4/4/-, 11/11/14 |
| Front / Rear Track | 2,022/2,022, 2,041/2,041 mm; 1,860/1,860 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
| ABS System | 4460046300 (ZF (Shanghai) Management Co., Ltd.) / ABS-E (ZF Commercial Vehicle Systems (Qingdao) Co., Ltd.) |
| Cab | Cab optional with chassis |
Options & Speed Limiter
| Speed Limiter | Optional, max. speed 80 or 89 km/h |
|---|---|
| Optional Items | Vehicle appearance, cab, front panel and front lamp appearance, cab decals and lettering, mirrors and mirror housings, front mudguards, after-treatment guard, front under-run guard appearance, steps, body-coloured front panel and bumper, rear anti-roll bar, camera appearance and more |
Engine
| Optional Engines (11 models) | Sinotruk MC11.44-60 / MC11.40-60 / MC11.36-60 / MC11.46-61; Weichai WP10H400E62, WP10.5H430E62, WP10.5H460E62, WP13.480E62, WP13.510E62, WP9H350E62, WP12.460E62 |
|---|---|
| Displacement Range | 8,800 – 12,540 ml |
| Max. Power Range | 257 – 375 kW |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
