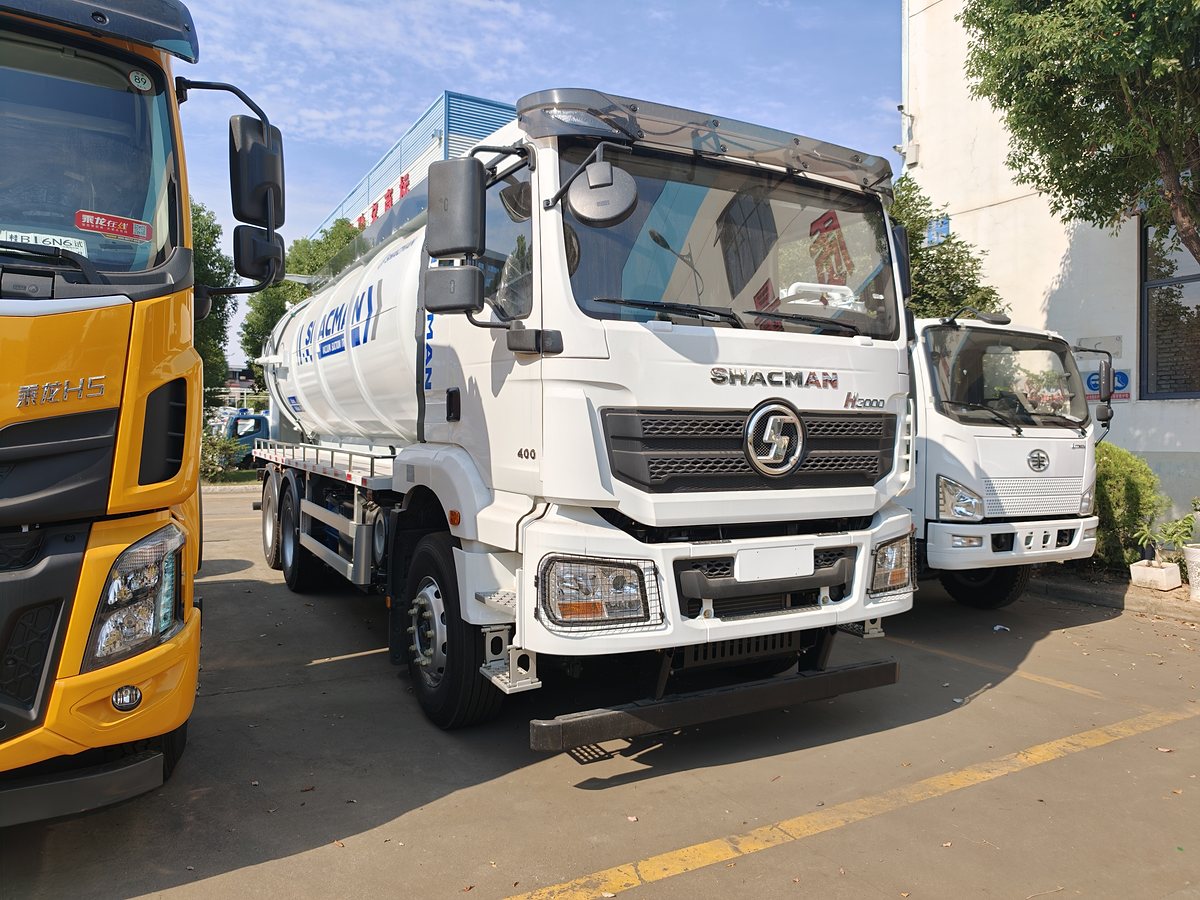

SHACMAN 25t Sewer Jetting & Vacuum Truck
Power take-off and vacuum pump for suction; high-pressure water pump and hose for jetting
SHACMAN 25t Sewer Jetting & Vacuum Truck
The CLW5251GQWS6 uses a SHACMAN 3-axle chassis at 25,000 kg GVW, with an 8.19 m³ clean-water tank and a 10.23 m³ sewage tank. A power take-off drives the vacuum pump for suction work, while a high-pressure water pump and hose reel handle pipe jetting; overall dimensions are 10,050 × 2,550 × 3,800 mm with a rated payload of 7,800 kg. This is the configuration most often chosen by municipal sanitation departments and contractors maintaining sewer networks and industrial sumps.
Specifications
Vehicle Announcement Data
| Model | CLW5251GQWS6 |
|---|---|
| Announcement Batch | Batch No. 404 |
| Product Brand | CHENGLIWEI |
| Product Name | Sewer jetting & vacuum truck |
| Gross Vehicle Weight | 25,000 kg |
| Kerb Weight | 17,070 kg |
| Rated Payload | 7,800 kg |
| Tank Volume (sewage tank) | 10.23 m³ |
| Cab Seating Capacity | 2 persons |
| Overall Dimensions (L × W × H) | 10,050 × 2,550 × 3,800 mm |
| Approach / Departure Angle | 16° / 11° |
| Front / Rear Overhang | 1,525 / 2,750 mm |
| Axle Load | 7,000 / 18,000 kg (tandem axle group) |
| Max. Speed | 89 km/h |
Superstructure & Special Equipment

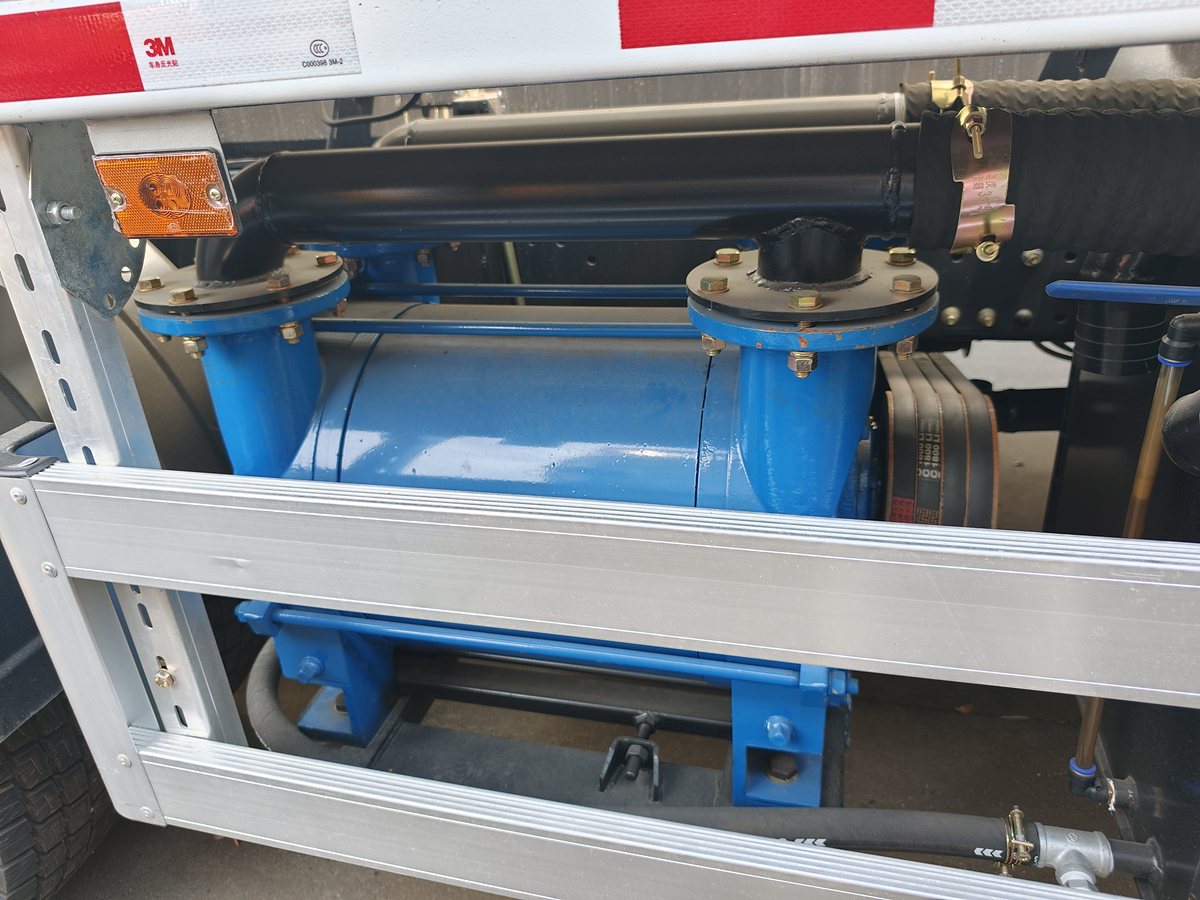

| Application | fitted withpower take-off (PTO), vacuum pumpforsuction；fitted withhigh-pressure water pump, high-pressure hoseforjetting |
|---|---|
| Main Special Equipment | power take-off (PTO), vacuum pump, high-pressure water pump, high-pressure hose |
| Tank Dimensions (straight length × diameter) | 5,800 × 2,100 mm |
| Tank Compartments | tankfront is clean-water tank, rear section is sewage tank |
| Clean Water Tank (straight length × diameter) | 2,500 × 2,100 mm；total capacity 8.19 m³, effective volume 7.80 m³ |
| Sewage Tank (straight length × diameter) | 3,300 × 2,100 mm；total capacity 10.23 m³, effective volume 9.75 m³ |
| Tank Interrelation | clean-water tank and sewage tank is twoindependenttank，andmust not be loaded to capacity at the same time；jettingfunctionwhenusing water tank，suctionfunctionwhenusing sewage tank |

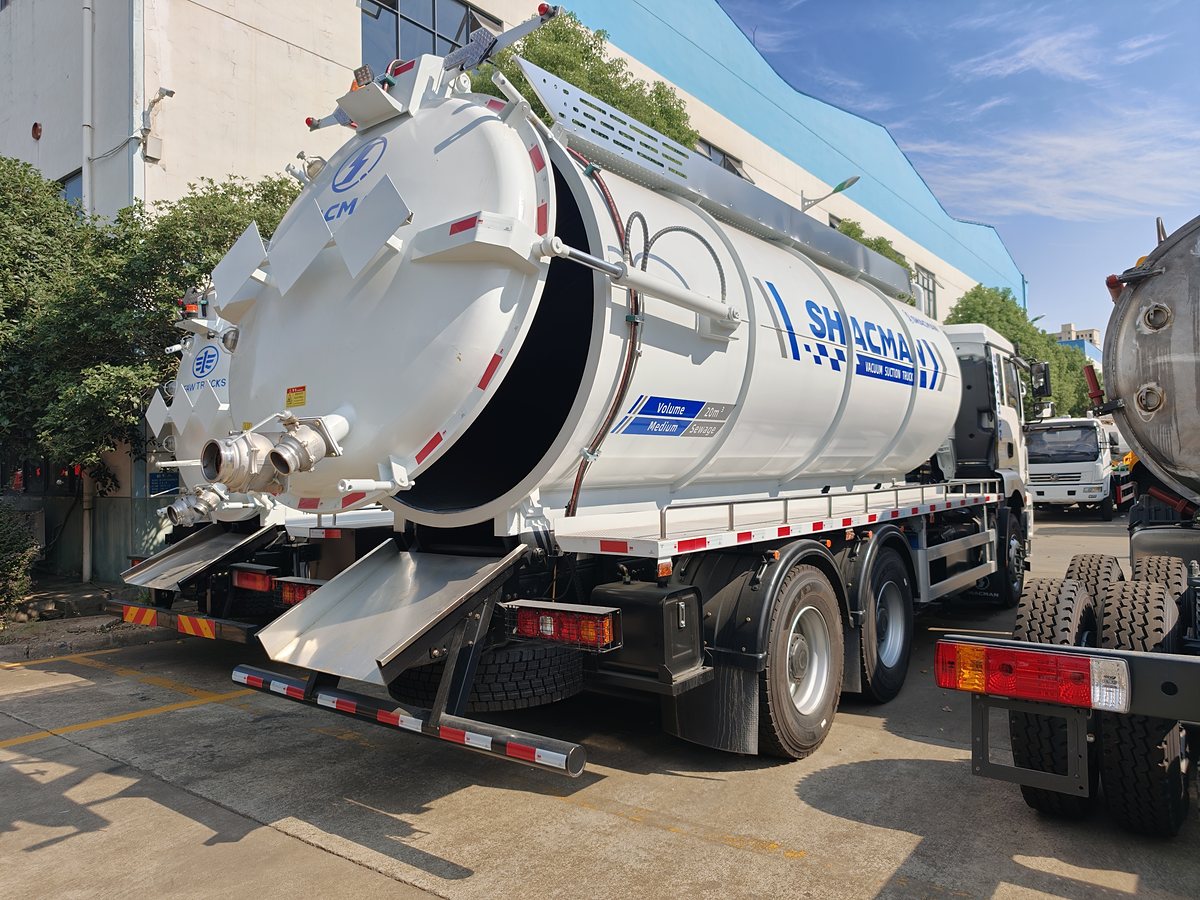

| Tank Tipping | Tank is tippable |

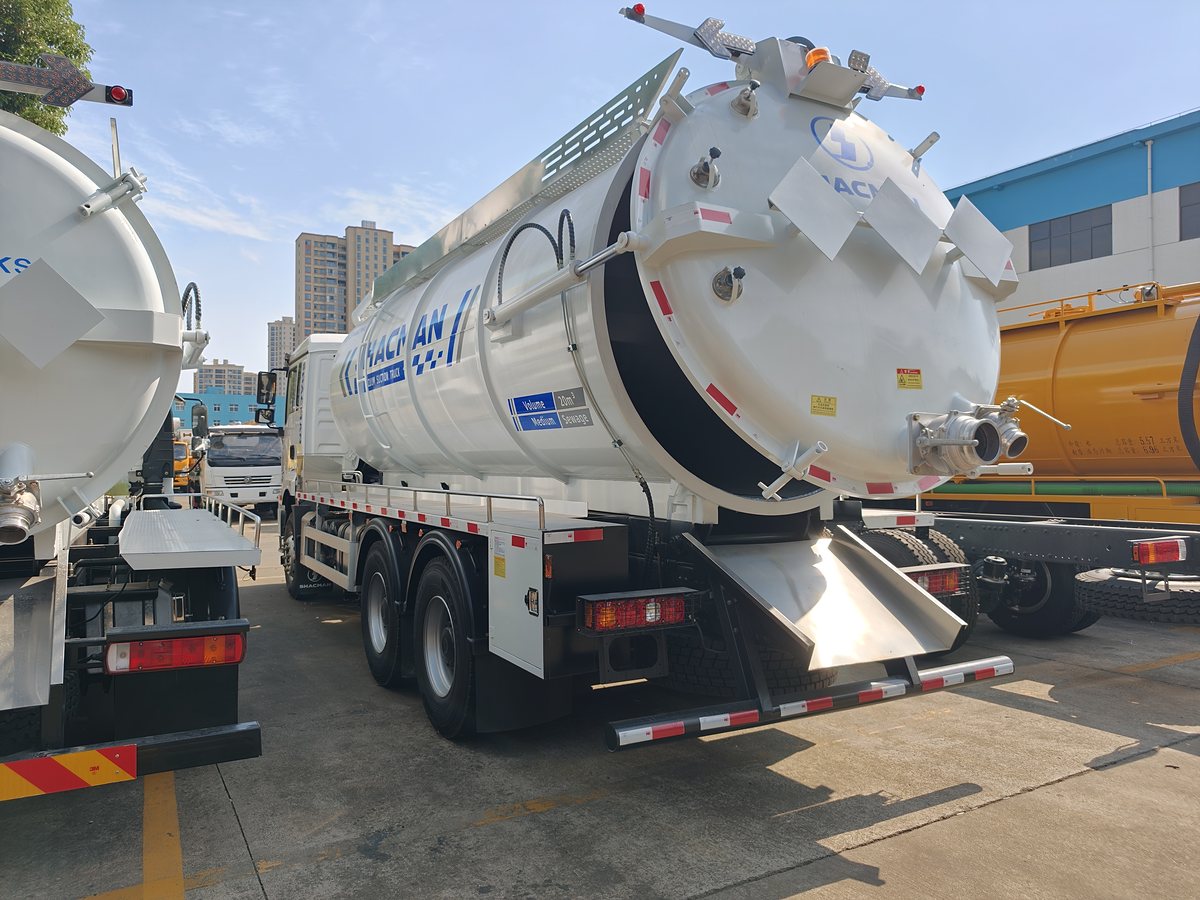

| Side & Rear Guards | Material Q235A carbon steel，both sides and rear under-run guardbothusingwelded connection |
| Rear Guard | section 280 × 50 mm，ground clearance 470 mm |
| Optional | optionalrear sectionhose reelstyle；optionalrear coverhydraulic lockingequipment；Cab optional with chassis |
| ABS System | ZQFB-V (Xi'an Zhengchang Electronics Co., Ltd.) |
Chassis Configuration
| Chassis Model | SX1259MB4F1C |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | SHACMAN |
| Chassis Manufacturer | Shaanxi Automobile Group Co., Ltd. |
| Axles / Tyres | 3 axles / 10 tyres |
| Wheelbase (optional) | 4,375+1,400 / 4,575+1,400 / 5,775+1,400 mm |
| Tyre Size | 11.00R20 18PR、12R22.5 18PR、12.00R20 16PR |
| Leaf Spring Count | 10/12、3/5 |
| Front / Rear Track | 2,011 / 2,036 / 2,070 mm；1,860/1,860 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
Engine
| Optional Engines (10 models) | Weichai WP7.270E61, WP7.300E61, WP8.320E61, WP8.350E61, WP6H245E61, WP6H270E61, WP8.350E62；Yuchai YCS06270-60, YCS06300-61；DONGFENGCummins AB6.2NS6B290 |
|---|---|
| Displacement Range | 6,200 ～ 7,800 ml |
| Max. Power Range | 180 ～ 257 kW |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
