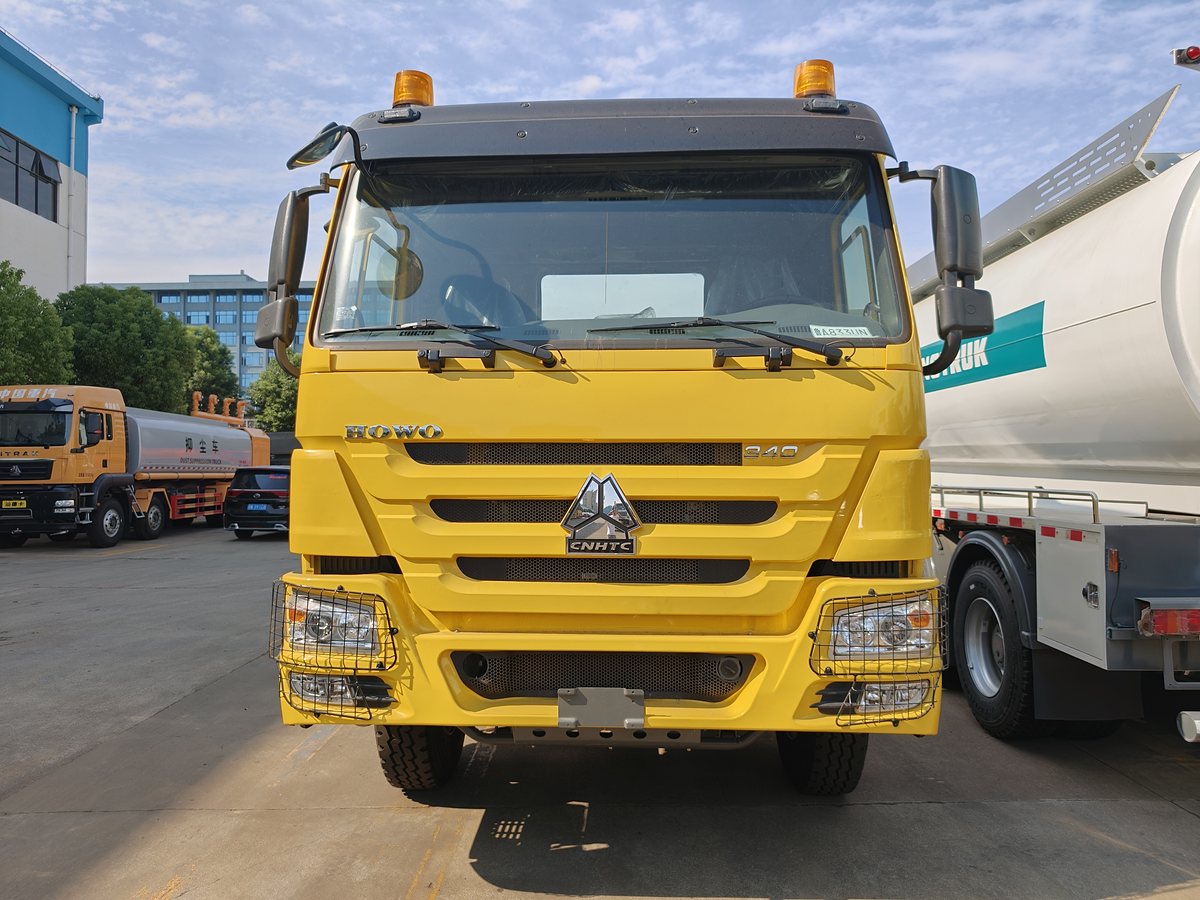

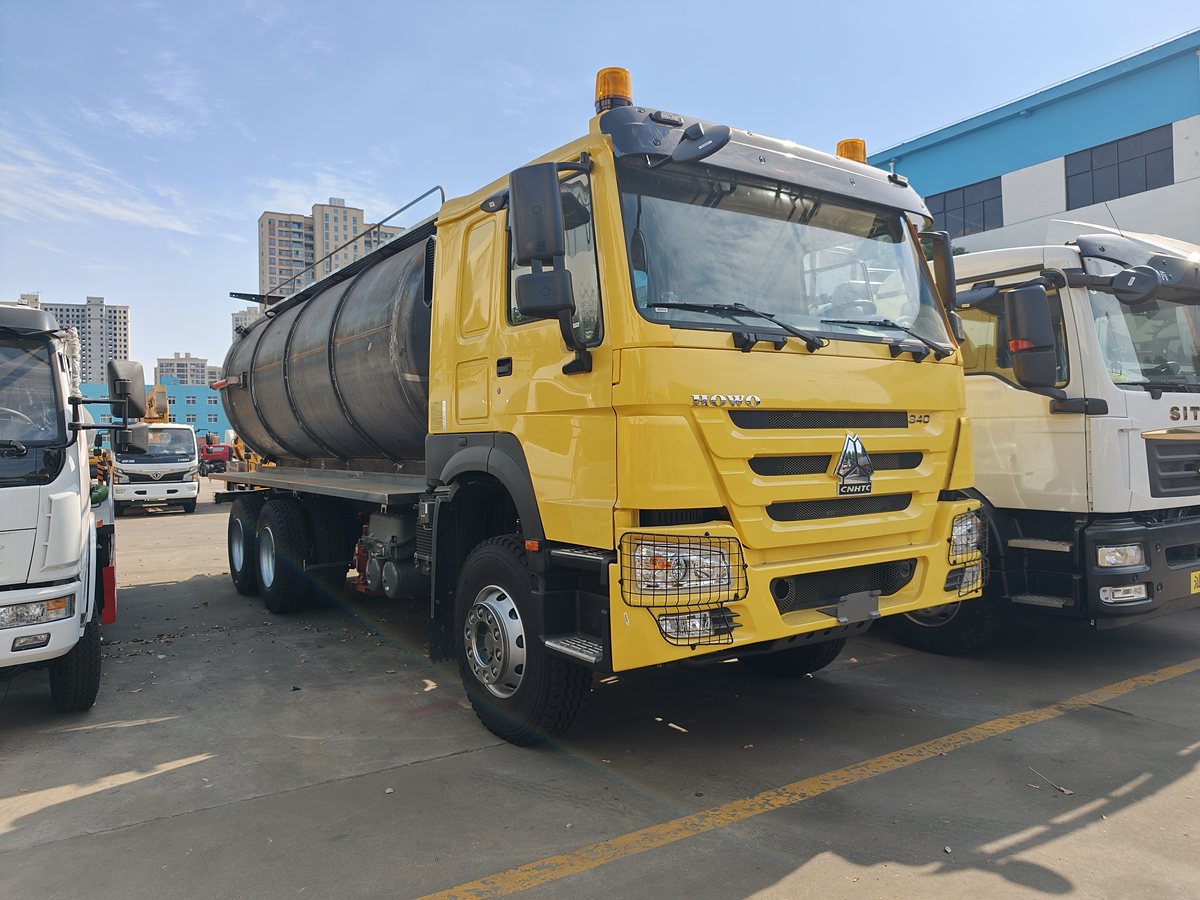

HOWO 25t Combination Jetting & Vacuum Truck
Sewer jetting and sludge suction; main equipment is the vacuum pump and tank assembly
HOWO 25t Combination Jetting & Vacuum Truck
The CL5258GQW6ZH combination unit carries a 9 m³ clean-water tank and an 11.25 m³ sewage tank on a HOWO 3-axle, 25,000 kg GVW chassis, so a single vehicle can jet a blocked line and vacuum the resulting sludge. The two tanks are independent and must not be filled to capacity at the same time: the clean-water tank feeds the high-pressure jetting circuit, the sewage tank the vacuum circuit. Overall dimensions are 10,550 × 2,550 × 3,950 mm and rated payload is 8,640 / 8,575 kg. Vacuum pump brand, hose reel length and RHD are configurable.
Specifications
Vehicle Announcement Data
| Model | CL5258GQW6ZH |
|---|---|
| Announcement Batch | Batch No. 384 |
| Product Brand | CHENGLI |
| Product Name | Sewer jetting & vacuum truck |
| Gross Vehicle Weight | 25,000 kg |
| Kerb Weight | 16,230 kg |
| Rated Payload | 8,640 / 8,575 kg |
| Tank Volume (clean water tank) | 9 m³ |
| Cab Seating Capacity | 2 / 3 persons |
| Overall Dimensions (L × W × H) | 10,550 × 2,550 × 3,950 mm |
| Approach / Departure Angle | 17° / 9° |
| Front / Rear Overhang | 1,550 / 3,050、1,550 / 3,025 mm |
| Axle Load | 7,000 / 18,000 kg (tandem axle group) |
| Max. Speed | 89 km/h |
Superstructure & Special Equipment
| Application | Mainly for sewer jetting and sludge suction |
|---|---|

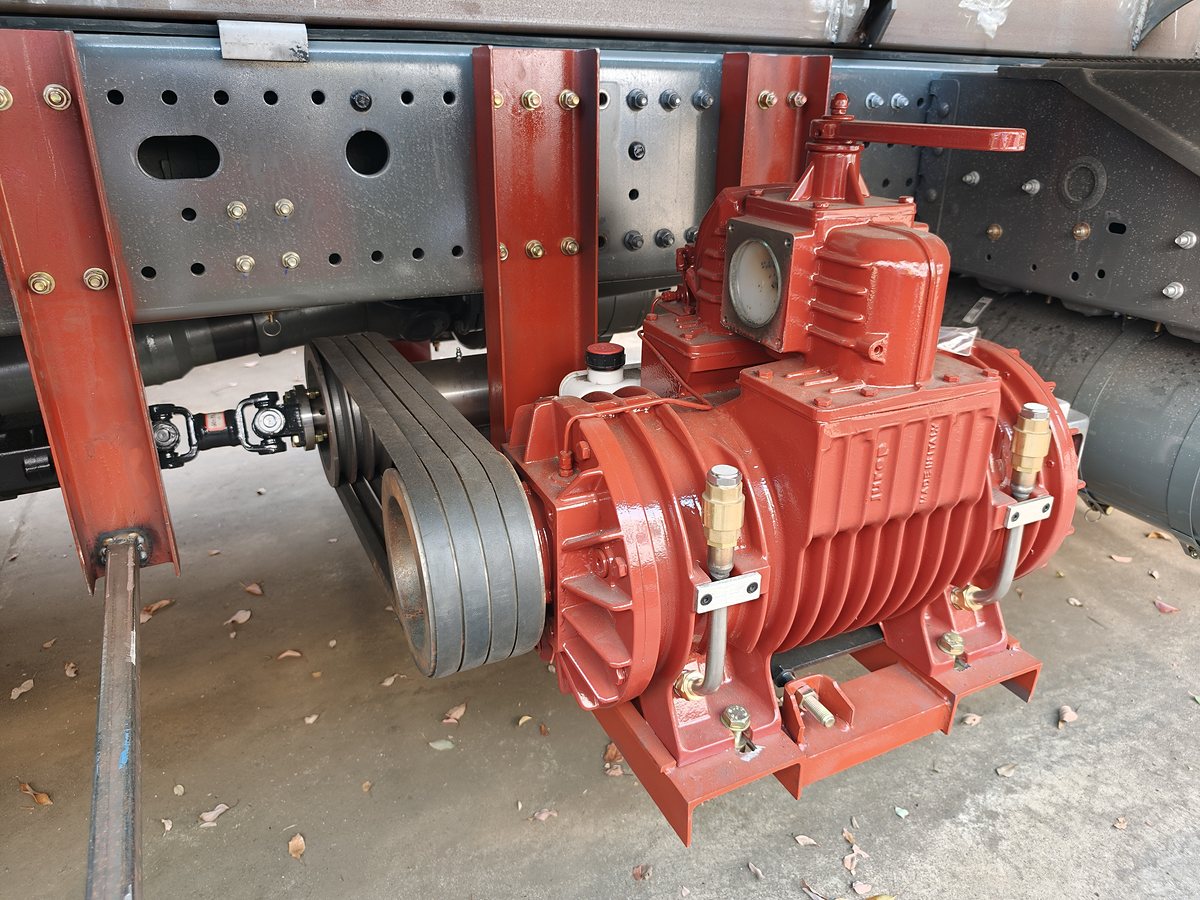

| Main Special Equipment | Vacuum pump and tank |

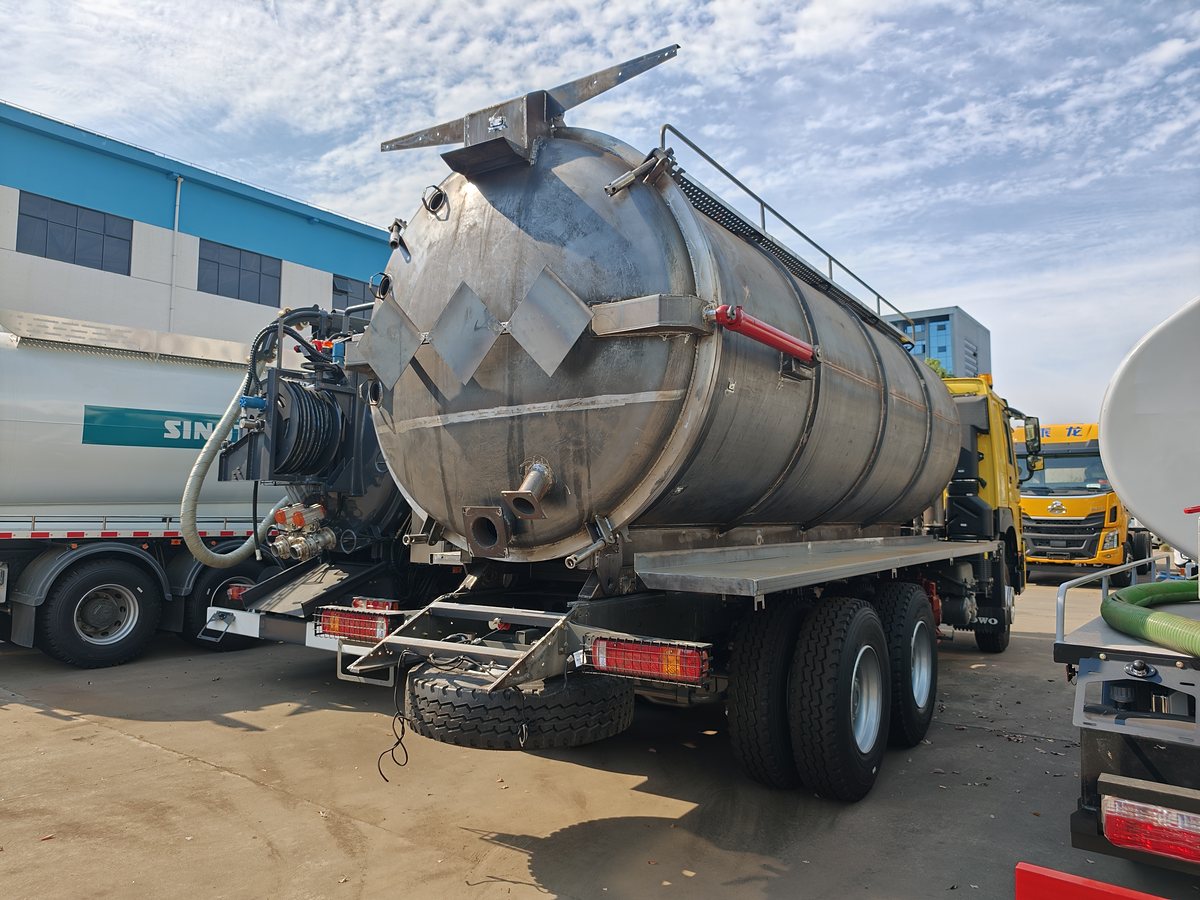

| Tank Dimensions (L × diameter) | 7,000 mm (incl. 6,300 mm straight section) × 2,150 mm |
| Tank Compartments | Front clean-water tank (straight length 2,775 mm), rear sewage tank (straight length 3,525 mm) |
| Clean Water Tank | Total capacity 9 m³, effective volume 8.575 m³; medium: water, density 1,000 kg/m³ |
| Sewage Tank | Total capacity 11.25 m³, effective volume 10.71 m³; medium: liquid sewage, density 800 kg/m³ |
| Tank Interrelation | The two tanks are independent and must not be fully loaded at the same time; the clean-water tank serves jetting, the sewage tank serves suction |
| Tank Tipping | Tank is tippable |
| Side & Rear Under-Run Guards | Q235 steel throughout, welded |

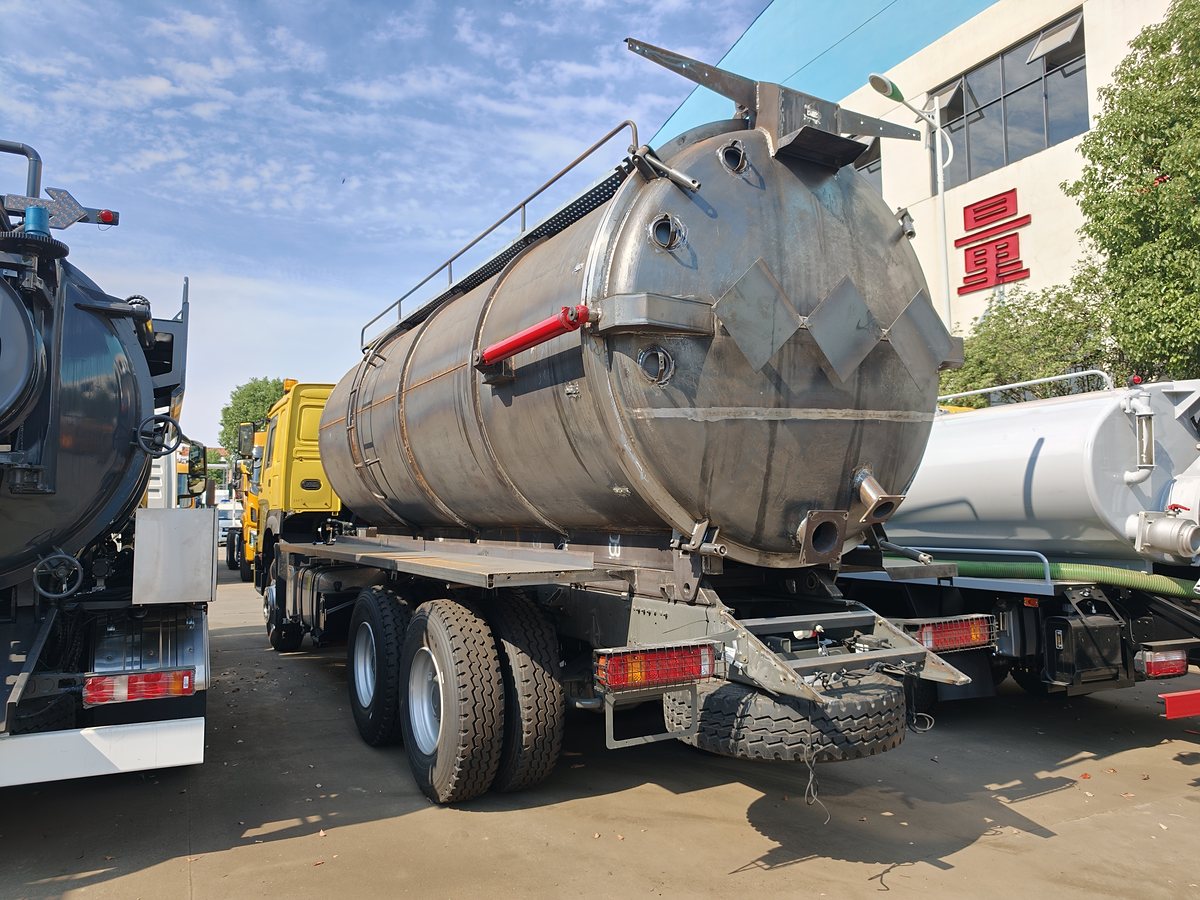

| Rear Under-Run Guard | Section 320 × 50 mm, lower edge 460 mm above ground |
| Options & Speed Limiter | Cab optional with chassis; optional rear structure appearance; speed limiter fitted (89 km/h) |
| ABS System | 446 004 6,300 (ZF Commercial Vehicle Systems (Qingdao) Co., Ltd.) |
Chassis Configuration
| Chassis Model | ZZ1257V464JF1 |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | HOWO |
| Chassis Manufacturer | Sinotruk Jining Commercial Vehicle Co., Ltd. |
| Axles / Tyres | 3 axles / 10 tyres |
| Wheelbase (as announced) | 4,600+1,350、4,575+1,400 mm |
| Wheelbase (chassis options) | 4,325+1,350 / 4,300+1,400 / 4,600+1,350 / 4,575+1,400 / 5,100+1,350 / 5,075+1,400 mm |
| Tyre Size | 11.00R20 18PR、12.00R20 16PR、12R22.5 18PR、295/80R22.5 18PR、315/80R22.5 18PR / 16PR |

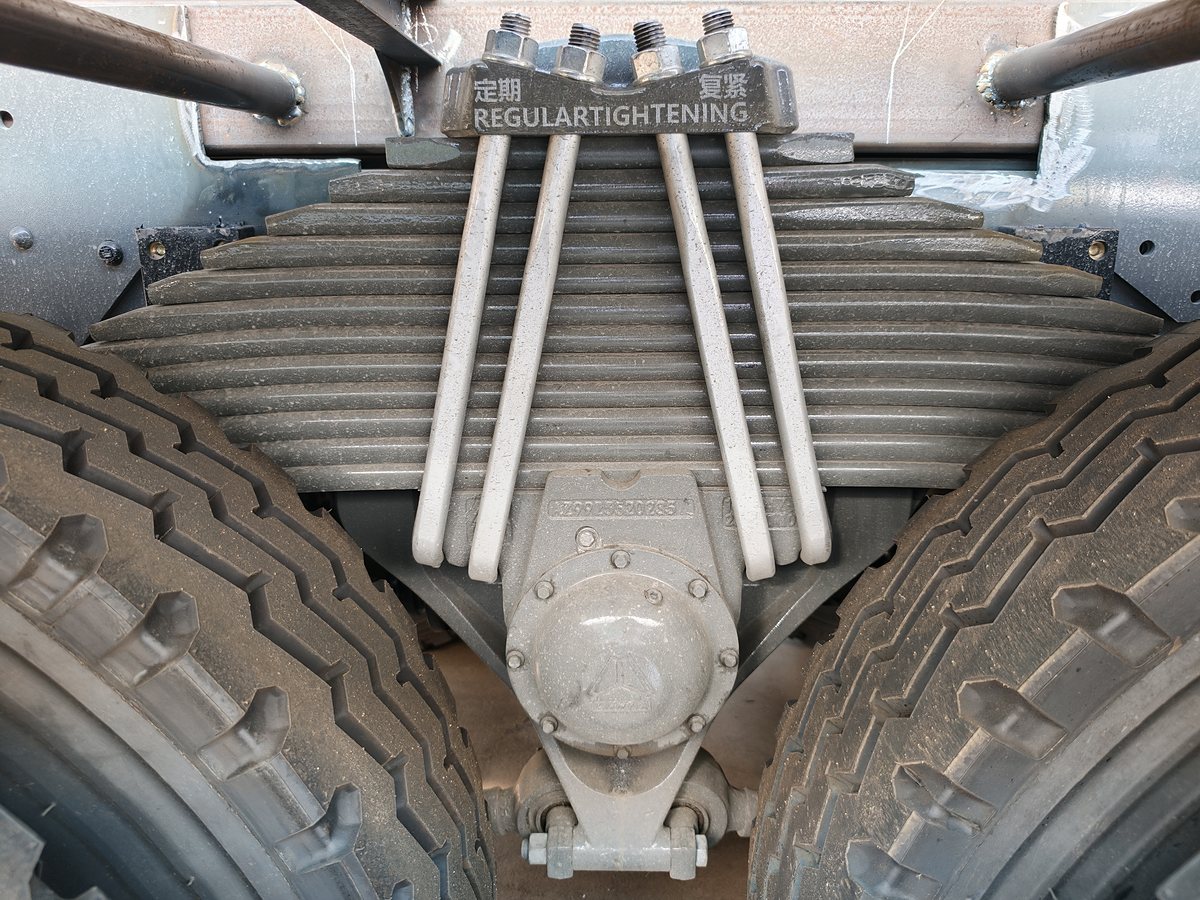

| Leaf Spring Count | 3/-、3/-/-、3/1+-/1+-、3/2+-/2+-、3/4、3/5、3/12、4/-、4/-/-、4/1+-/1+-、4/2+-/2+-、4/5、4/12、9/-、9/-/-、9/12、10/-、10/-/-、10/12 |
| Front / Rear Track | 1,996 / 2,022 / 2,041 mm；1,830/1,830、1,860/1,860 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
Engine
| Optional Engines (20 models) | Weichai WP10H400E62, WP9H350E62, WP8.350E61, WP7H270E62, WP7H320E62, WP7H300E62, WP6T280E62；Sinotruk MC07.27-60, MC07.29-60, MC07.31-60, MC07H.33-60, MC07H.35-60, MC11.40-61, MC07.27-61, MC07.29-61, MC07H.31-61, MC07H.33-61, MC07H.35-61, MC11H.40-61, MC07H.35P-61 |
|---|---|
| Displacement Range | 5,496 ～ 11,050 ml |
| Max. Power Range | 199 ～ 297 kW |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
