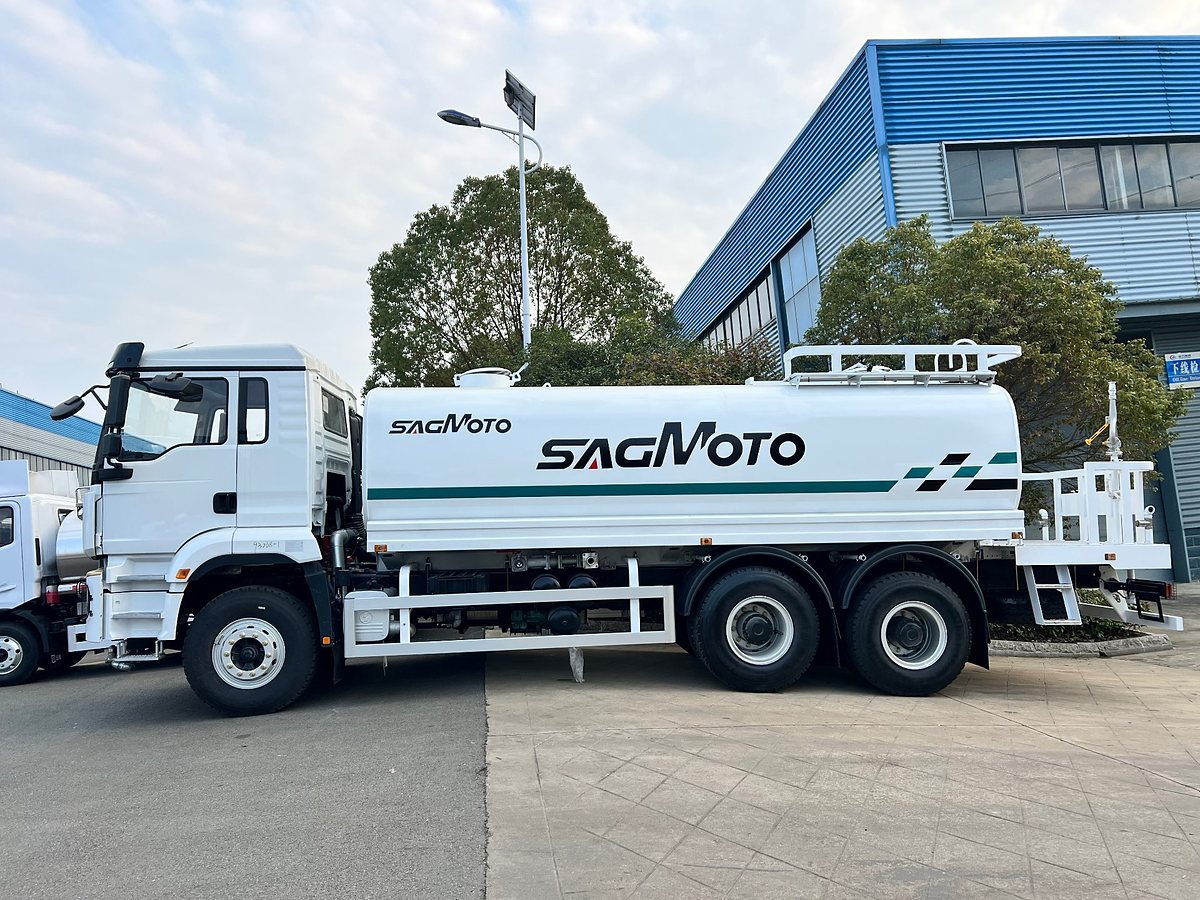

SHACMAN 25t Disinfection Sprinkler Truck
Disinfection and epidemic-prevention spraying in streets, squares and residential areas
SHACMAN 25t Disinfection Sprinkler Truck

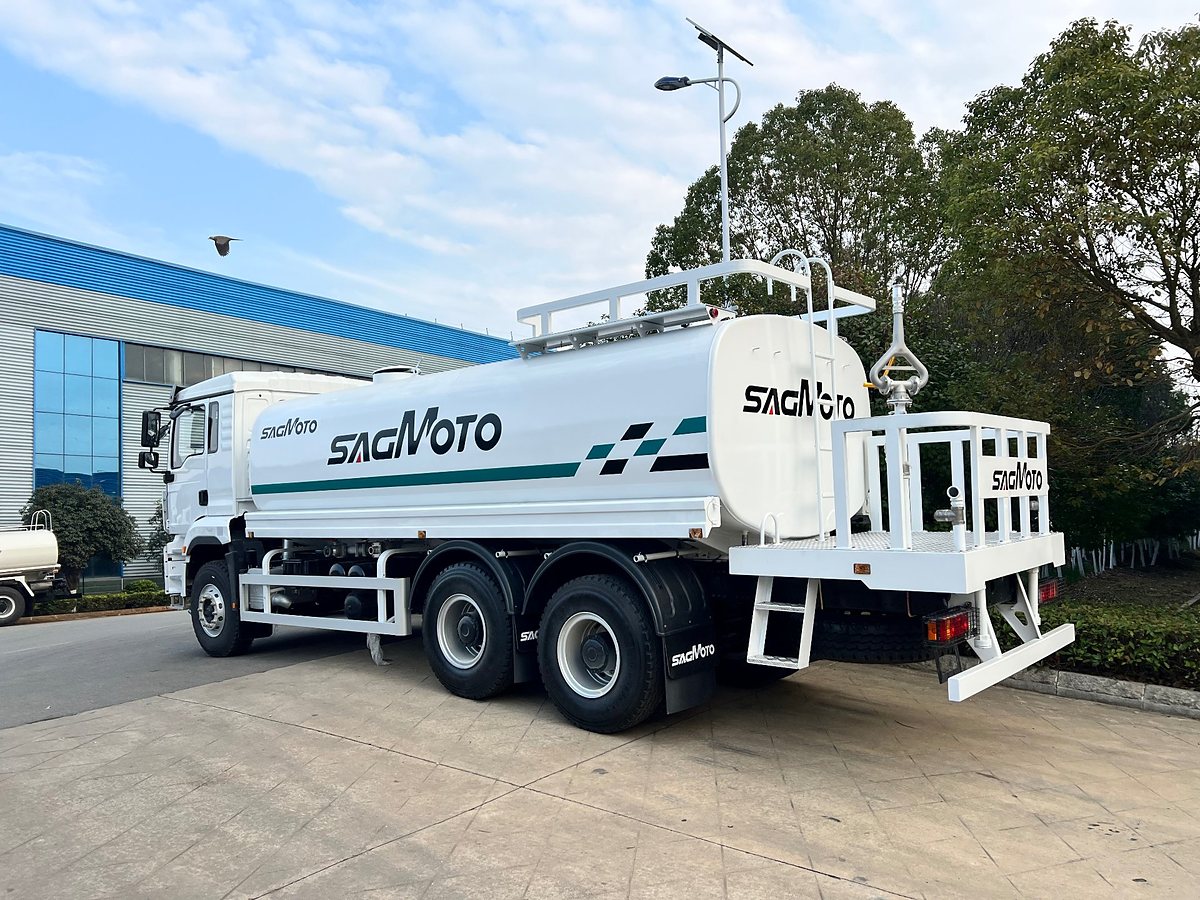

The CLW5250TSDBBS carries an 18.1 m³ water tank on a SHACMAN chassis at 25,000 kg GVW for street disinfection, dust suppression and general water spraying in public spaces. The rear platform can be fitted with a mist cannon, water cannon, front duckbill spray, high-level shower and rear spray bar, with pneumatic valves controlled from the cab. Municipal sanitation bureaus, industrial parks and port authorities use this configuration for both routine road washing and public-health spraying.
Specifications
Vehicle Announcement Data
| Model | CLW5250TSDBBS |
|---|---|
| Product Name | Disinfection sprinkler truck |
| Product Brand | CHENGLIWEI |
| Announcement Batch | Batch No. 398 |
| Tank Total Capacity | 18.1 m³ |
| Tank Effective Volume | 17.24 m³ |
| Tank Dimensions | 6,500×2,450×1,650 mm |
| Gross Vehicle Weight | 25,000 kg |
| Kerb Weight | 11,010 kg |
| Rated Payload | 13,795 / 13,860 kg |
| Overall Dimensions | 10,275×2,550×3,330 mm |
| Axle Load | 7,000 / 18,000 kg (tandem axle group) |
| Max. Speed | 85 km/h |
| Cab Seating Capacity | 2 / 3 persons |
| Approach / Departure Angle | 23° / 9° |
| Front / Rear Overhang | 1,450 / 3,100 mm |
Chassis Configuration
| Chassis Model | SX1250GP6444C |
|---|---|
| Chassis Brand | SHACMAN |
| Chassis Manufacturer | Shaanxi Automobile Group Co., Ltd. |
| Wheelbase | 4,375 + 1,350 mm (also 4,575+1,350, 4,775+1,350, 4,375+1,300) |
| Axles / Tyres | 3 axles / 10 tyres |
| Tyre Size | 11.00R20、11.00R20 18PR |
| Leaf Spring Count | 9/10, 10/12, 12/12, etc. |
| Front Track | 1,900 / 1,940 / 1,970 mm |
| Rear Track | 1,860 / 1,860 mm |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 China VI |
Special Equipment & Superstructure
| Special Equipment | Tank and spraying system |
|---|---|
| Intended Use | Disinfection and epidemic prevention in streets, squares and residential areas |
| Guards | Side guards in Q235A carbon steel, bolted on both sides; rear guard in Q235A carbon steel, section 150 × 50 mm, ground clearance 490 mm |
| ABS System | Xi'an Zhengchang Electronics Co., Ltd. ZQFB-V |
| Optional Configuration | Rear-platform mist cannon and its unit, rear-platform water cannon, pneumatic ball valves, cannon barrel, top walkway, high-level shower, front duckbill spray, tool box, rear opposite spray, cab appearance, etc. |
Engine
| Engine Model | YCS06270-60、YCS06300-61、YCS07L270-66、YCS07L300-66 |
|---|---|
| Displacement | 6,234 / 6,442 ml |
| Power Range | 199～221 kW |
| Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
