JIEFANG 25t Wrecker / Recovery Truck

Recovery and towing of breakdown and illegally parked vehicles — under-lift and flatbed towing

JIEFANG 25t Wrecker / Recovery Truck — Front-right 45° (under-lift stowed)
Front-right 45° (under-lift stowed)

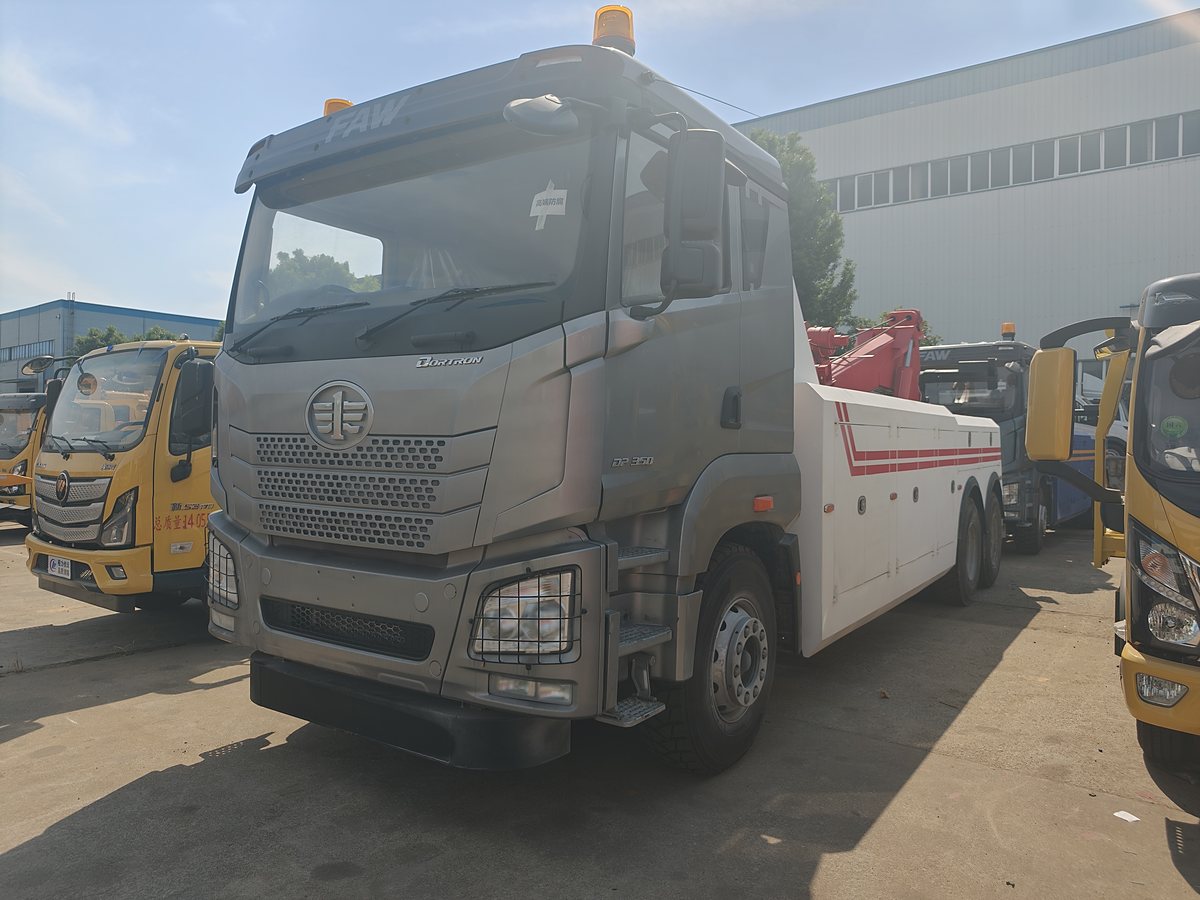

JIEFANG 25t Wrecker / Recovery Truck — Front view of cab
Front view of cab

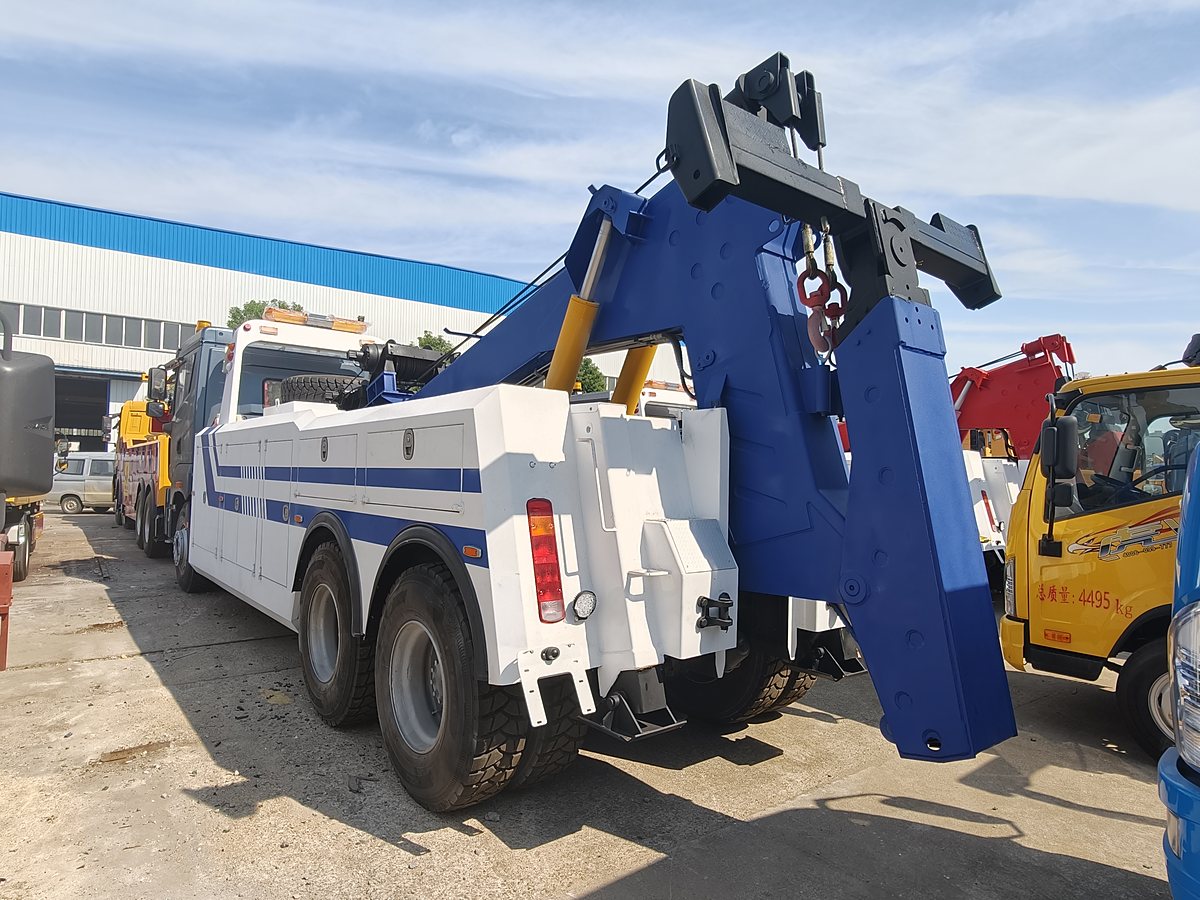

JIEFANG 25t Wrecker / Recovery Truck — Rear 45° with under-lift deployed (blue/white livery)
Rear 45° with under-lift deployed (blue/white livery)

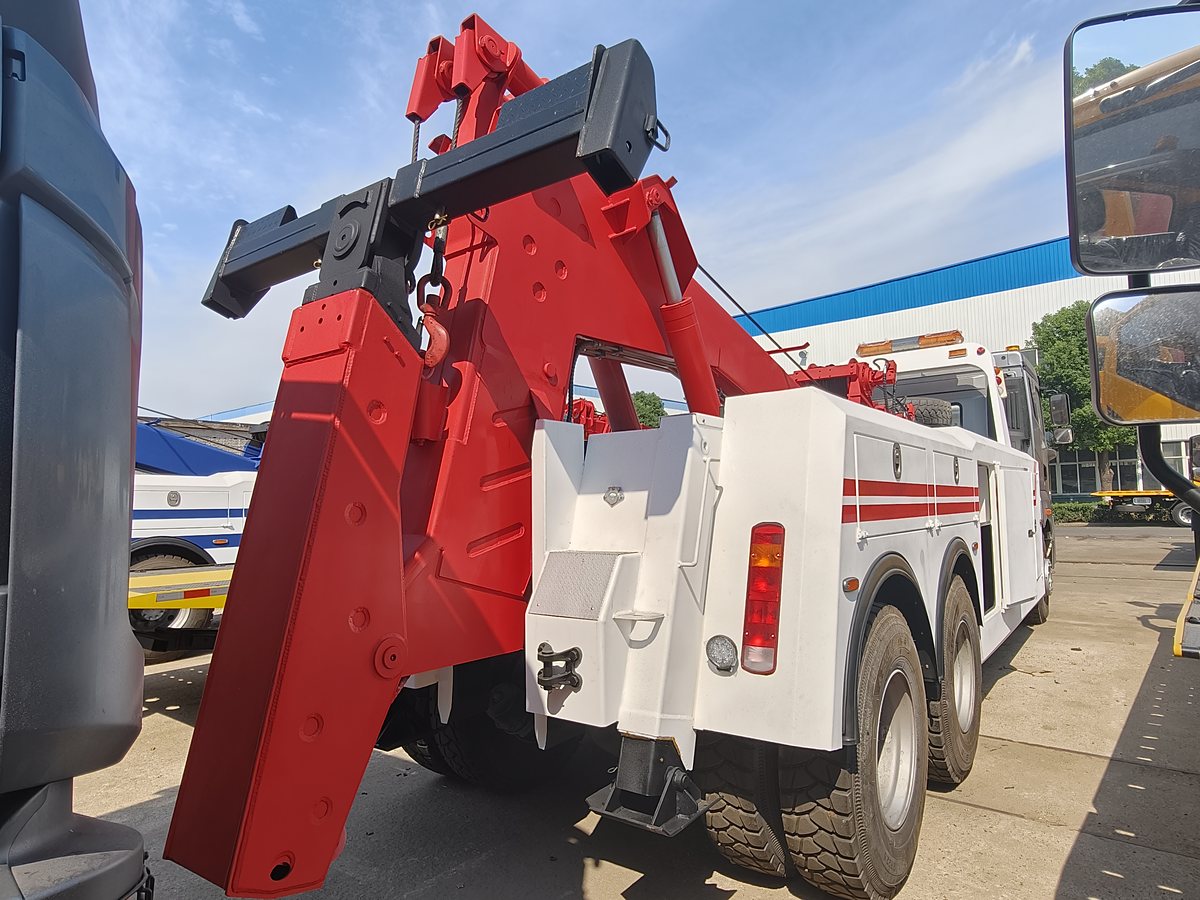

JIEFANG 25t Wrecker / Recovery Truck — Rear 45° with under-lift and hook (red/white livery)
Rear 45° with under-lift and hook (red/white livery)
Body compartment with under-lift deployed
Side locker door and under-lift

JIEFANG 25t Wrecker / Recovery Truck

The CL5252TQZ6BZQ wrecker is built on a JIEFANG 3-axle chassis at 25,000 kg GVW, with a maximum under-lift capacity of 8,400 kg. It is specified for accident and breakdown recovery, municipal clearance work and fleet operators who need to move disabled vehicles. The unit combines an under-lift with a winch and, depending on the build, a flatbed deck; body lengths of 10,600 – 12,050 mm are available. Warning light bars, toolboxes, auxiliary lighting and RHD can be configured for the destination country.

Specifications

Vehicle Announcement Data

ModelCL5252TQZ6BZQ
Announcement BatchBatch No. 397
Product BrandCHENGLI
Product NameWrecker (recovery truck)
Gross Vehicle Weight25,000 kg
Kerb Weight17,200 / 16,470 kg
Cab Seating Capacity2 / 3 persons
Overall Dimensions (L × W × H)12,050 / 11,550 / 11,050 / 10,600 × 2,550 × 3,100 mm
Vehicle Length / Wheelbase Correlation12,050 / 5,800+1,350;11,550 / 5,300+1,350;11,050 / 4,800+1,350;10,600 / 4,350+1,350(mm)
Approach / Departure Angle22° / 8°
Front / Rear Overhang1,400 / 3,500 mm
Axle Load7,000 / 9,000 / 9,000 kg
Max. Speed89 / 96 km/h

Recovery Equipment

Main Special Equipmentunder-lift, deck, winch, wire rope, hydraulic cylinder
Applicationroadbreakdownvehicle, cityillegally parkedvehicletowing
Under-Lift Capacity (kerb weight 17,200 kg)7,670 / 7,605 kg (forseating 2 / 3 persons)
Under-Lift Capacity (kerb weight 16,470 kg)8,400 / 8,335 kg (forseating 2 / 3 persons)
Left & Right Side GuardsMaterial Q235 carbon steel,bolted connection
Rear Under-Run Guardbyspecialequipmentunder-liftreplaced,ground clearance 460 mm

Chassis Configuration

Chassis ModelCA1250P62K1L3T1A1E6Z
Chassis Designationflat-roofDieselCargo truck chassis
Chassis BrandJIEFANG
Chassis ManufacturerChina FAW Group Co., Ltd.
Axles / Tyres3 axles / 10 tyres
Wheelbase (chassis options)4,350+1,350 / 4,800+1,350 / 5,300+1,350 / 5,800+1,350 mm
Tyre Size11.00R20、12R22.5、295/80R22.5、315/70R22.5
Leaf Spring Count12/10、3/10、10/10
Front / Rear Track1,928 / 1,950 / 1,988 mm;1,878/1,878 mm
Fuel TypeDiesel
Emission Standard BasisGB17691-2018 China VI
ABS SystemCM4XL (Changchun Ruili Kemi Automotive Electronics Co., Ltd.)
Cabwith chassisoptionalnew-stylecab

Options & Speed Limiter

Speed Limiterwith chassisOptional, speed limited to 89 km/h
Optional Itemsflip platestyle, upper / lowerside beamperforatedappearance, new-stylecab

Engine

Optional Engines (7 models)FAW CA6DK2-32E65, CA6DK2-35E65, CA6DK2A28E65, CA6DK2B32E65, CA6DK2E35E65, CA6DK2D35E65, CA6DH1-27E65
Displacement Range5,700 ~ 7,751 ml
Max. Power Range201 ~ 257 kW
Fuel / EmissionDiesel, China VI

Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
