SHACMAN 25t Snow Removal Truck
Snow clearing and de-icing agent spreading on municipal roads, highways and airport aprons
SHACMAN 25t Snow Removal Truck

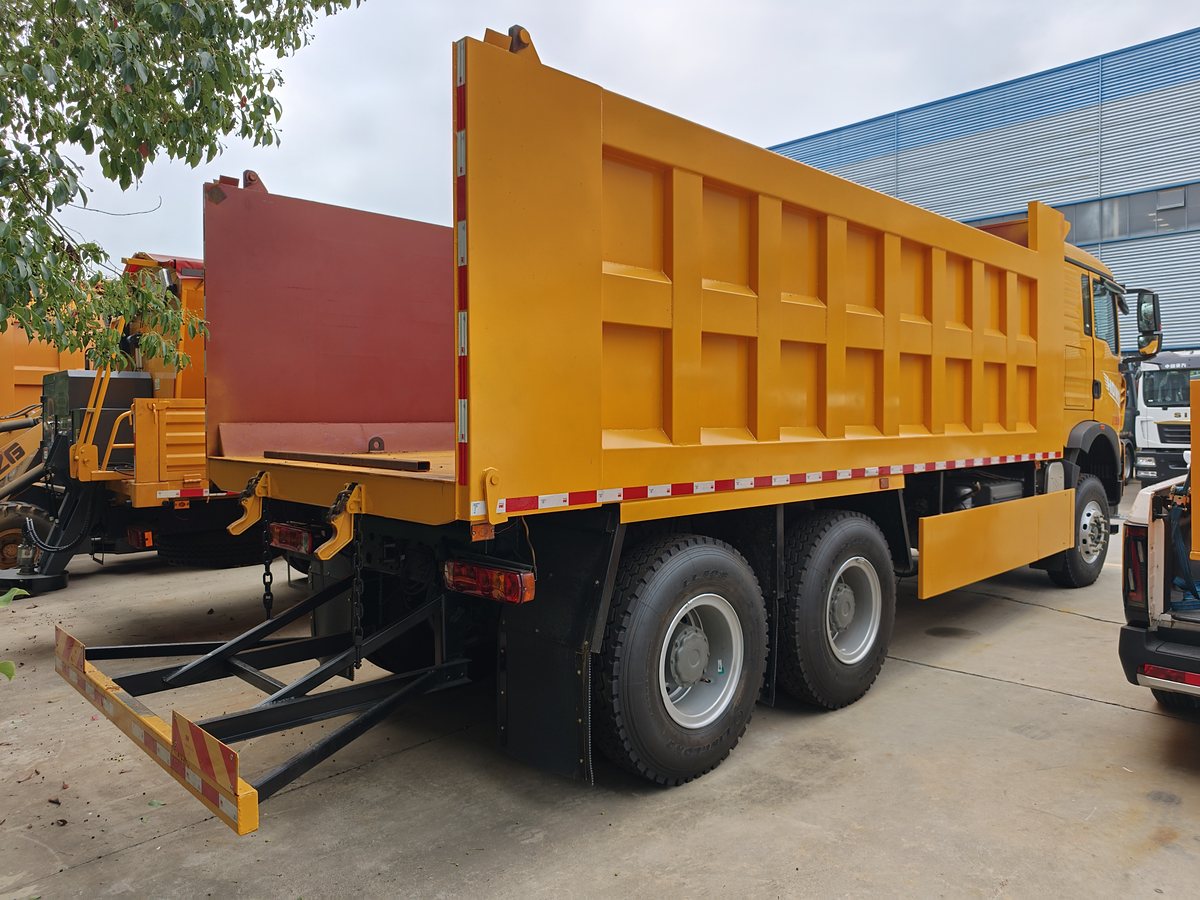

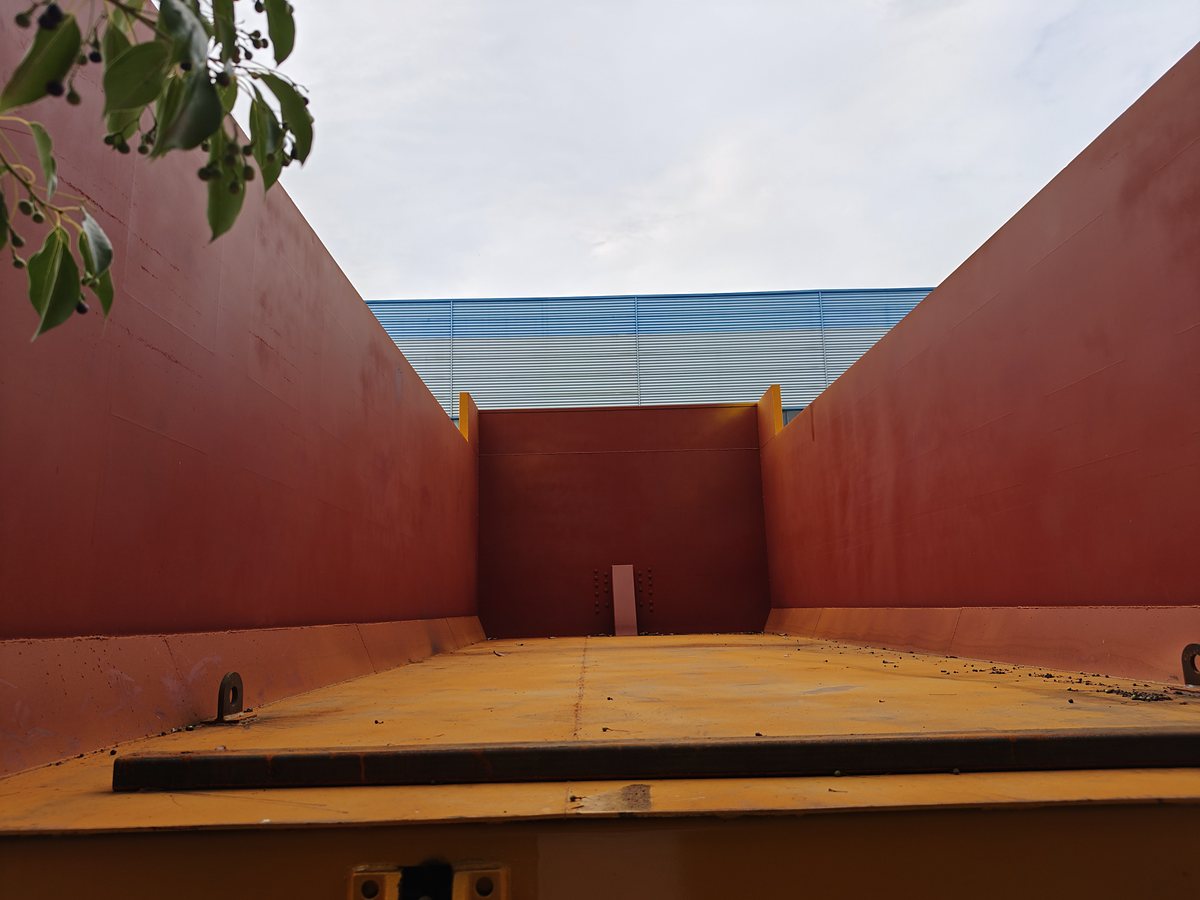

The CL5251TCX6AHL is a 25-tonne snow removal truck on a SHACMAN SX1259MC4Z1C cargo-truck chassis with 3 axles and 10 tyres, at a 25,000 kg gross vehicle weight and 10,000 × 2,550 × 3,700 mm overall dimensions. The vehicle is equipped with a de-icing agent spreader and work-status indicator lamps, and is used mainly for snow clearing on municipal roads, expressways, ordinary highways and airport aprons; a snow plough is fitted only while the vehicle is working in snow. The body tips for discharge, and rear arrow lamps warn following traffic only while working. It uses only the 4,375 + 1,400 mm wheelbase chassis with 11.00R20 18PR / 12.00R20 16PR tyres. Side and rear guards are both Q235: the side guards are welded and bolted, the rear under-run guard is welded, 120 × 60 mm in section with its lower edge 400 mm above the ground. ABS is ZQFB-V (Xi'an Zhengchang Electronic Co., Ltd.) and an 80 km/h speed limiter is optional.
Specifications
Vehicle Announcement Data
| Model | CL5251TCX6AHL |
|---|---|
| Product Name | Snow removal truck |
| Product Brand | CHENGLI |
| Announcement Batch | Batch No. 408 |
| Gross Vehicle Weight | 25,000 kg |
| Kerb Weight | 14,700 kg |
| Rated Payload | 10,170 / 10,105 kg |
| Overall Dimensions | 10,000×2,550×3,700 mm |
| Axle Load | 7,000 / 18,000 kg (tandem axle group) |
| Max. Speed | 80 / 89 km/h |
| Cab Seating Capacity | 2 / 3 persons |
| Approach / Departure Angle | 15° / 9° |
| Front / Rear Overhang | 1,725 / 2,500 mm |
Special Equipment & Superstructure

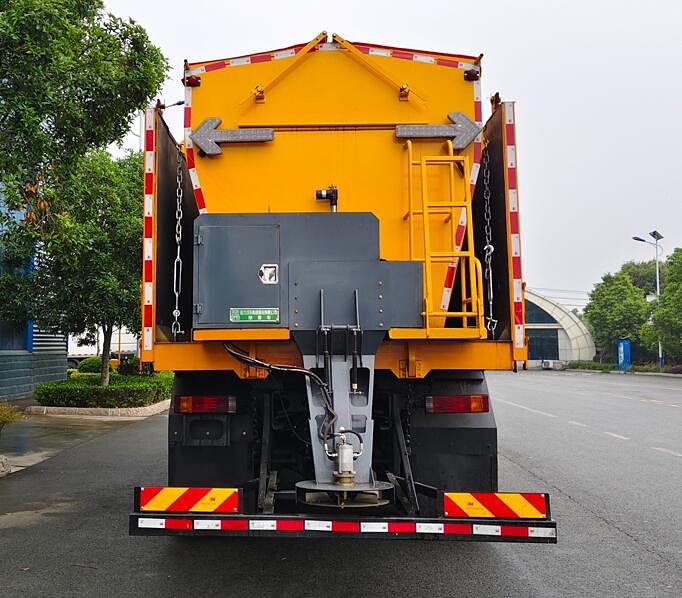

| Special Equipment | De-icing spreader |
|---|---|
| Intended Use | Snow clearing on municipal roads, expressways, ordinary highways and airport aprons |

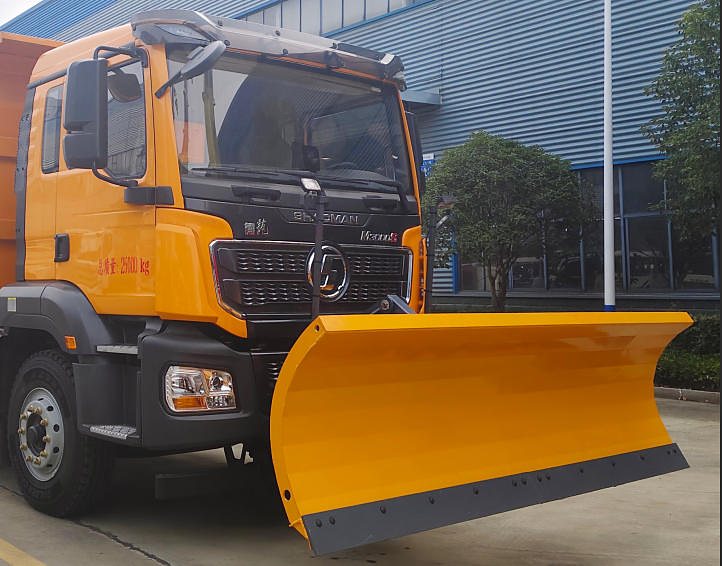

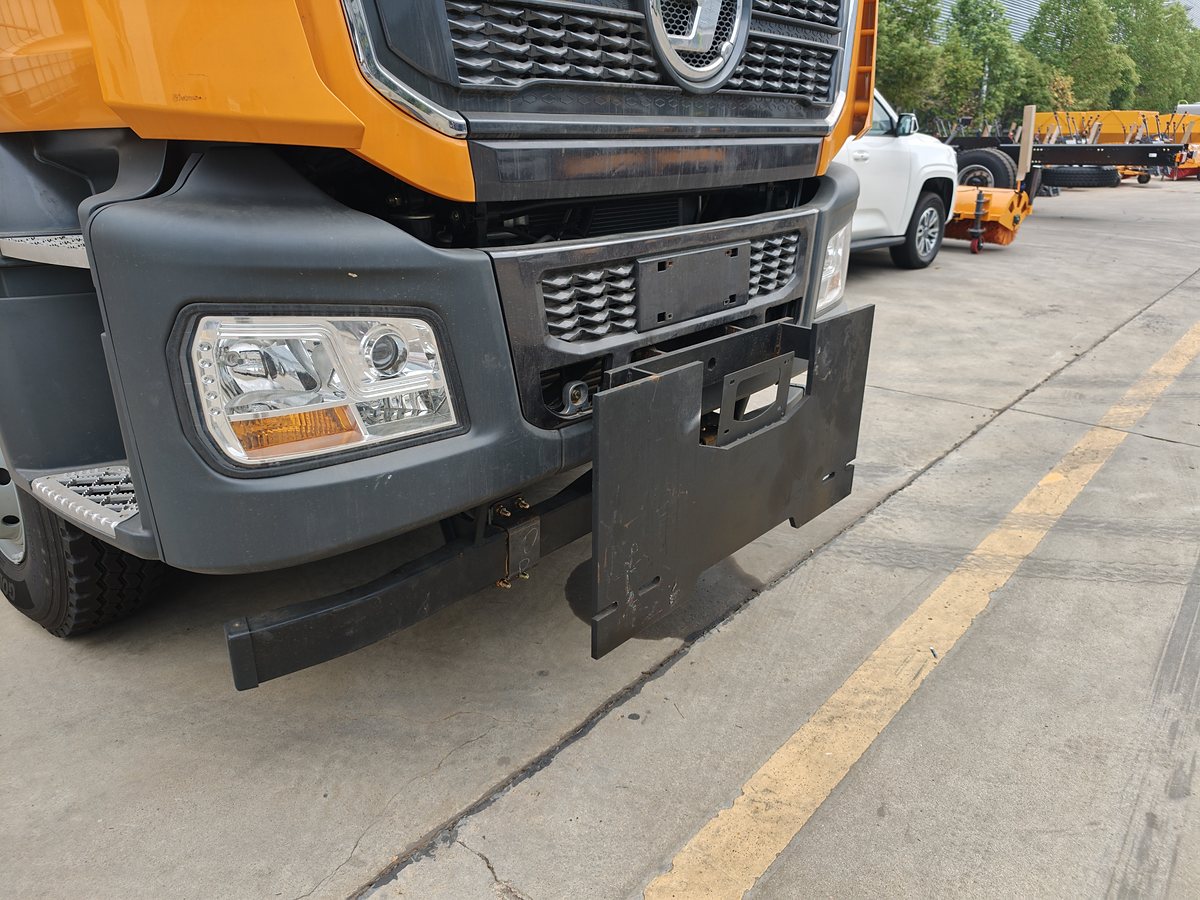

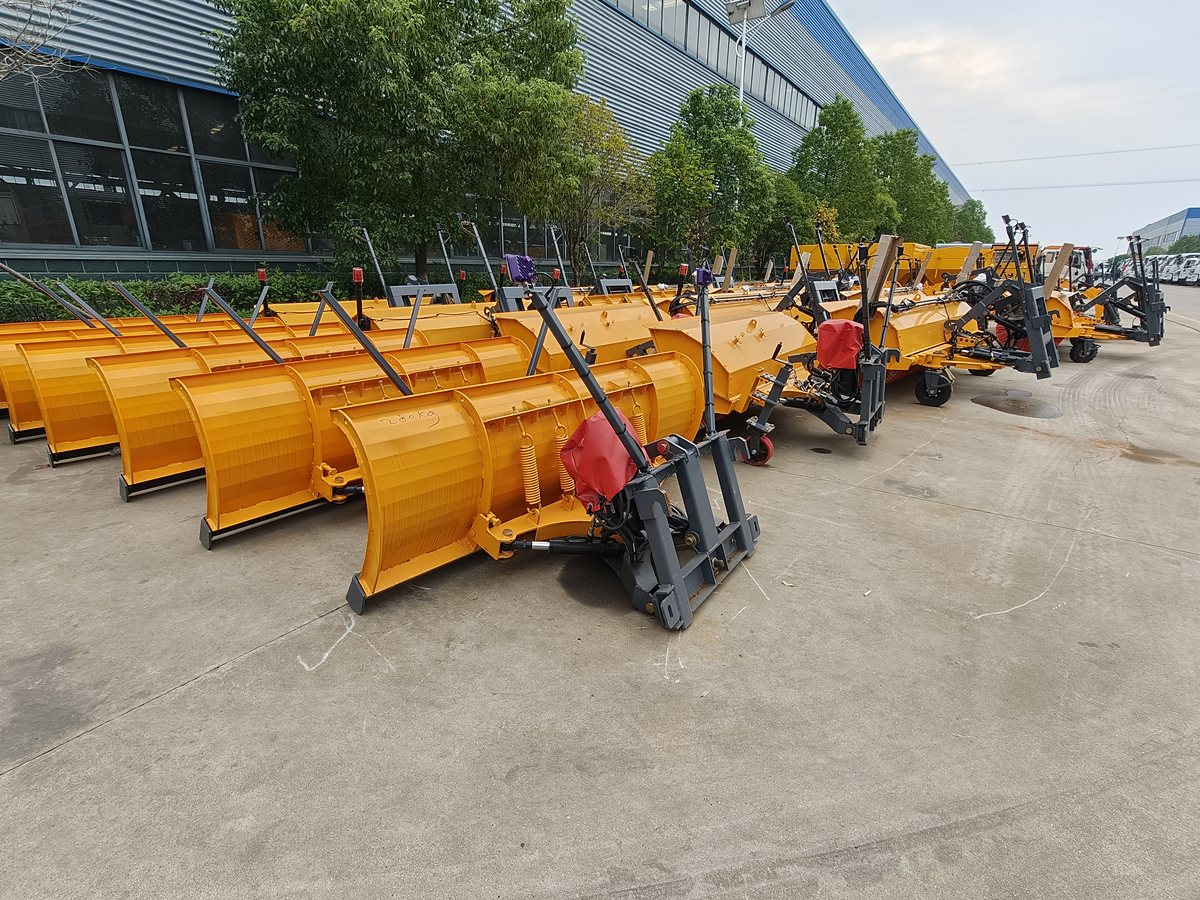

| Optional Equipment | Snow plough (fitted only while working in snow) |
| Indicator Lamps | Work-status indicator lamps; rear arrow lamps switch on only while working |

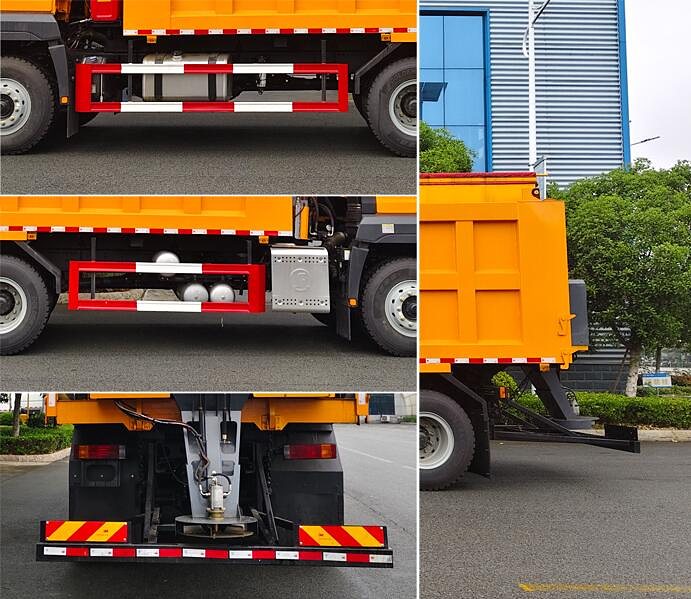

| Guards | Side and rear guards both in Q235 steel: side guards welded and bolted; rear under-run guard welded, 120 × 60 mm in section, its lower edge 400 mm above the ground |
| ABS System | ZQFB-V (Xi'an Zhengchang Electronic Co., Ltd.) |
| Speed Limiter | Optional speed limiter, limited to 80 km/h |
| Tyre Restriction | 11.00R20 18PR / 12.00R20 16PR tyres only |
Chassis Configuration
| Chassis Model | SX1259MC4Z1C |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | SHACMAN |
| Chassis Manufacturer | Shaanxi Automobile Group Co., Ltd. |
| Axles / Tyres | 3 axles / 10 tyres |
| Wheelbase (vehicle uses 4,375 + 1,400 mm only) | 3,775 + 1,400 / 3,975 + 1,400 / 4,375 + 1,400 / 4,575 + 1,400 / 4,975 + 1,400 / 5,775 + 1,400 mm |
| Tyre Size | 11.00R20 18PR, 12.00R20 16PR, 12R22.5 18PR |
| Leaf Spring Count | 10/12 |
| Front / Rear Track | 2,011 / 2,036 / 2,070 mm; 1,860 / 1,860 mm |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 China VI |
Engine
| Optional Engines (5 models) | WP9H310E62, WP9H336E62, WP9H350E62, WP10H375E62, WP10H400E62 |
|---|---|
| Manufacturer | Weichai Power Co., Ltd. |
| Displacement | 8,800 – 9,500 ml |
| Power | 228 – 294 kW |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
