SITRAK 25t Refuse Compactor Truck
Municipal refuse collection, compaction and transfer
SITRAK 25t Refuse Compactor Truck

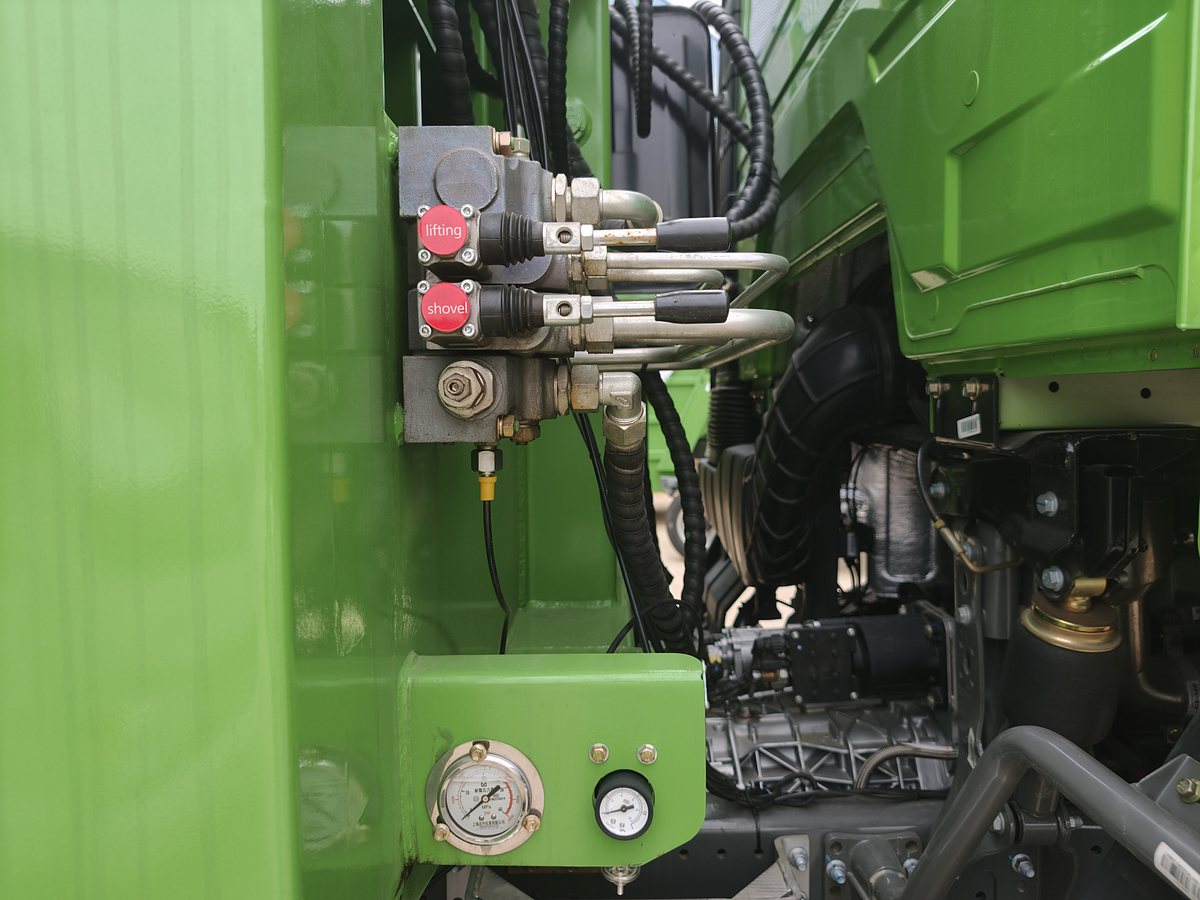

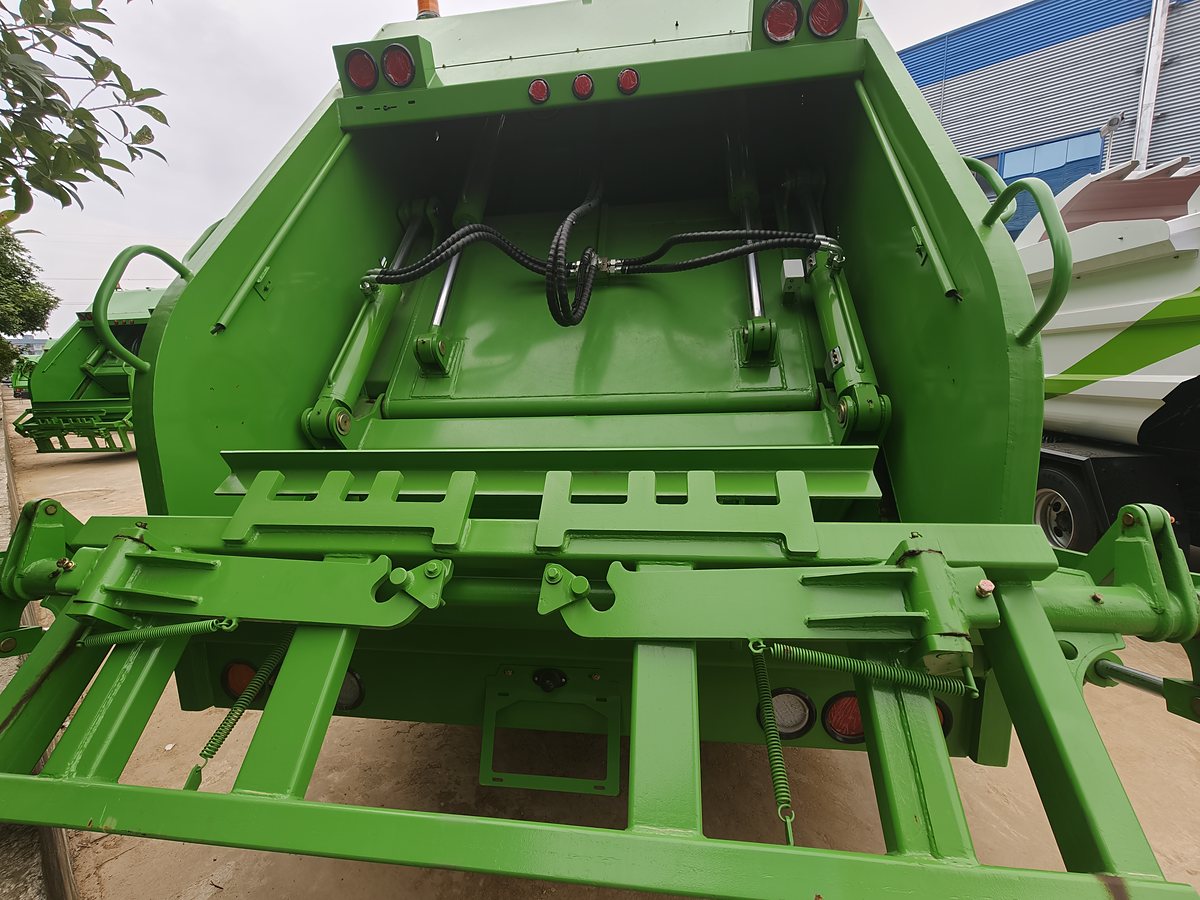

The CLW5252ZYS6WL refuse compactor is built on the SITRAK ZZ5256XXYN504GF1 chassis at 25,000 kg GVW, running three axles and ten tyres on a 4,300 + 1,350 mm wheelbase. A hydraulic mechanism drives the packer blade for municipal refuse collection and transfer, and bin-lift, triangular-hopper, ground-hopper or swing-arm loading systems can be specified to suit local collection practice. A speed limiter (89 km/h) and a satellite-positioning tachograph are fitted.
Specifications
Vehicle Announcement Data
| Model | CLW5252ZYS6WL |
|---|---|
| Product Name | refuse compactor |
| Product Brand | CHENGLIWEI |
| Announcement Batch | Batch No. 404 |
| Gross Vehicle Weight | 25,000 kg |
| Kerb Weight | 15,300 kg |
| Rated Payload | 9,570 / 9,505 kg |
| Overall Dimensions | 9,680～10,030×2,550×3,450 mm |
| Axle Load | 7,000 / 18,000 kg (tandem axle group) |
| Max. Speed | 89 km/h |
| Cab Seating Capacity | 2 / 3 persons |
| Approach / Departure Angle | 16° / 15～21° |
Chassis Configuration
| Chassis Model | ZZ5256XXYN504GF1 |
|---|---|
| Chassis Brand | SITRAK |
| Chassis Manufacturer | China Sinotruk Jinan Commercial Vehicle Co., Ltd. |
| Wheelbase | 4,300 + 1,350 mm (other wheelbases from 3,875 + 1,400 to 6,000 + 1,400 mm) |
| Axles / Tyres | 3 axles / 10 tyres |
| Tyre Size | 12.00R20 16PR、11.00R20 18PR、12R22.5 18PR、295/80R22.5 18PR、315/80R22.5 18PR |
| Leaf Spring Count | 3/4, 3/5, 3/10, 11/10, 11/12 etc. |
| Front Track | 1,998 / 2,022 / 2,035 / 2,041 mm |
| Rear Track | 1,830、1,850 mm |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 China VI |
Special Equipment & Superstructure
| Special Equipment | Hydraulic mechanism and packer blade |
|---|---|
| Intended Use | Municipal refuse collection and transfer |
| Optional Equipment | Bin-lift, triangular hopper, ground hopper and swing-arm loading systems |
| Guards | side guardMaterial Q235A carbon steel, welded connection；rear guardbyspecialequipmentreplaced，lower edge above ground 490 mm |
| ABS System | ZF Commercial Vehicle Systems (Qingdao) Co., Ltd. 4,460,046,300；Optional EBS (EBS3) |
| Other Configuration | Speed limiter (89 km/h), GNSS tachograph, optional ETC on-board unit |
Engine
| Optional Engines | MC07H.35-60, MC07H.33-60, WP8.350E61, MC11H.43-61, WP8T380E62 and other models |
|---|---|
| Power Range | 213～319 kW |
| Fuel Consumption | WP6H270E61 / 32.32、WP8.350E61 / 31.99 L/100km |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
