HOWO 12.5t NG Dropside Cargo Truck
Long-haul haulage of general cargo, building materials and construction supplies, powered by natural gas (NG)
HOWO 12.5t NG Dropside Cargo Truck
The HOWO 12.5-tonne dropside cargo truck is built on a ZZ1127F3515F1CL cargo chassis from Sinotruk Jinan Commercial Vehicle, with 2 axles and 6 tyres at a 12,500 kg gross vehicle weight; kerb weight is 4,840 kg against a rated payload of 7,530 / 7,465 kg, matched to the cab seating capacity. The truck runs on natural gas (NG), powered by Weichai (Weifang) Gas Power WP3NNG140E60, WP3NNG200E62 and WP3NNG200E62A engines of 2,970 ml displacement covering 103–147 kW and meeting China VI (GB17691-2018). The dropside body measures 3,850–5,400 mm long and 2,100–2,440 mm wide with 400–600 mm side boards, while overall vehicle length ranges from 5,995 to 7,645 mm, so wheelbase and body can be matched to the cargo carried. Both the side guard and the rear under-run guard are Q235A bolted items, the rear guard measuring 120 × 60 mm in section with 380–490 mm ground clearance; ABS and a satellite-positioning tachograph are fitted as standard. Options include different lamps, front panel, mirrors, bumper, steps, aluminium rims, sun visor and guard styles, plus gas-cylinder quantity and layout.
Specifications
Vehicle Announcement Data
| Model | ZZ1127F3515F1CL |
|---|---|
| Product Name | Dropside Cargo Truck |
| Product Brand | HOWO |
| Announcement Batch | Batch No. 409 |
| Gross Vehicle Weight | 12,500 kg |
| Rated Payload | 7,530 / 7,465 kg (matched to the cab seating capacity) |
| Kerb Weight | 4,840 kg |
| Overall Dimensions | 5,995 / 6,995 / 7,445 / 7,645 × 2,200 / 2,300 / 2,400 / 2,500 / 2,550 × 2,450 / 2,500 / 2,600 mm |
| Cargo Body Dimensions | 4,150 / 3,850 / 4,850 / 5,150 / 5,200 / 5,400 × 2,100 / 2,200 / 2,300 / 2,440 × 400 / 500 / 550 / 600 mm |
| Axle Load | 4,360 / 8,140 kg |
| Max. Speed | 89 km/h |
| Cab Seating Capacity | 2 / 3 persons |
| Approach / Departure Angle | 19° / 17° |
| Front / Rear Overhang | 1,180 / 1,315, 1,180 / 1,215, 1,180 / 2,015, 1,180 / 2,065, 1,180 / 2,265 mm |
Chassis Configuration
| Chassis Model | ZZ1127F3515F1CL |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | HOWO |
| Chassis Manufacturer | Sinotruk Jinan Commercial Vehicle Co., Ltd. |
| Axles / Tyres | 2 axles / 6 tyres |
| Wheelbase | 3,500 / 3,600 / 3,800 / 4,200 mm |

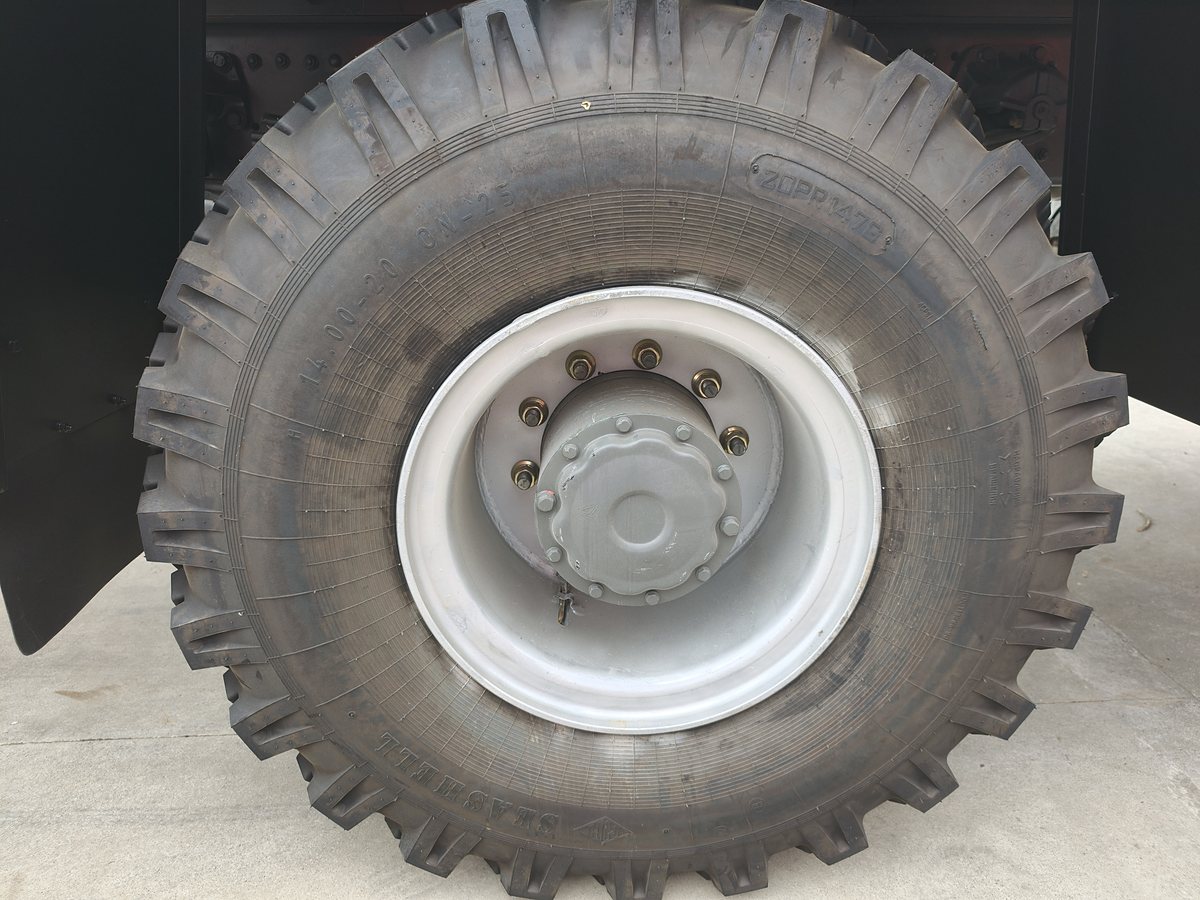

| Tyre Size | 245/70R19.5 16PR, 8.25R20 16PR |
| Leaf Spring Count | 3/5+1, 3/5+3, 3/3+2, 11/9+7, 3/1+3, 8/9+6, 3/8+6, 11/11+7, 9/12+9, 1/1+1, 8/9+7 |
| Front Track | 1,520, 1,610, 1,640, 1,670, 1,776, 1,796, 1,805, 1,815 mm |
| Rear Track | 1,490, 1,505, 1,530, 1,560, 1,595, 1,636, 1,645, 1,675, 1,685, 1,695, 1,775, 1,795 mm |
| Fuel Type | Natural gas (NG) |
| Emission Standard | GB17691-2018 China VI |
Body & Cargo Box
| Cargo Body Type | Dropside |
|---|---|

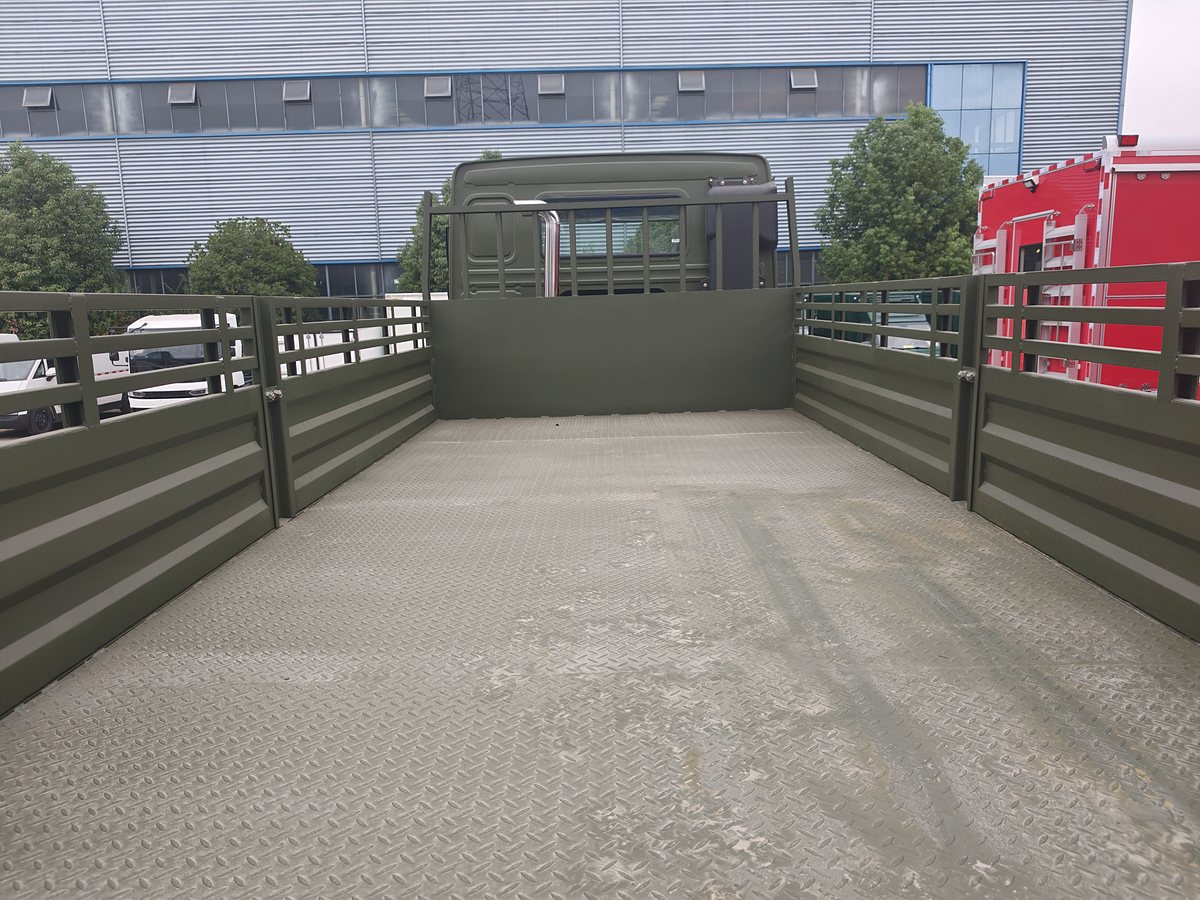

| Cargo Body Inner Dimensions | Length 3,850 – 5,400 mm, width 2,100 – 2,440 mm, side board height 400 – 600 mm (by wheelbase and announcement combination) |

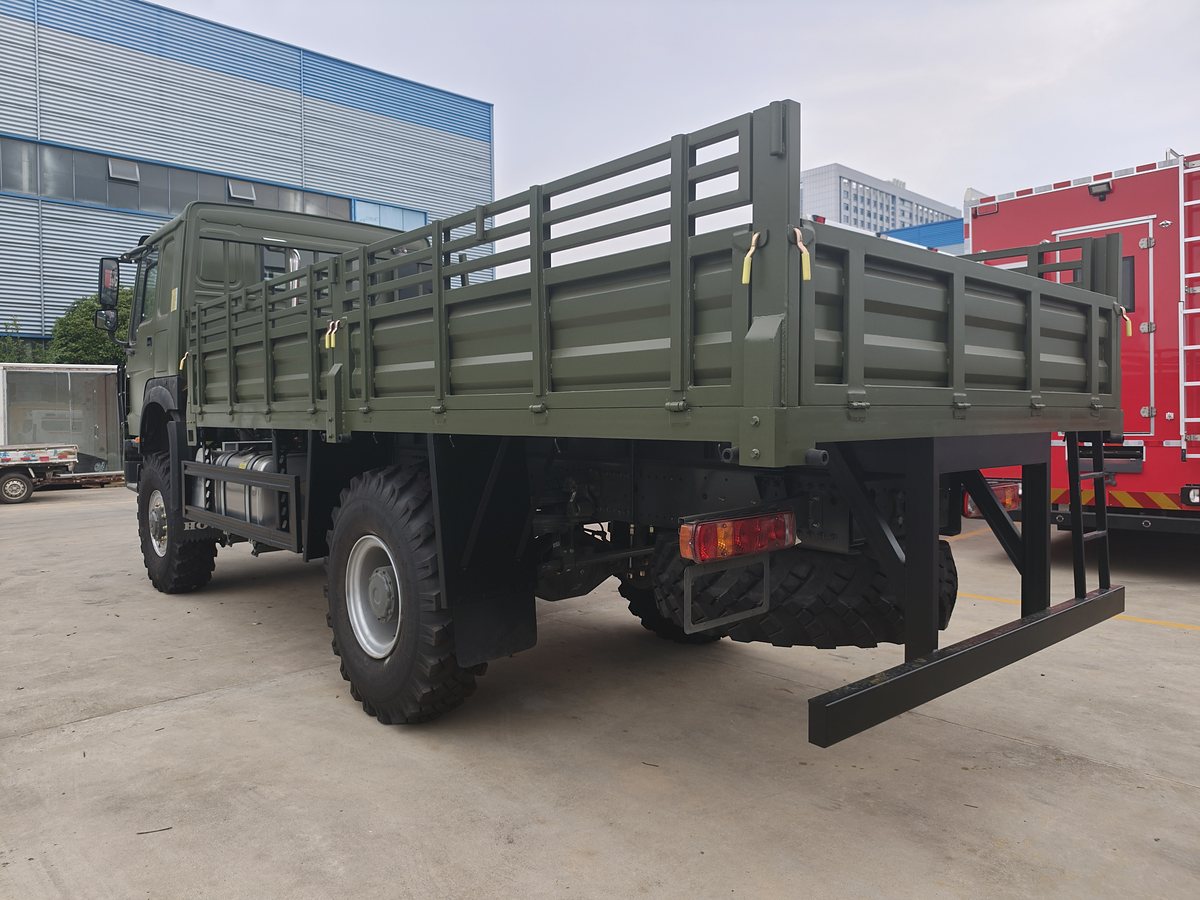

| Side & Rear Guards | Side and rear guards are both Q235A material, both bolted; rear guard section 120 × 60 mm, ground clearance 380 – 490 mm |
| ABS System | CM4XL-4S/4M (Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.) |
| Tachograph | Fitted with GNSS tachograph |
| Production Note | Can be produced with the body installed by a delegated upfitter |
| Optional Configuration | Optional ETC on-board unit; optional lamps, front panel, mirrors, bumper, steps, aluminium alloy rims, sun visor and guard styles; optional gas-cylinder quantity and layout; optional cargo body appearance; optional extended (sleeper) cab |
Engine
| Engine Model | WP3NNG140E60, WP3NNG200E62, WP3NNG200E62A |
|---|---|
| Manufacturer | Weichai (Weifang) Gas Power Co., Ltd. |
| Fuel Type | Natural gas (NG) |
| Displacement | 2,970 ml |
| Power | 103 / 147 / 141 kW |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
