SHACMAN 18t Refuse Compactor Truck
Household waste collection, compaction and transfer
SHACMAN 18t Refuse Compactor Truck

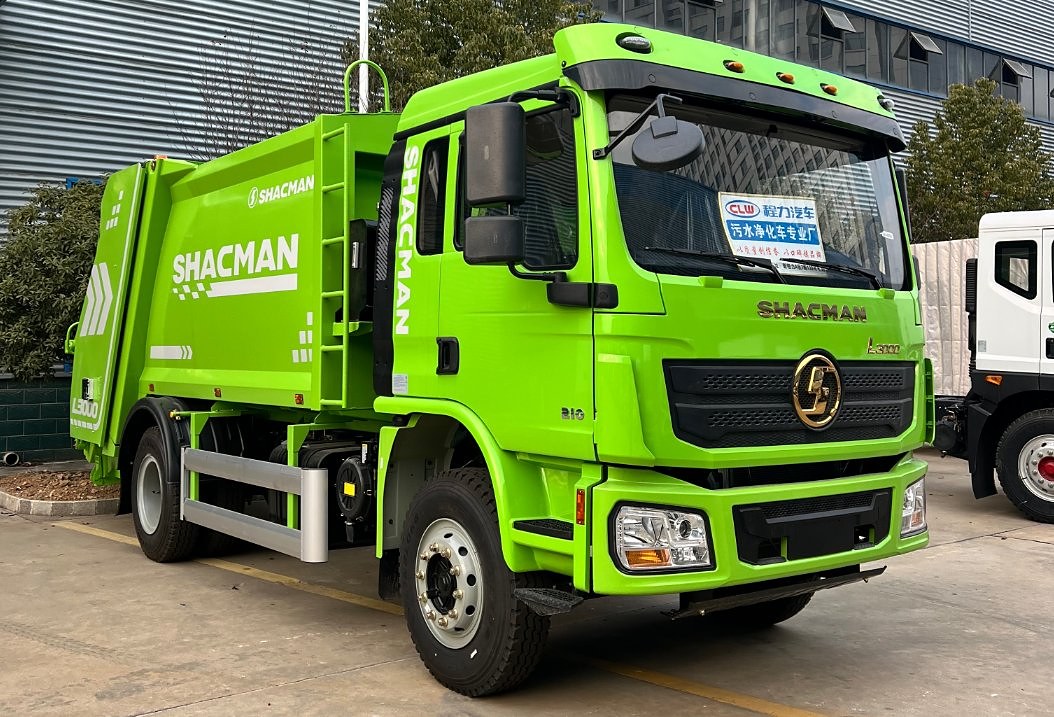

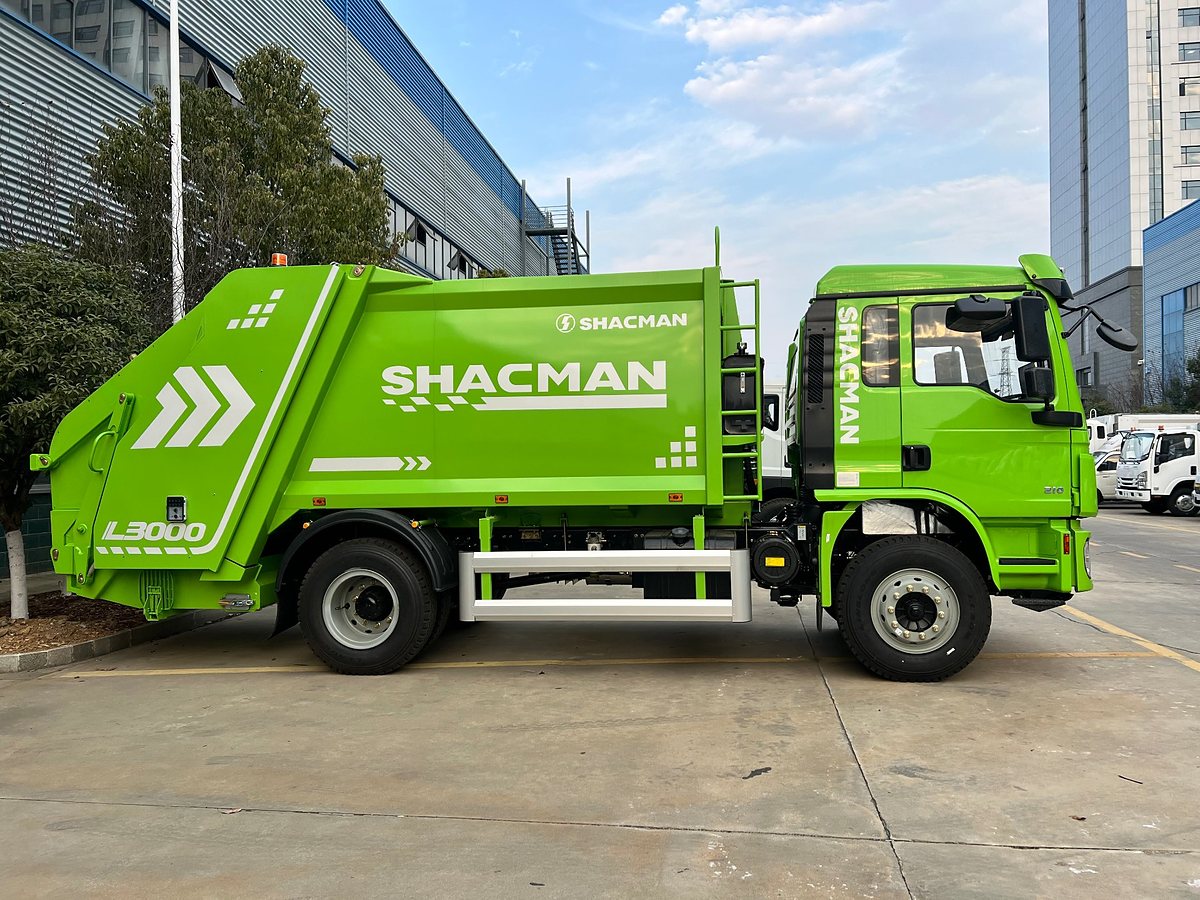

The CLW5180ZYSAHJ refuse compactor is built on a SHACMAN chassis at 18,000 kg GVW, with a sealed compactor body and compression mechanism for household waste collection routes. Rated payload runs from 6,405 to 7,450 kg depending on the body volume selected; overall length ranges from 8,340 to 9,470 mm. Bin lifters for 120/240/660/1,100 L containers, rear or side loading, and odour-sealed tailgates can be specified. It is a core unit for municipal sanitation fleets and private waste contractors.
Specifications
Vehicle Announcement Data
| Model | CLW5180ZYSAHJ |
|---|---|
| Product Name | refuse compactor |
| Product Brand | CHENGLIWEI |
| Announcement Batch | Batch No. 406 |
| Gross Vehicle Weight | 18,000 kg |
| Kerb Weight | 10,420 / 11,000 / 11,400 kg |
| Rated Payload | 6,405 / 6,805 / 6,870 / 7,385 / 7,450 kg |
| Overall Dimensions | 8,340～9,470×2,500 / 2,540×3,300 mm |
| Axle Load | 6,500 / 11,500 kg |
| Max. Speed | 89 km/h |
| Cab Seating Capacity | 2 / 3 persons |
| Approach / Departure Angle | 21° / 11～14° |
Chassis Configuration
| Chassis Model | SX1189LA1F1C |
|---|---|
| Chassis Brand | SHACMAN |
| Chassis Manufacturer | Shaanxi Automobile Group Co., Ltd. |
| Wheelbase | 4,700 mm (also 4,500 / 5,100 mm) |
| Axles / Tyres | 2 axles / 6 tyres |
| Tyre Size | 10.00R20 18PR、11R22.5 18PR、295/80R22.5 18PR |
| Leaf Spring Count | 10/9+6, 3/4+3, 7/7+3 etc. |
| Front Track | 1,935 / 1,960 mm |
| Rear Track | 1,860 mm |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 China VI |
Special Equipment & Superstructure
| Special Equipment | body and compaction system |
|---|---|
| Intended Use | household waste collection and removal |
| Optional Equipment | bin lifterequipment (includingsealed cover) , skip loaderequipment, fully sealed hopperequipment, swing armequipment |
| Guards | side guardMaterial Q235A carbon steel, welded connection；rear guardbyspecialequipmentreplaced，lower edge above ground 500 mm |
| ABS System | Xi'an Zhengchang Electronics Co., Ltd. ZQFB-V |
Engine
| Optional Engines | YCS06270-60, WP6H270E61, B6.2NS6B230, WP4.6NQ220E61, YCS04200-68 and other models |
|---|---|
| Power Range | 140～199 kW |
| Fuel Consumption | 22.38～26.72 L/100km (by engine model) |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
