HOWO 18t Bitumen Distributor (Asphalt Sprayer)

Bitumen spraying for high-grade highway construction and road maintenance

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Front-left 45° view
Front-left 45° view

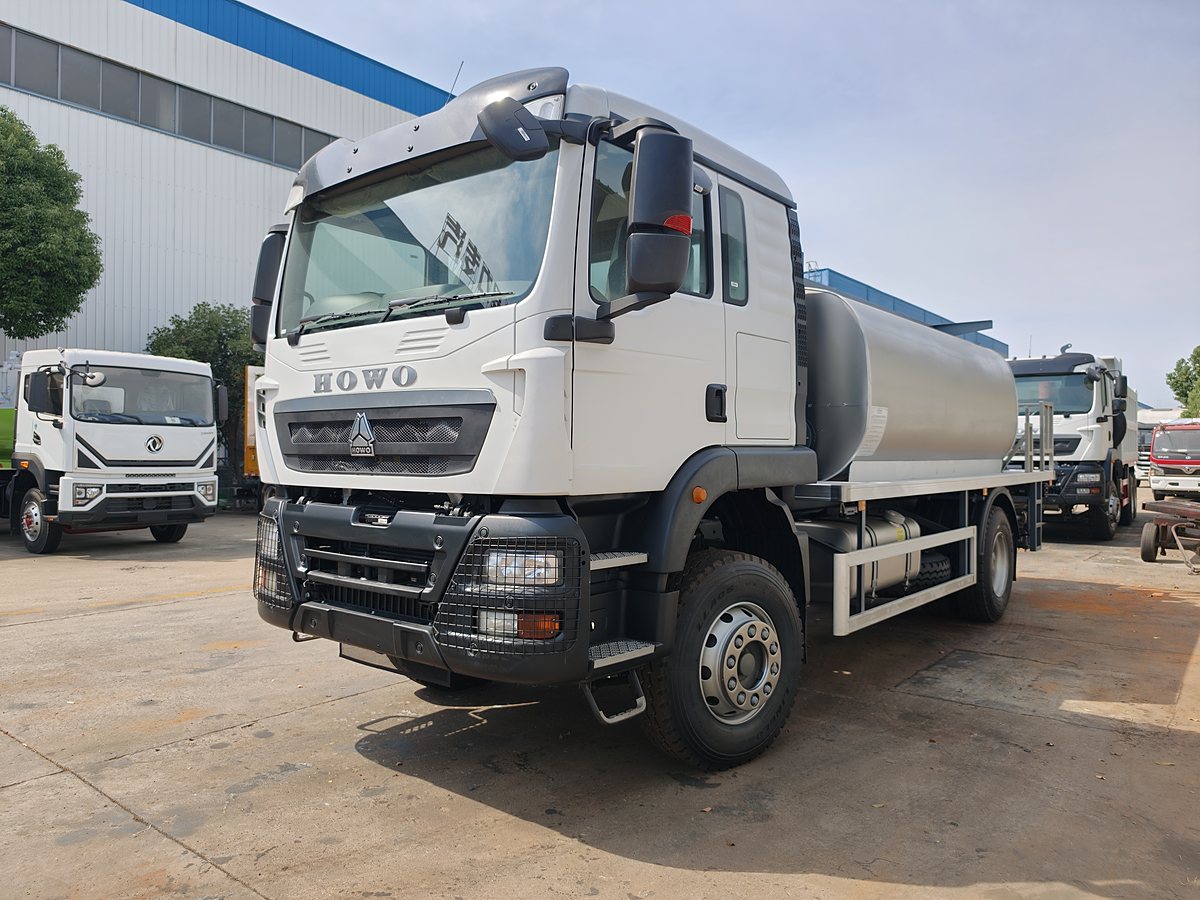

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Front-right 45° view
Front-right 45° view

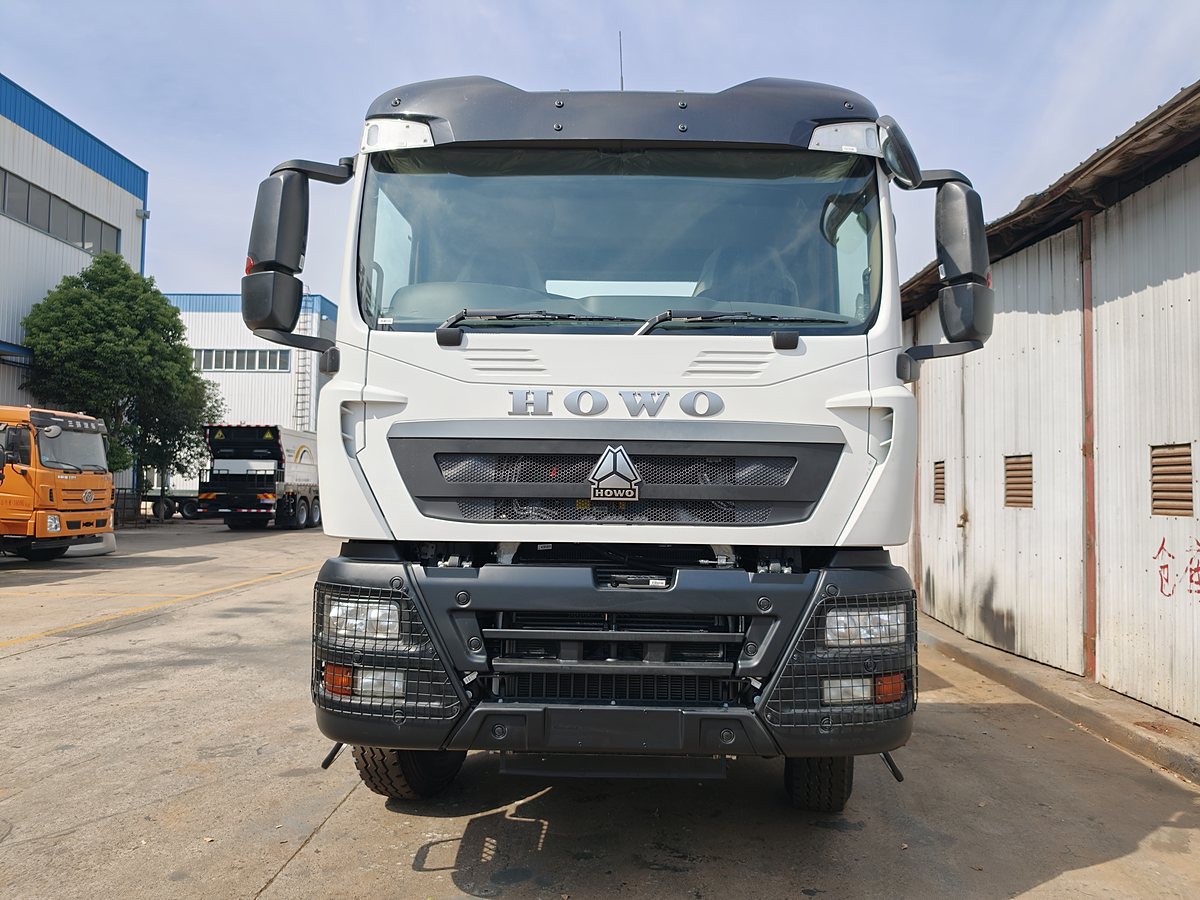

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Front view of cab
Front view of cab

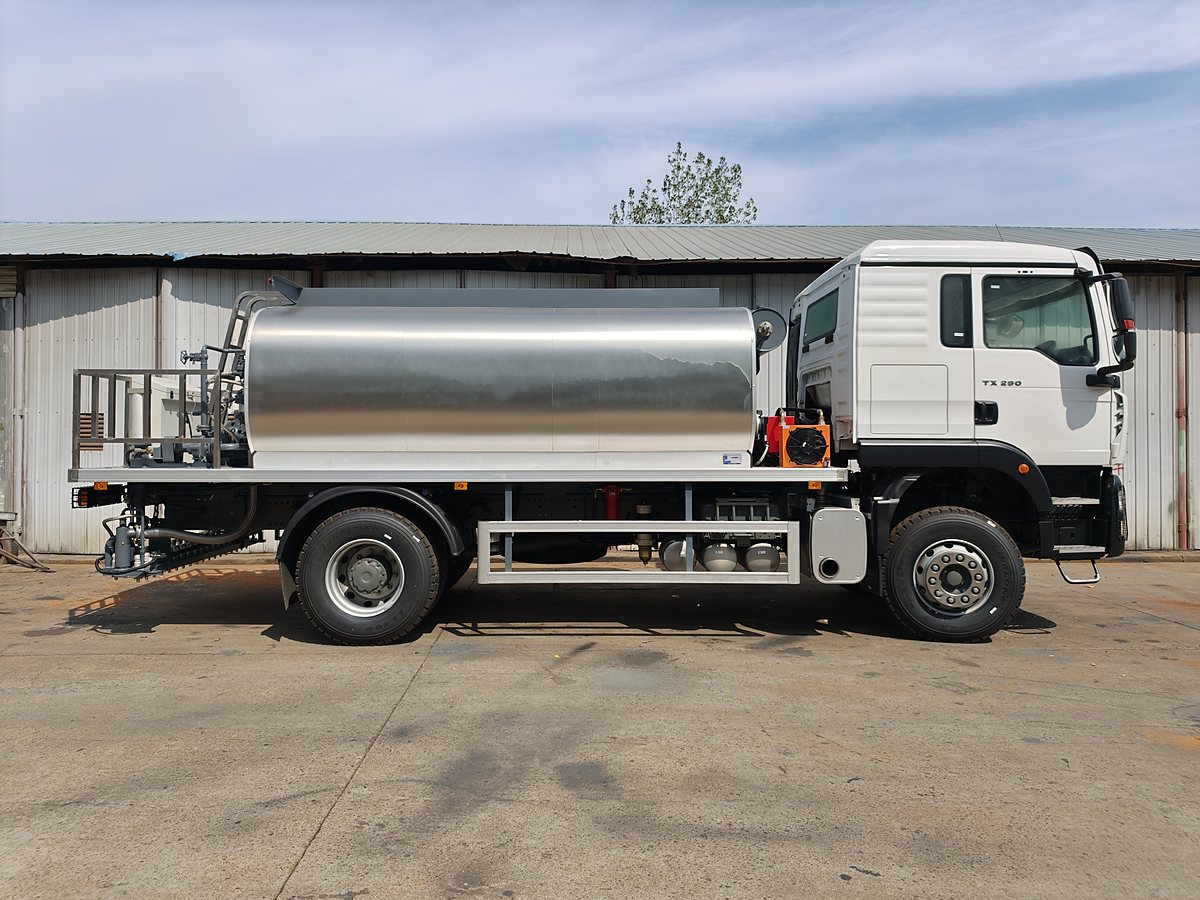

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Full side view
Full side view

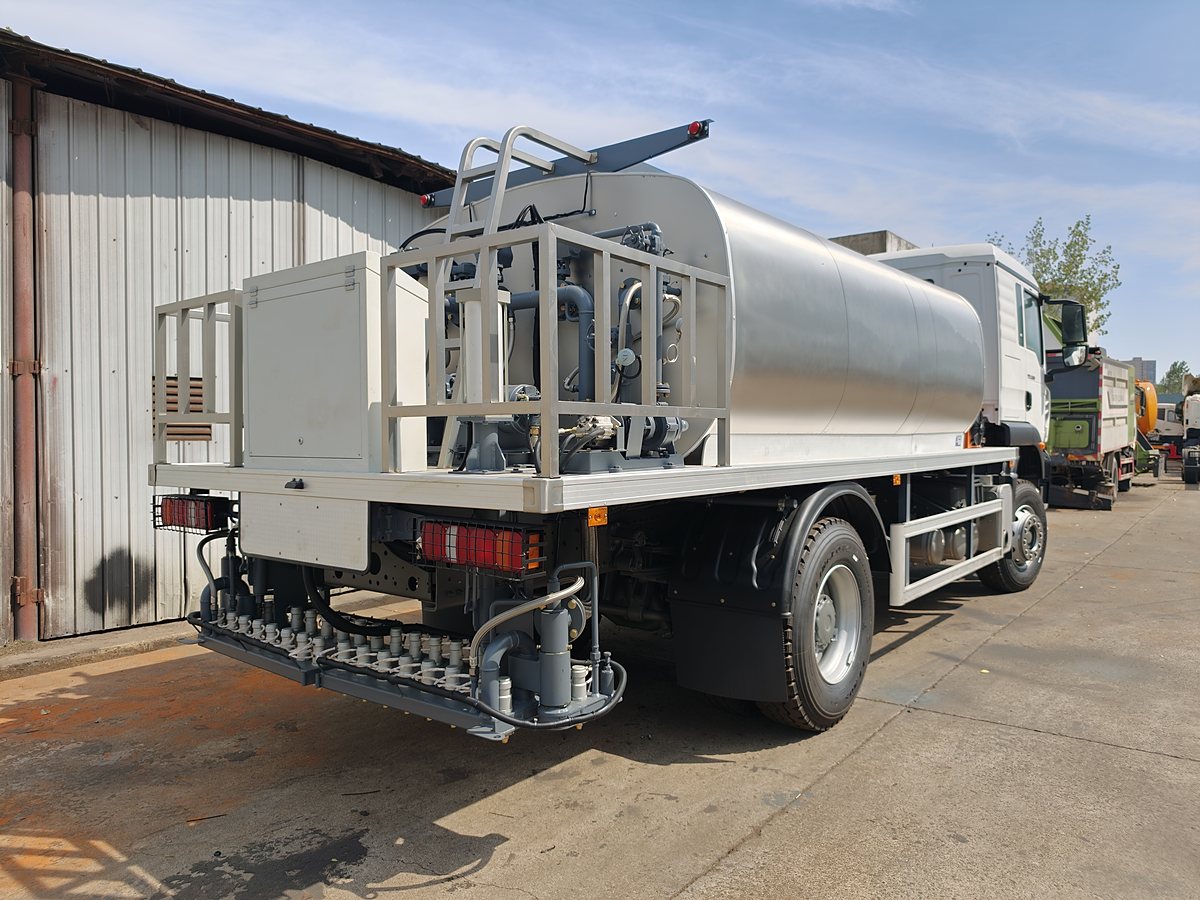

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Rear-left 45° view of spraying system
Rear-left 45° view of spraying system

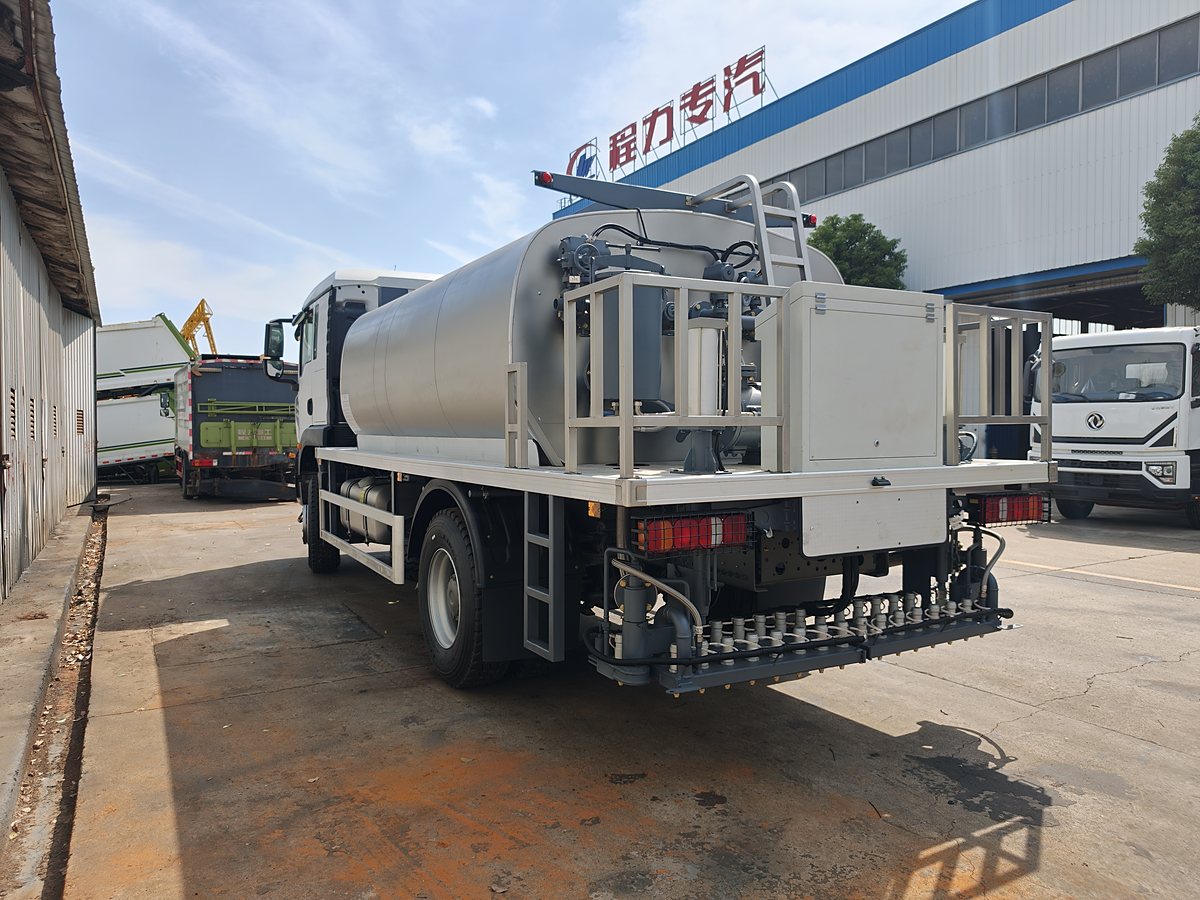

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Rear section and work platform
Rear section and work platform

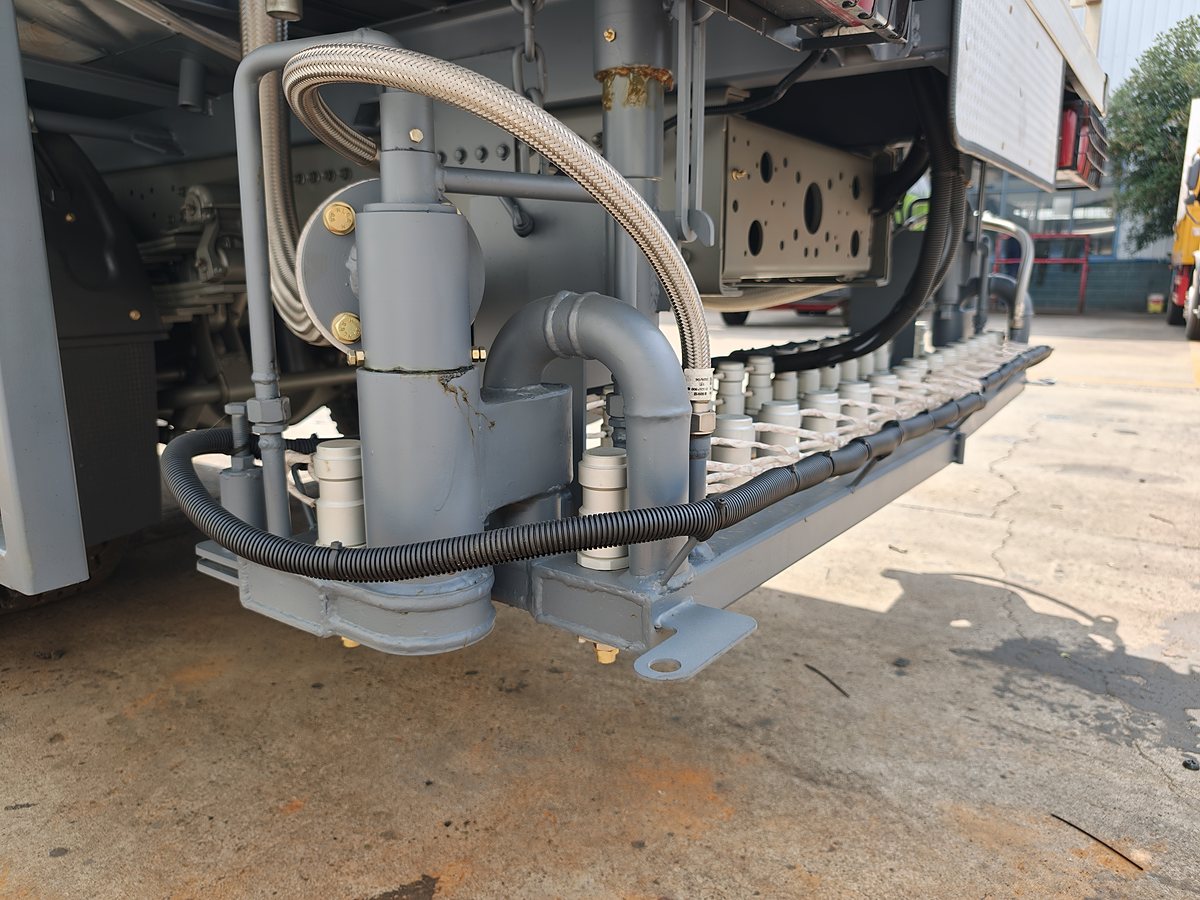

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Bitumen spray bar and nozzles
Bitumen spray bar and nozzles

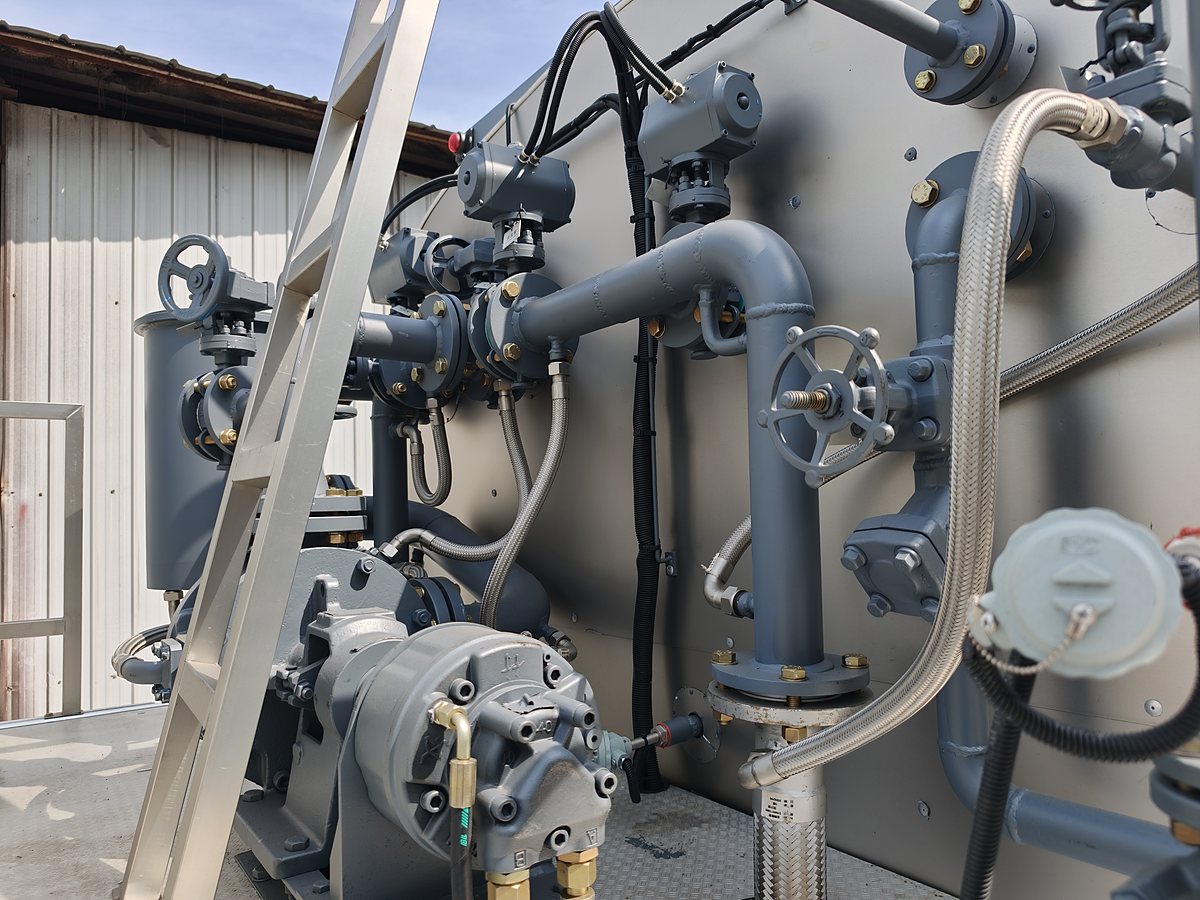

HOWO 18t Bitumen Distributor (Asphalt Sprayer) — Tank piping, bitumen pump and valves
Tank piping, bitumen pump and valves
Rear bitumen spray bar and nozzles
Bitumen tank and side guard
Front view of cab

HOWO 18t Bitumen Distributor (Asphalt Sprayer)

The CL5181GLQ6LS bitumen distributor is built on a HOWO chassis at 18,000 kg GVW, with an 8.86 m³ insulated bitumen tank (120 mm insulation layer) and a full spraying system. It is designed for tack coat, prime coat and chip seal work on new highway construction as well as routine road maintenance. Tank heating, circulating pump, spray bar with individually controlled nozzles and a hand-spray lance support both wide-width mechanised work and patch repair. Rated payload is 7,670 / 7,605 kg depending on configuration.

Specifications

Vehicle Announcement Data

ModelCL5181GLQ6LS
Announcement BatchBatch No. 384
Product BrandCHENGLI
Product NameBitumen distributor
Gross Vehicle Weight18,000 kg
Kerb Weight10,200 kg
Rated Payload7,670 / 7,605 kg
Overall Dimensions (L × W × H)8,600 / 8,800 × 2,530 × 3,250 mm
Wheelbase (as announced)4,500 / 4,700 mm
Front / Rear Overhang1,550 / 2,550 mm
Approach / Departure Angle17° / 11°
Axle Load6,500 / 11,500 kg
Max. Speed89 / 102 km/h
Cab Seating Capacity2 / 3 persons

Bitumen Tank & Spraying System

Tank Total Capacity8.86 m³
Tank Effective Volume8.45 m³
Tank Dimensions (L × major axis × minor axis)4,500 × 2,400 × 1,650 mm
Tank Insulation Thickness120 mm
Spraying MediumLiquid bitumen, density 900 kg/m³
Main Special EquipmentBitumen tank and spraying system
Working ScenariosBitumen spraying for high-grade road construction

Chassis Configuration

Chassis ModelZZ1187K511JF1
Chassis DesignationCargo truck chassis
Chassis BrandHOWO
Chassis ManufacturerSinotruk Jining Commercial Vehicle Co., Ltd.
Axles / Tyres2 axles / 6 tyres
Wheelbase (chassis options)3,800 / 4,200 / 4,500 / 4,700 / 5,100 / 5,300 / 5,600 / 5,800 / 6,000 mm
Tyre Size10.00R20 18PR, 11R22.5 18PR, 11.00R20 18PR, 12R22.5 18PR, 295/80R22.5 18PR and 9 options in total
Leaf Spring Count22 combinations of multi-leaf and parabolic springs available (e.g. 3/4, 4/9+6, 9/9+6, -/2+-)
Front / Rear Track1,956 / 2,022 / 2,058 / 1,996 mm；1,800 / 1,830 / 1,860 mm
Fuel TypeDiesel
Emission Standard BasisGB17691-2018 China VI
ABS Model446 004 6,300 (ZF Commercial Vehicle Systems (Qingdao) Co., Ltd.)
CabCab optional with chassis

Guards & Safety

Side GuardQ235 steel, welded
Rear GuardReplaced by special equipment, lower edge 480 mm above ground
Speed LimiterOptional, speed limited to 89 km/h

Engine

Optional Engines (12 models)Sinotruk MC07.25-61 / MC07.27-61 / MC07.29-61, MC05H.28-61 / MC05H.26-61 / MC05H.24-61；Weichai WP4.6NQ240E62, WP5NQ245E62, WP5H300E62 / WP5H280E62, WP7S270E62 / WP7S300E62
Displacement Range4,580 ～ 6,870 ml
Max. Power Range176 ～ 221 kW
Fuel / EmissionDiesel, China VI

Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
