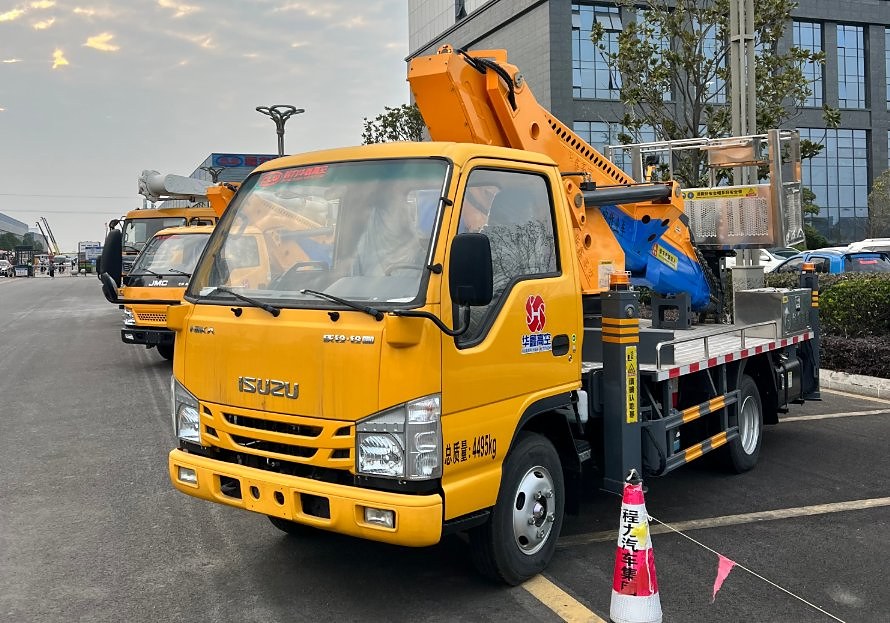

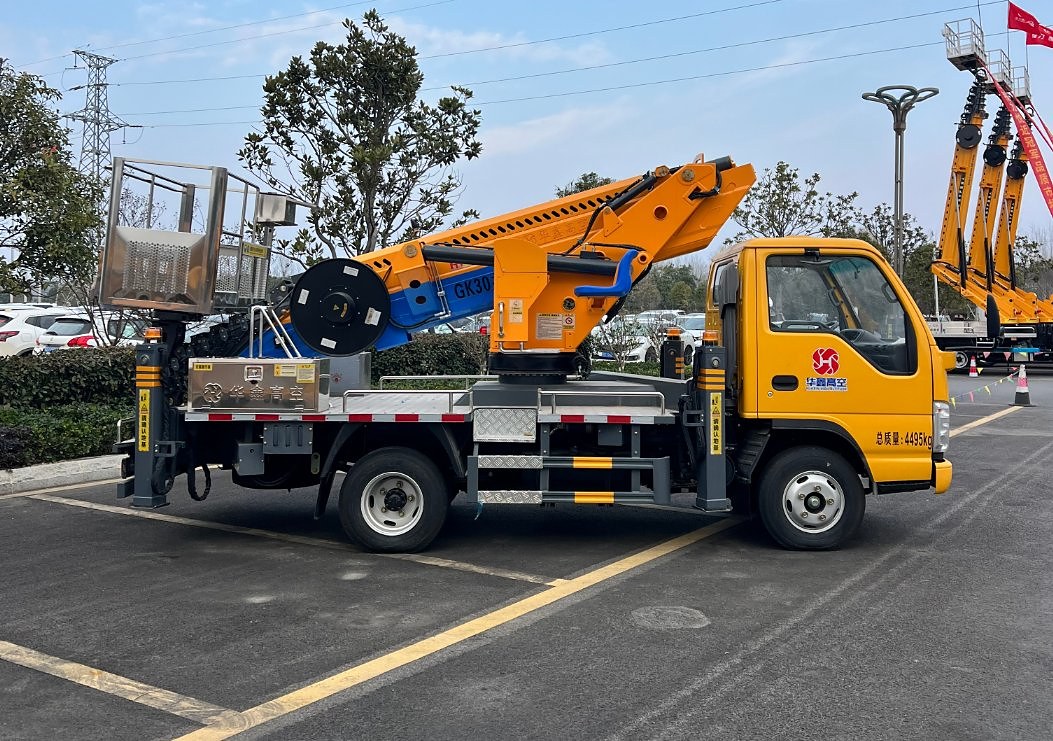

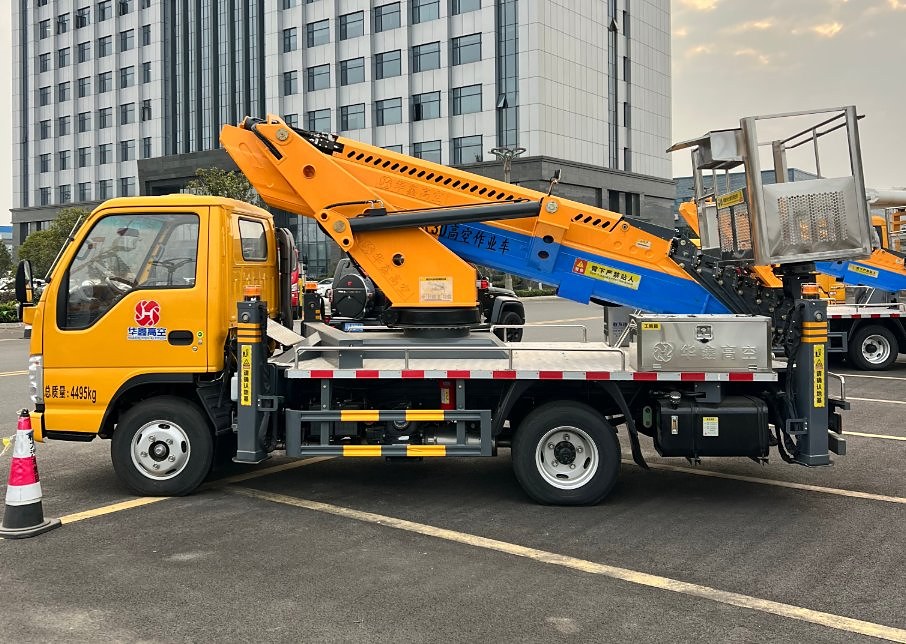

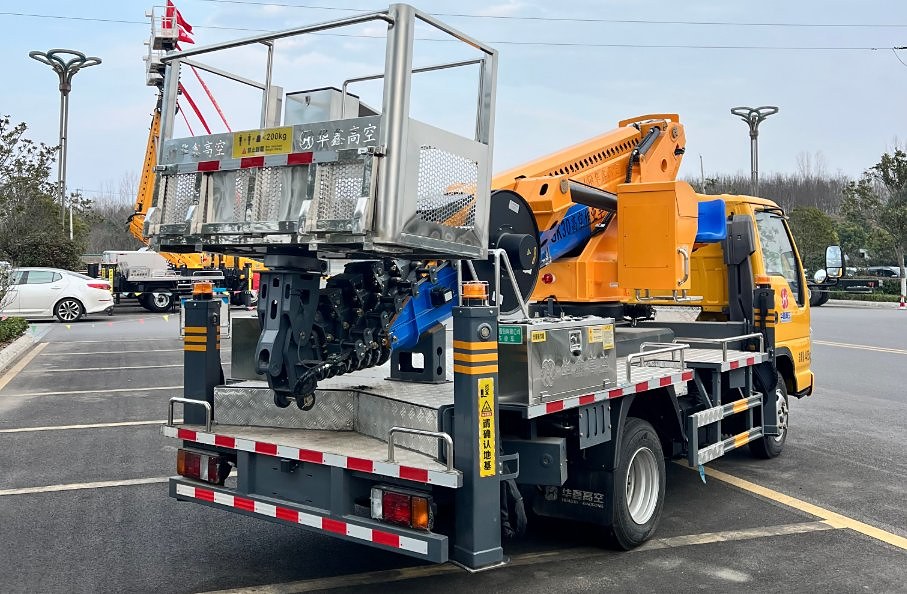

QINGLING 4.5t Aerial Work Platform Truck
The CL5049JGK6ADS is a light-duty 4.5-tonne aerial work platform truck built on a QINGLING (ISUZU-technology) chassis, 5,998 mm long and China VI compliant — the right size for city utilities and contractors who need to work at height without moving a heavy truck into dense traffic. The special equipment consists of the aerial platform and boom assembly. Compact footprint, low fuel consumption and a light-vehicle driving licence class in most markets make it one of the most requested units for municipal fleets.
Specifications
Vehicle Announcement Data
| Model | CL5049JGK6ADS |
|---|---|
| Product Name | Aerial work platform truck |
| Product Brand | CHENGLI |
| Announcement Batch | Batch No. 405 |
| Gross Vehicle Weight | 4,495 kg |
| Kerb Weight | 4,365 kg |
| Overall Dimensions | 5,998×2,030 / 2,090×2,690～3,400 mm |
| Axle Load | 1,650 / 2,845 kg |
| Max. Speed | 105 km/h |
| Cab Seating Capacity | 2 persons |
| Approach / Departure Angle | 24° / 12° |
| Front / Rear Overhang | 1,015 / 1,783 mm、1,100 / 1,698 mm |
Chassis Configuration
| Chassis Model | QL1041DCFAY |
|---|---|
| Chassis Brand | QINGLING |
| Chassis Manufacturer | Qingling Motors Co., Ltd. |
| Wheelbase | 2,800 / 3,000 mm |
| Axles / Tyres | 2 axles / 6 tyres |
| Tyre Size | 6.50R15LT 8PR, 7.00R16LT 8PR, 195/75R16C etc. |
| Leaf Spring Count | 1/1+1, 3/3+2, 8/6+5 etc. |
| Front Track | 1,377 / 1,390 / 1,435 / 1,485 / 1,504 mm |
| Rear Track | 1,395 / 1,425 / 1,460 / 1,525 mm |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 China VI |
Special Equipment & Superstructure
| Special Equipment | aerial platform and boom |
|---|---|
| Intended Use | power line repair, telecoms line maintenance, street-light service 等 aerial work |
| Rear Extension | 400 mm |
| Guards | side is Q235 carbon steelside skirtstructure；rear under-run guardsection 50×100 mm，ground clearance 390 mm |
| ABS System | QLJJABS-HP24V-85 / CM4YK (Chongqing Qingling Automotive Machined Parts Co., Ltd., Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.) |
| Optional Configuration | ETC on-board unit, superstructureappearancestyle, work basketstyle, turntablecontrol cabinstyle, winch and sensorstyle, cab and wheel hubstyleetc. |
Engine
| Engine Model | D20TCIF15、D20TCIF63、D20TCIF64、D20TCIF61、4KB1-TCG60 |
|---|---|
| Displacement | 1,999 / 2,499 ml |
| Power Range | 90～103 kW |
| Manufacturer | Kunming Yunnei Power Co., Ltd., Isuzu (China) Engine Co., Ltd. |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
