DONGFENG 7.8t Aerial Work Platform Truck
Aerial maintenance of power, telecoms and street-lighting infrastructure
DONGFENG 7.8t Aerial Work Platform Truck

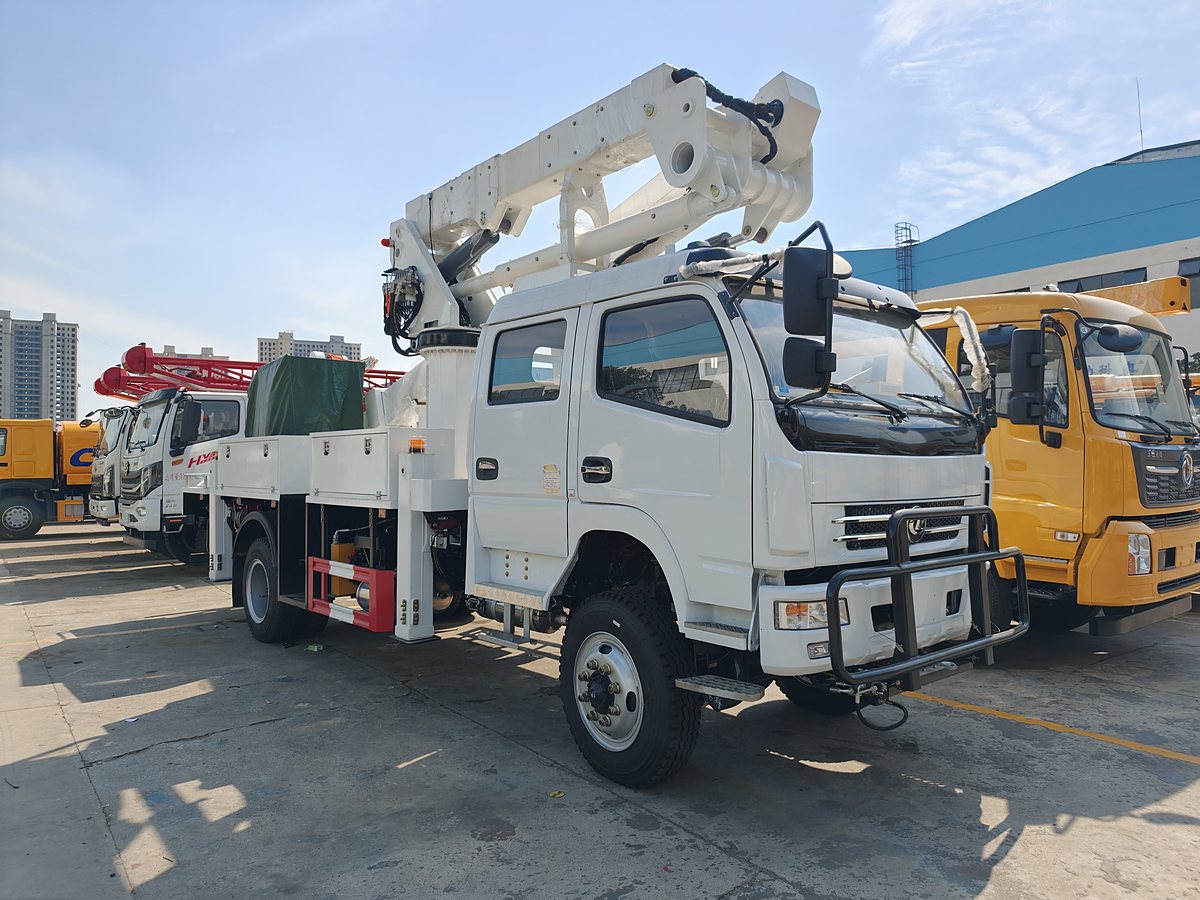

The CLW5080JGKCDP is a compact 7.8-tonne aerial work platform truck on a DONGFENG chassis, measuring 8,450 × 2,180 × 3,550 mm. Its main equipment is the articulating boom and aerial work platform, making it a practical choice for municipal maintenance crews working on power lines, telecoms cables and street lighting in narrow urban streets. The lighter 7,835 kg GVW keeps licensing and operating costs low while still carrying a full crew and tools. Export configurations including RHD, warning livery and manuals in the destination language are available.
Specifications
Vehicle Announcement Data
| Model | CLW5080JGKCDP |
|---|---|
| Announcement Batch | Batch No. 408 |
| Product Brand | CHENGLIWEI |
| Product Name | Aerial work platform truck |
| Gross Vehicle Weight | 7,835 kg |
| Kerb Weight | 7,640 / 7,705 kg |
| Cab Seating Capacity | 2 / 3 persons |

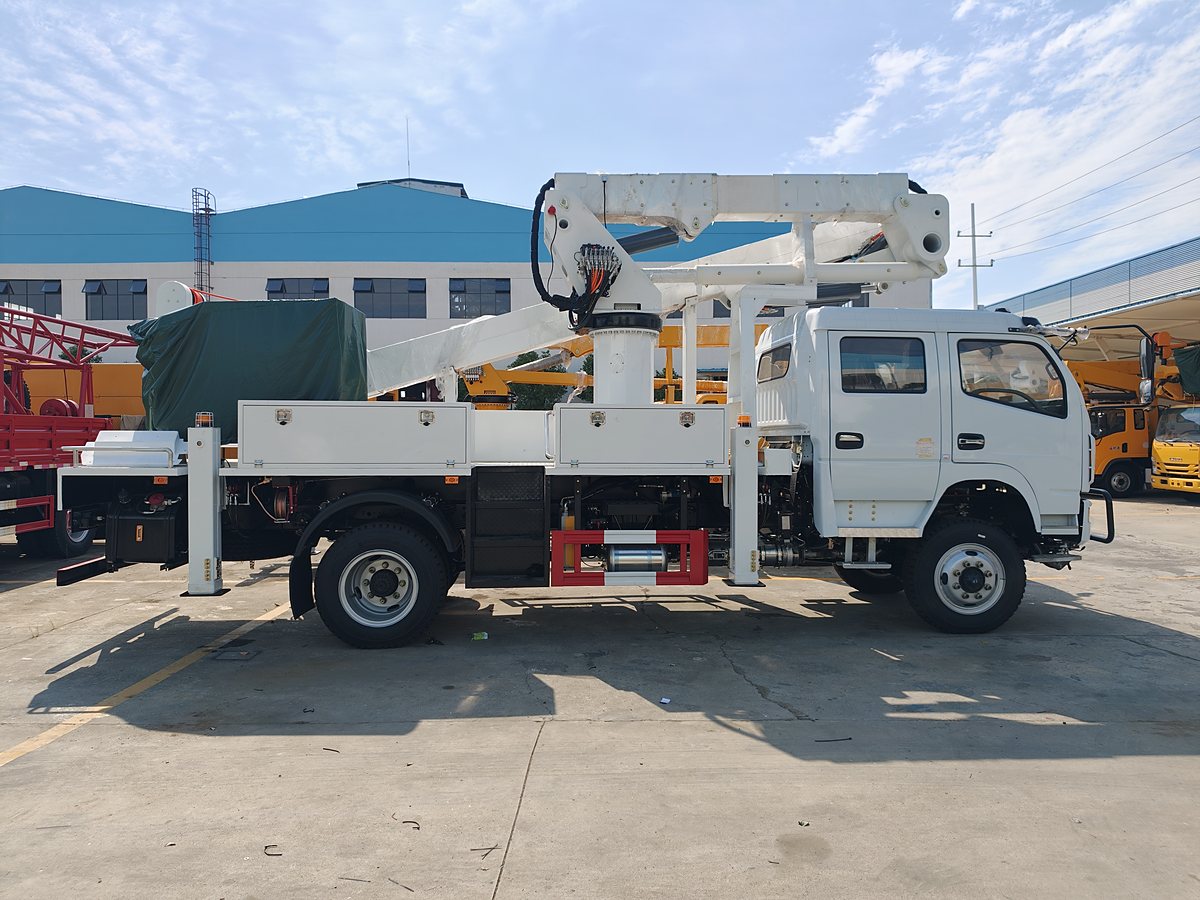

| Overall Dimensions (L × W × H) | 8,450 × 2,180 × 3,550 mm |
| Front Extension / Wheelbase / Rear Extension | 520 / 3,800 / 1,030 mm |
| Approach / Departure Angle | 23° / 14°、21° / 15° |
| Front / Rear Overhang | 1,130 / 1,970；1,180 / 1,920；1,317 / 1,783；1,310 / 1,790（mm） |
| Axle Load | 3,200 / 4,635 kg |
| Max. Speed | 103 / 89 km/h |
Superstructure & Working Equipment

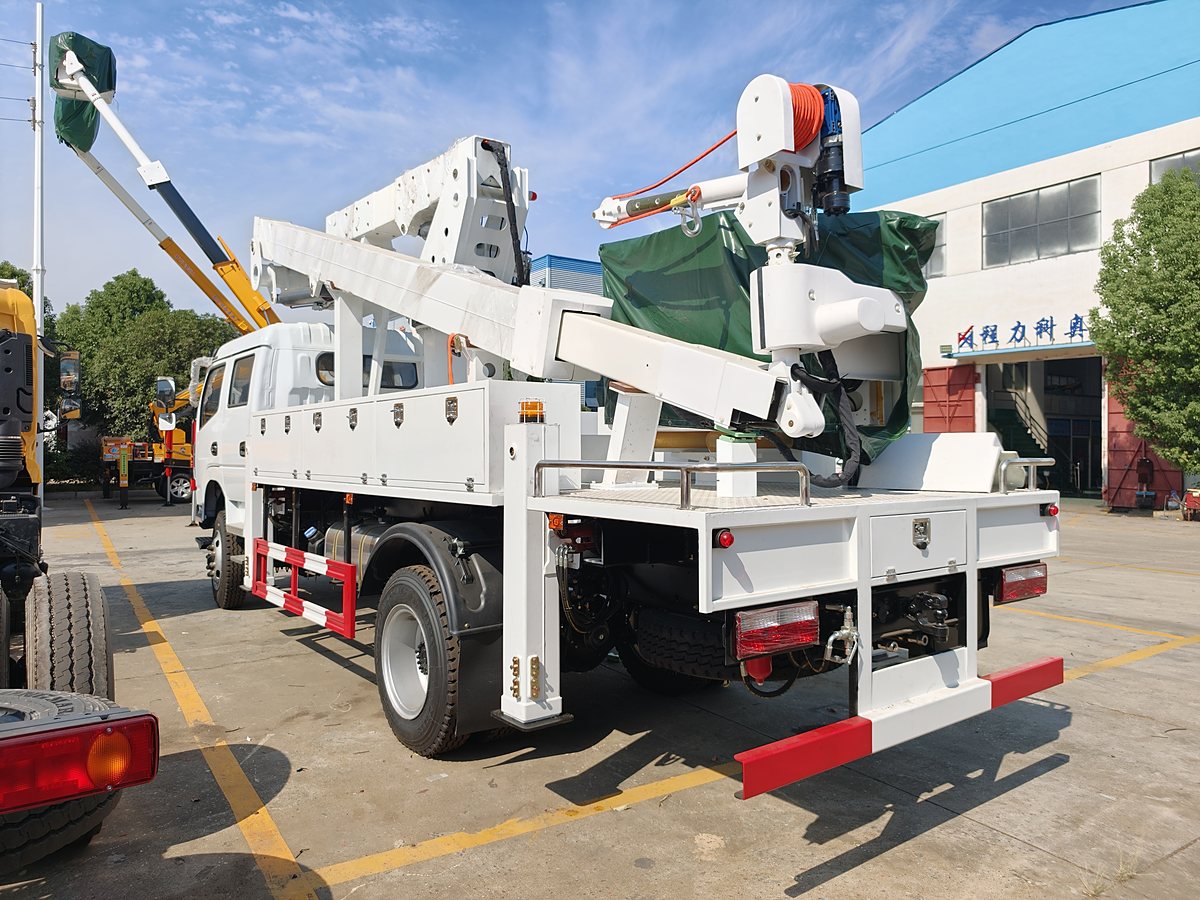

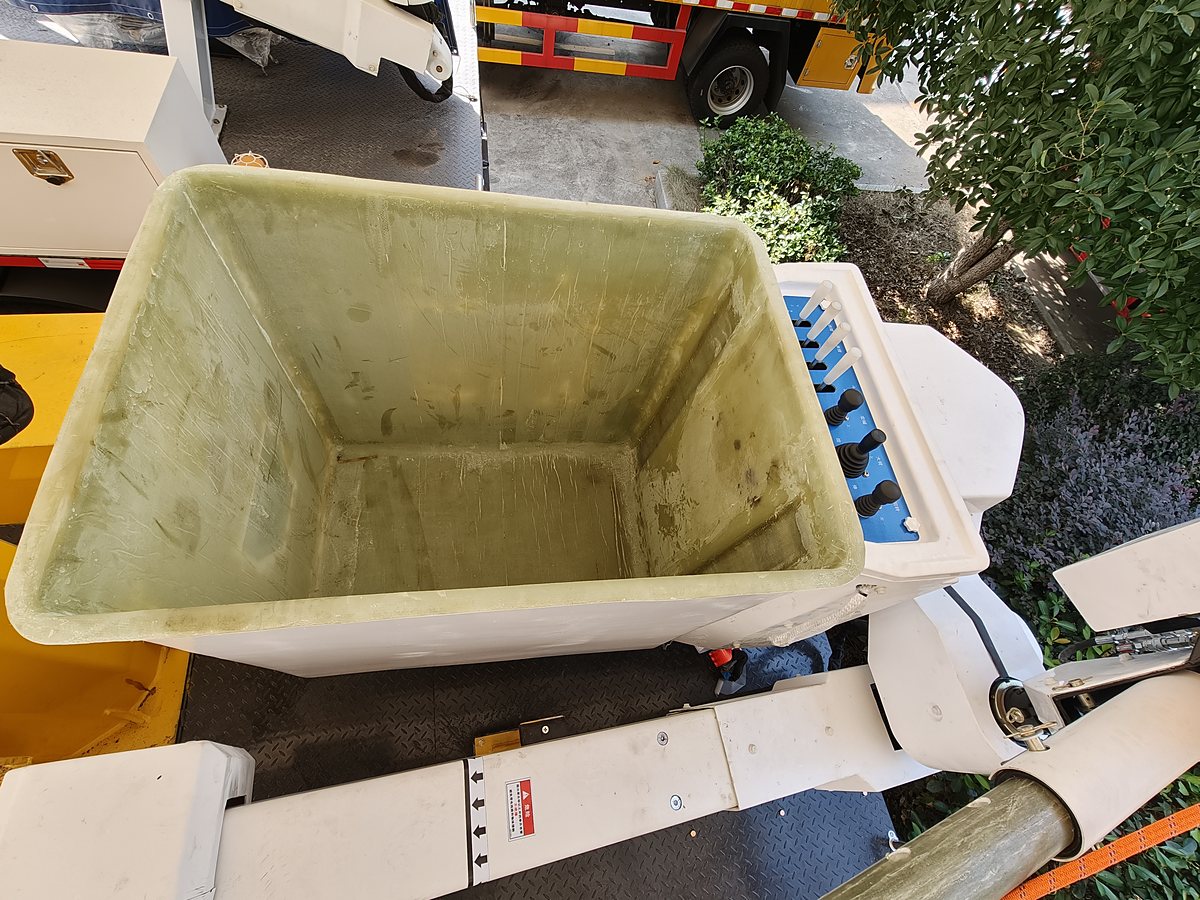

| Main Equipment | Boom and aerial work platform |
|---|---|
| Application | Aerial maintenance of power lines, telecoms and street lighting |
| Side Guard | Q235B carbon steel; side guards bolted on both sides |

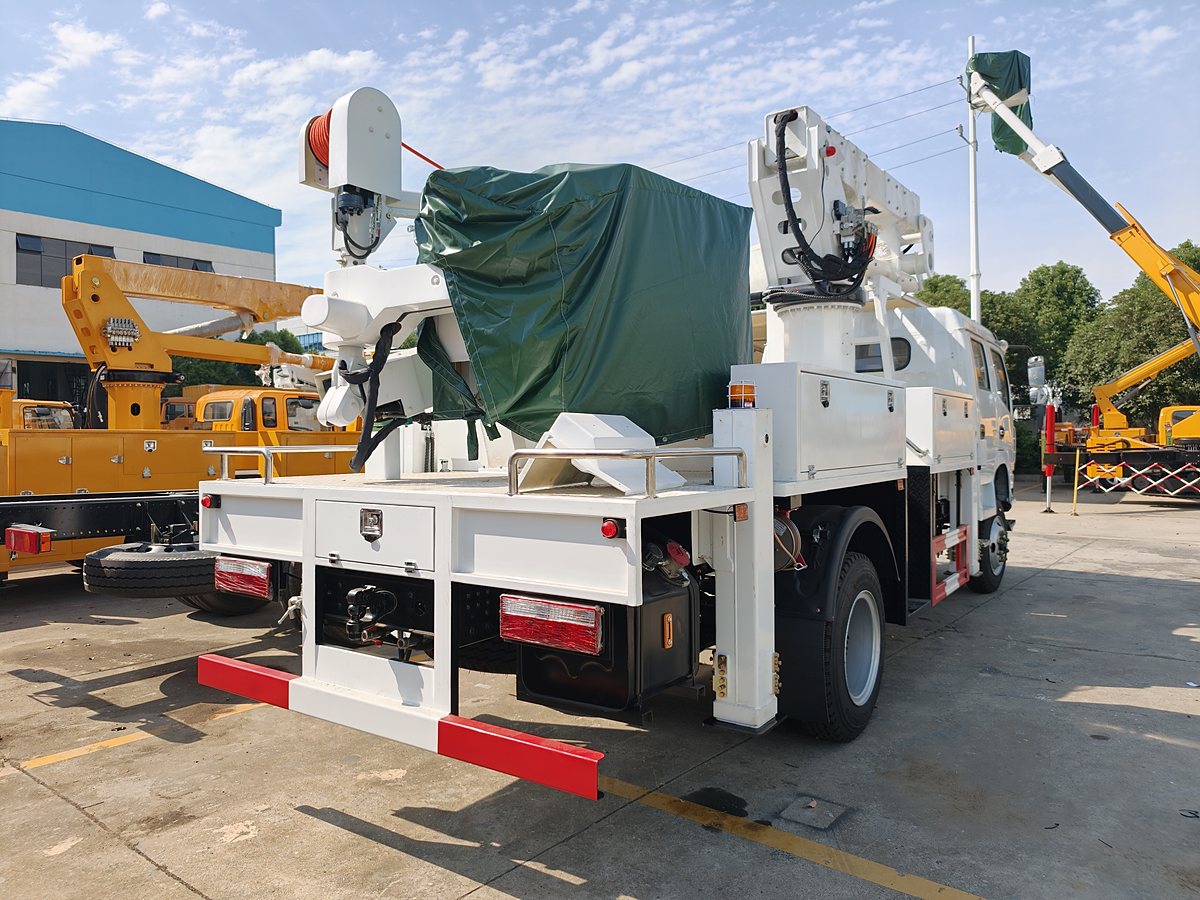

| Rear Guard | Q235B carbon steel, welded; section 120 × 60 mm, ground clearance 495 mm |
| ABS System | ABS/ASR-24V-4S/4M (Xiangyang Dongfeng Longcheng Machinery Co., Ltd.) |
Chassis Configuration
| Chassis Model | EQ1125SJ8CDC |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | DONGFENG |
| Chassis Manufacturer | Dongfeng Automobile Co., Ltd. |
| Axles / Tyres | 2 axles / 6 tyres |
| Wheelbase (chassis options) | 3,600 / 3,800 / 3,950 / 4,050 / 4,100 / 4,200 / 4,400 / 4,700 mm |
| Tyre Size (as announced) | 245/70R19.5、245/70R19.5 16PR、8.25R20 16PR、8.25R20 14PR |
| Tyre Size (chassis options) | Also 8.25R20, 255/70R22.5 16PR, 275/70R22.5 16PR |
| Leaf Spring Count | 8/10+7、12/12+9 |
| Front / Rear Track | 1,745 / 1,765 / 1,802 / 1,820 / 1,842 / 1,890 / 1,920 mm；1,630 / 1,650 / 1,720 / 1,800 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
| Cab | Cab style optional with chassis |
Engine
| Optional Engines (21 models) | Yuchai YCY30165-60 / YCS04190-68 / YCY30170-60；Yunnei D30TCIF1 / D25TCIF1 / D40TCIF1 / YN25PLUS160B；DONGFENGCummins D4.0NS6B185 / D4.0NS6B195 / D4.0NS6B170 / D4.0NS6B160 / D3.0NS6B210；FAW CA4DD2-18E6-30 / CA4DB2A16E68 / CA4DB2-17E68；Quanchai H30-165E60 / Q28-156E60 / Q25D-160E60 / HQ30A-182E60；DONGFENGlight-duty ZD30D16-6N；Chaochai NV30-C6C |
|---|---|
| Displacement Range | 2,440 ～ 4,156 ml |
| Max. Power Range | 110 ～ 155 kW |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
