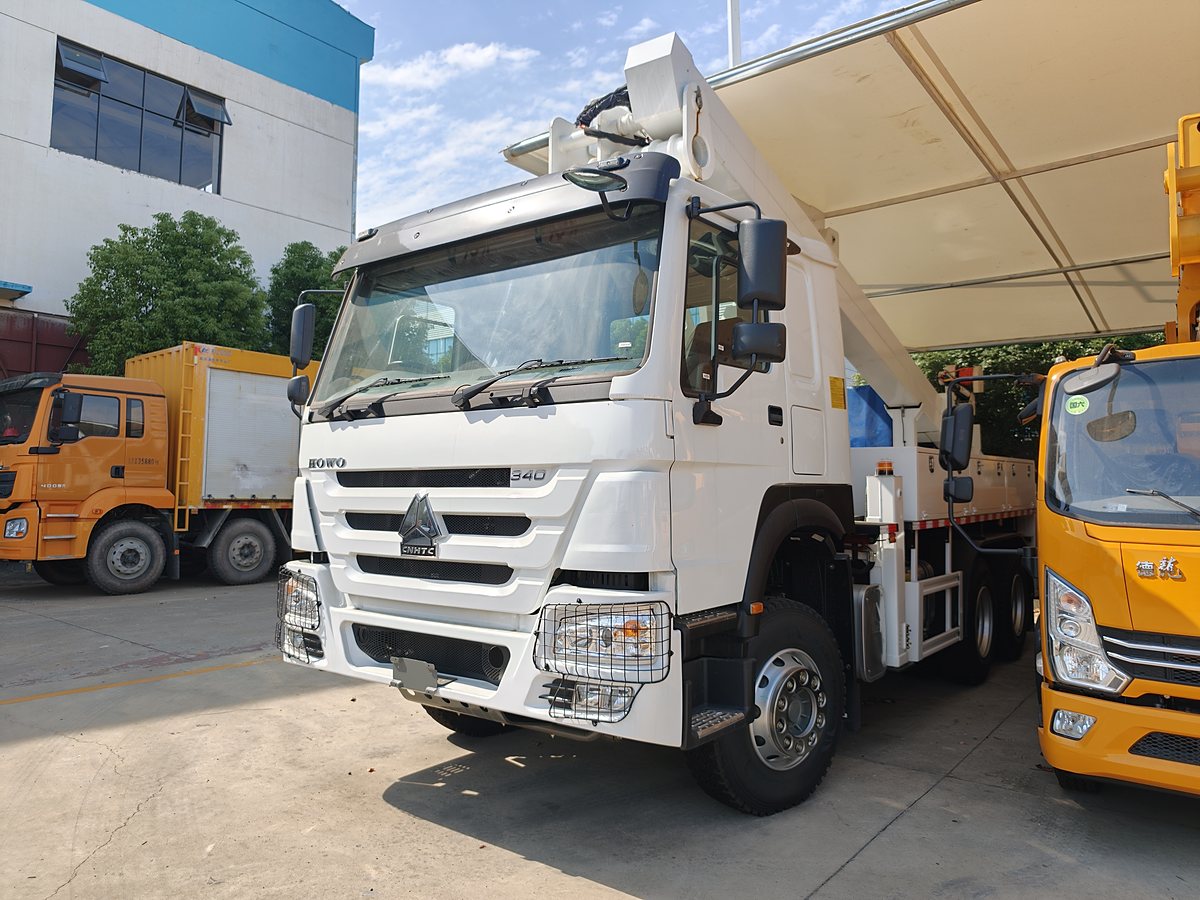

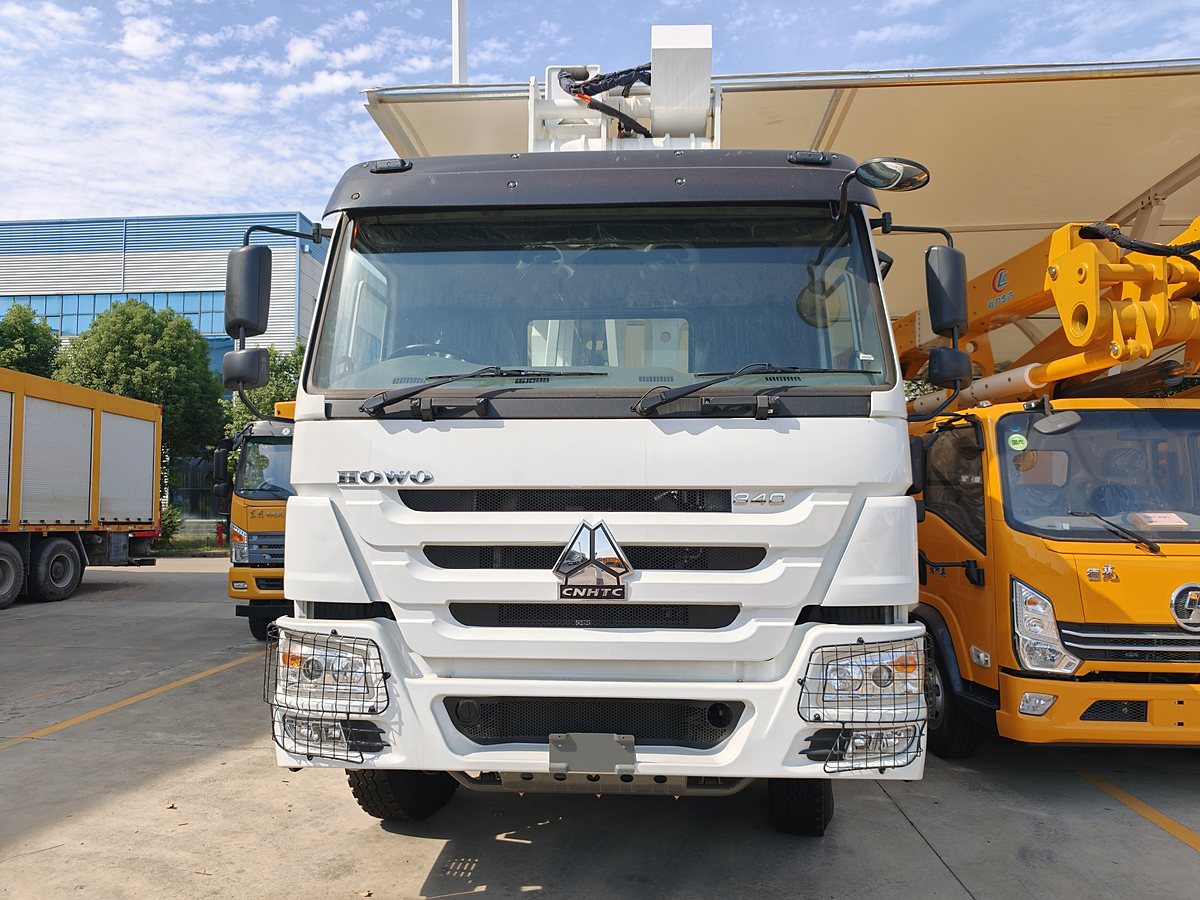

HOWO 25t Aerial Work Platform Truck
The CLW5250JGKZ6 aerial work platform truck is built on a HOWO ZZ1257N464GF1 cargo chassis with 3 axles and 10 tyres, at a 25,000 kg gross vehicle weight and 11,750 × 2,500 × 3,995 mm overall dimensions. The superstructure combines a hydraulic system, telescopic/folding boom, turntable, work basket and outriggers to position operators safely at working height. Typical duties include power line repair, telecoms maintenance, street lighting service and building facade work. Right-hand drive, signage language and destination-country compliance can be adapted on order.
Specifications
Vehicle Announcement Data
| Model | CLW5250JGKZ6 |
|---|---|
| Announcement Batch | Batch No. 349 |
| Product Brand | CHENGLIWEI |
| Product Name | Aerial work platform truck |
| Gross Vehicle Weight | 25,000 kg |
| Kerb Weight | 24,870 / 24,805 kg |
| Cab Seating Capacity | 2 / 3 persons |
| Overall Dimensions (L × W × H) | 11,750 × 2,500 × 3,995 mm |
| Front Extension | 390 mm |
| Approach / Departure Angle | 19° / 10° |
| Front / Rear Overhang | 1,430 / 2,780 mm |
| Axle Load | 7,000 / 18,000 kg (tandem axle group) |
| Max. Speed | 110 km/h |
Superstructure & Working Equipment
| Structure | Hydraulic system, boom, turntable, work platform, outriggers |
|---|---|
| Side Guard | Q235A carbon steel, welded |
| Rear Under-Run Guard | Q235A carbon steel, welded; section 120 × 60 mm, ground clearance 450 mm |
| ABS System | 4,460,046,300 (WABCO (Shanghai) Management Co., Ltd.) |
| Restricted Configuration | Wheelbase restricted to 5,800+1,350 mm; engine restricted to WP8.350E61 |
Chassis Configuration
| Chassis Model | ZZ1257N464GF1 |
|---|---|
| Chassis Designation | Cargo truck chassis |
| Chassis Brand | HOWO |
| Chassis Manufacturer | Sinotruk Jinan Truck Co., Ltd. |
| Axles / Tyres | 3 axles / 10 tyres |
| Wheelbase (as announced) | 5,800+1,350 mm |
| Wheelbase (chassis options) | 3,200+1,350 / 3,175+1,400 / 3,800+1,350 / 3,775+1,400 / 4,100+1,350 / 4,075+1,400 / 4,300+1,350 / 4,275+1,400 / 4,600+1,350 / 4,575+1,400 / 4,900+1,350 / 4,875+1,400 / 5,200+1,350 / 5,175+1,400 / 5,740+1,470 / 5,775+1,400 / 5,800+1,350 / 5,800+1,470 mm |
| Tyre Size | 315/80R22.5 16PR、295/80R22.5、12R22.5、12.00R20 16PR、11.00R20、315/60R22.5 20PR、295/80R22.5 18R、12R22.5 18PR、11.00R20 18PR |
| Leaf Spring Count | 11/12、11/10、10/12、4/12、4/5、3/10、3/4、2/4、4/-、3/-、2/-、4/-/-、3/-/-、2/-/- |
| Front / Rear Track | 2,015 / 2,035 / 2,060 mm；1,830/1,830、1,850/1,850、1,870/1,870 mm |
| Fuel Type | Diesel |
| Emission Standard Basis | GB17691-2018 China VI |
Engine
| Optional Engines (11 models) | Weichai WP8.350E61, WP10H400E62, WP7H270E62, WP7H300E62, WP7H320E62；Sinotruk MC11.40-61, MC11H.40-61, MC07H.31-61, MC07H.35-61, MC07H.35P-61, MC07.29-61 |
|---|---|
| Restricted Configuration | WP8.350E61 only |
| Displacement Range | 6,800 ～ 11,050 ml |
| Max. Power Range | 199 ～ 297 kW |
| Fuel / Emission | Diesel, China VI |
Note: Data shown is taken from the published vehicle announcement for this model. Configuration varies by order; the specification sheet issued with the quotation prevails.
